• Model NO.：H1E
• Import & Export Mode：Have Own Export License
• Average Lead Time：1-3 Months
• Part Number：3532208
• Transport Package：Plastic Box,Carton Box
• Specification：As Customer Required
• Trademark：As Customer Required
• Origin：China
• HS Code：8414803090
• Production Capacity：100000

Basic Info.

Model NO. H1E Import & Export Mode Have Own Export License Average Lead Time 1-3 Months Part Number 3532208 Transport Package Plastic Box/Carton Box Specification As Customer Required Trademark As Customer Required Origin China HS Code 8414803090 Production Capacity 100000

Product Description

Material:	Turbine Material:K18 Ni-Base Superalloy Turbine Housing:Iron+ Ni+Mo Compressor Housing Material:Cast Aluminium Shaft Material:42CrMo4
Condition:	Brand New
Packing	1.Neutral Strong carton with foams             2.Customized box
Lead time:	7-25days
Sample or small order	Accepted
Country of origin	People's Republic of China



Part Number	3532208
OE number	3530743, 3802304
Year	1991-10
Description	Marine, Various
Manufacturer Part Number	3530737, 3802304, 3531035
CHRA	3545696 (3545696H)

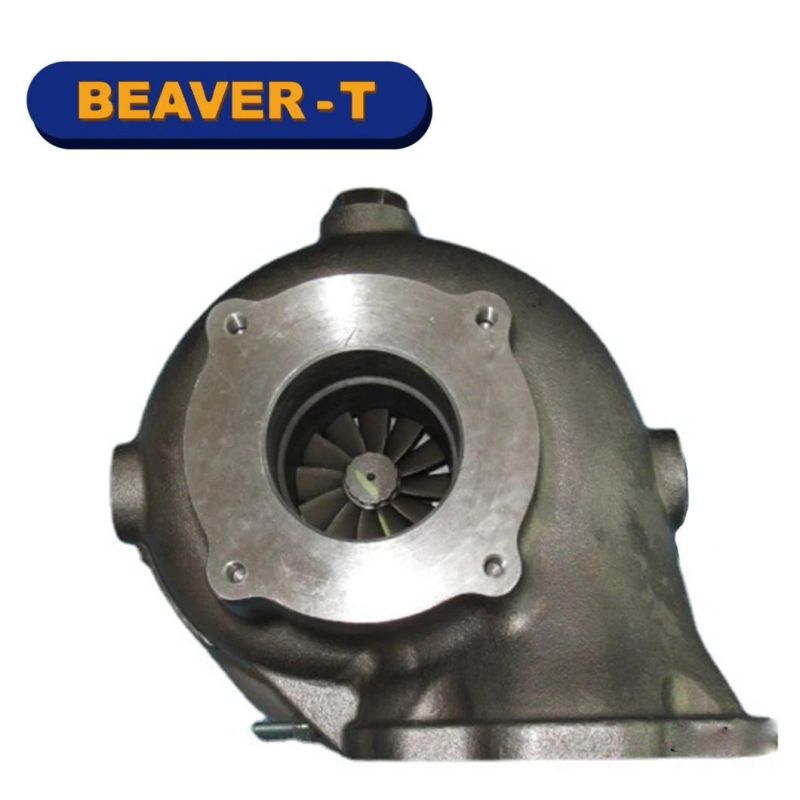

Turbo Model	H1E, H1E-8274AE/J16S3
Engine	4BTA, 4BTAM, 6BTAM
Fuel	Diesel
Displacement	3.9L, 3900 ccm
Angle α (compressor housing)	241°
Angle β (turbine housing)	301°
Bearing Housing	3530591 (3500591, 3500592, 3530592)(Oil Cooled)(1152301450)
Turbine Wheel	3525687 (3536624)(Ind. 75. mm, Exd. 62. mm, 12 Blades)
Comp. Wheel	3599644 (Ind. 55.98 mm, Exd. 81.78 mm, Trm 6.37, 8+8 Blades, Superback)
Back plate	3522801 (167543)
Heat Shield	3519302 (3519304, 167550)(1152301340)
Repair Kit	3545652 (4027309)(3802148, 318393)(1152301750)
Turbine Housing	Water Cooled
Gasket (turbine inlet)	210849 (3921926, 3916300, 3905033)(Stainless Steel)(Marine)
Gasket oil inlet	210850 (392196100)(Inox Steel)
Gasket (oil outlet)	210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
