• Model NO.：S2A
• Import & Export Mode：Have Own Export License
• Average Lead Time：1-3 Months

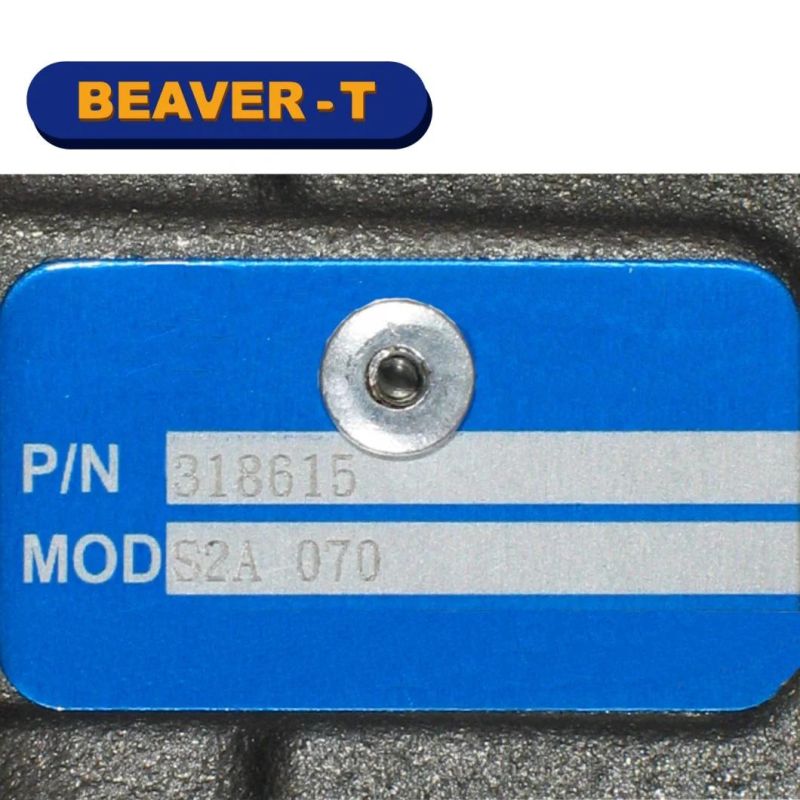

• Part Number：318615
• Transport Package：Plastic Box,Carton Box
• Specification：As Customer Required
• Trademark：As Customer Required
• Origin：China
• HS Code：8414803090
• Production Capacity：100000

Basic Info.

Model NO. S2A Import & Export Mode Have Own Export License Average Lead Time 1-3 Months Part Number 318615 Transport Package Plastic Box/Carton Box Specification As Customer Required Trademark As Customer Required Origin China HS Code 8414803090 Production Capacity 100000

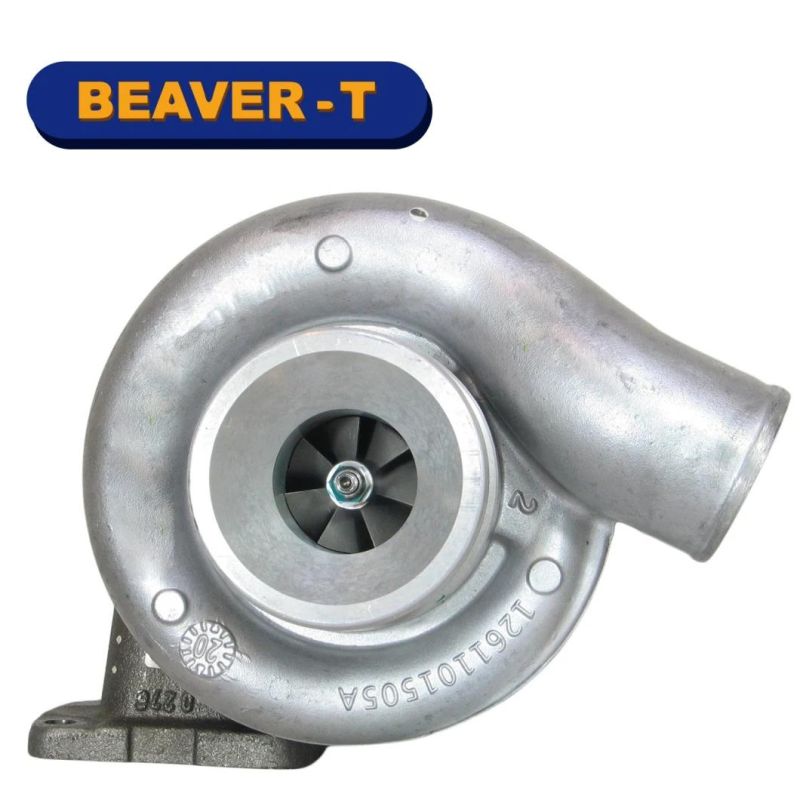

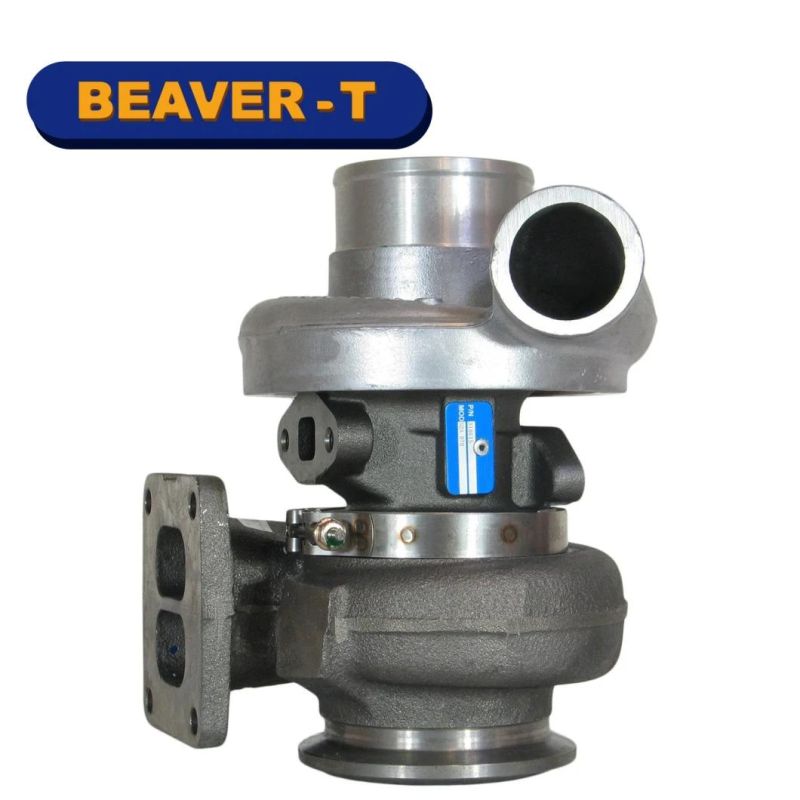

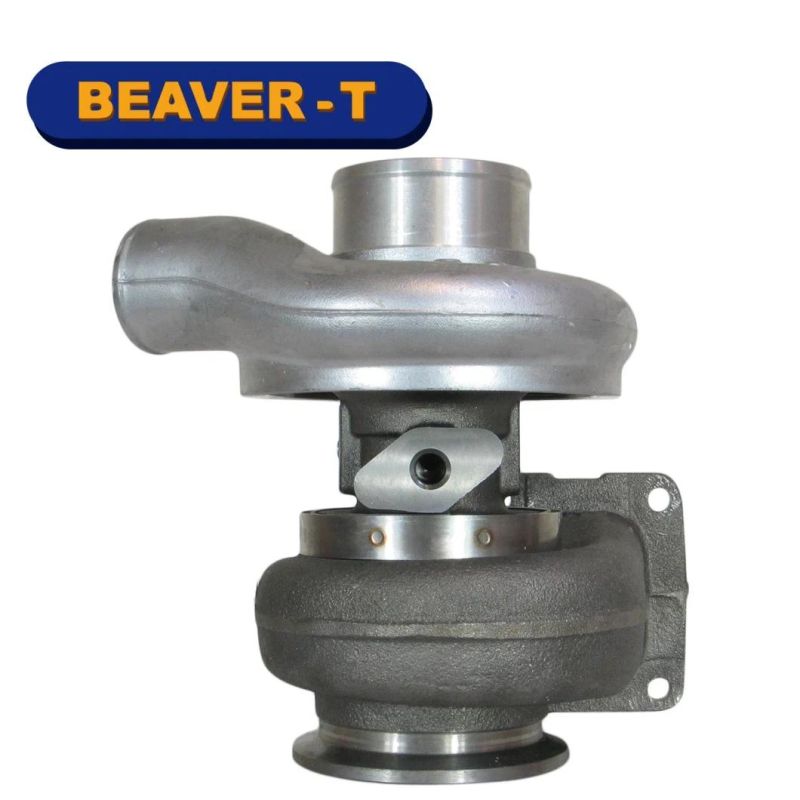

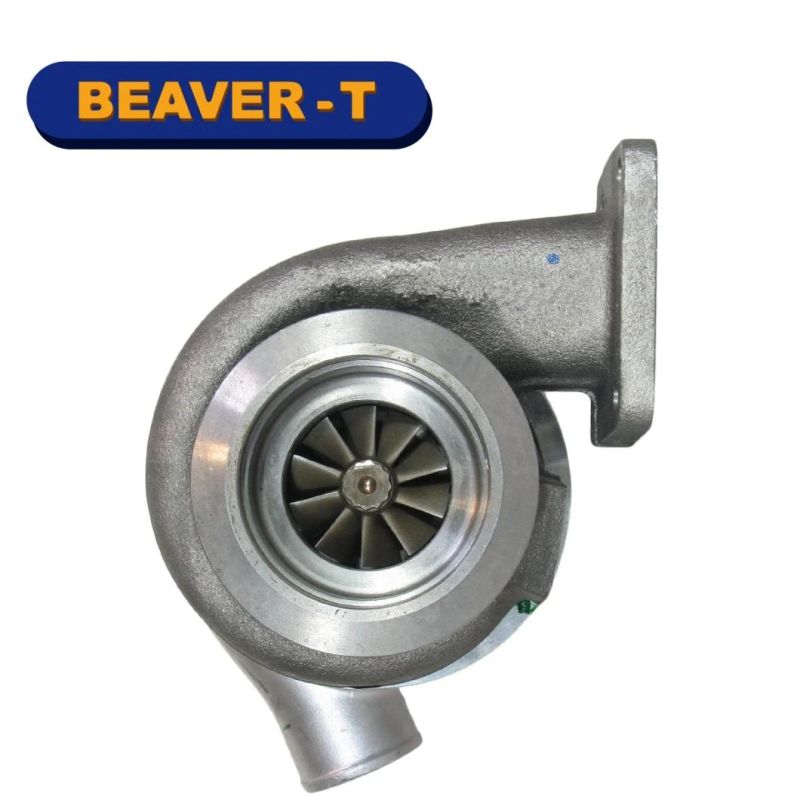

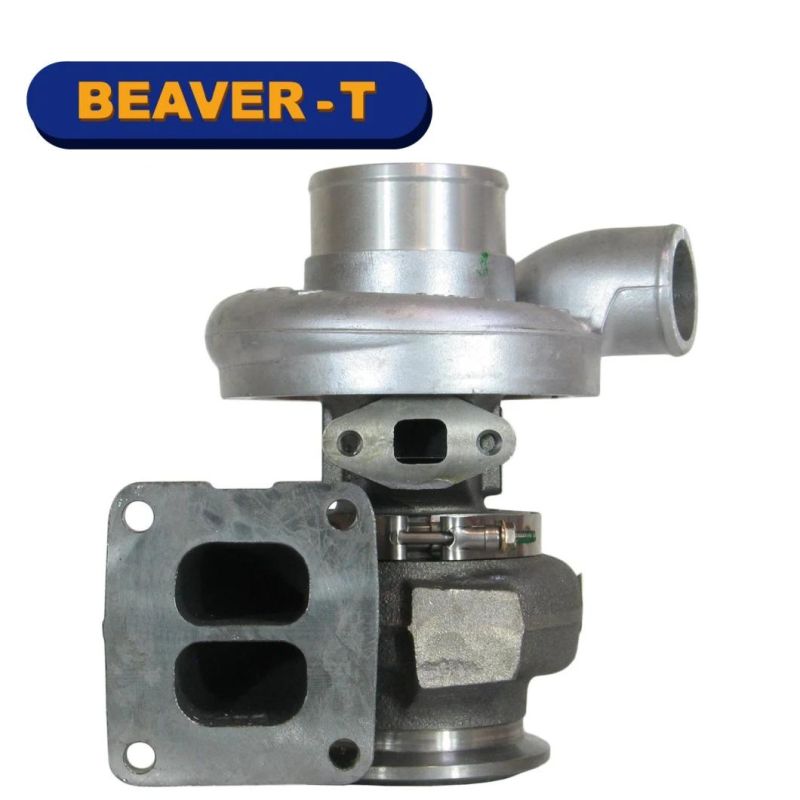

Product Description

Material:	Turbine Material:K18 Ni-Base Superalloy Turbine Housing:Iron+ Ni+Mo Compressor Housing Material:Cast Aluminium Shaft Material:42CrMo4
Condition:	Brand New
Packing	1.Neutral Strong carton with foams             2.Customized box
Lead time:	7-25days
Sample or small order	Accepted
Country of origin	People's Republic of China

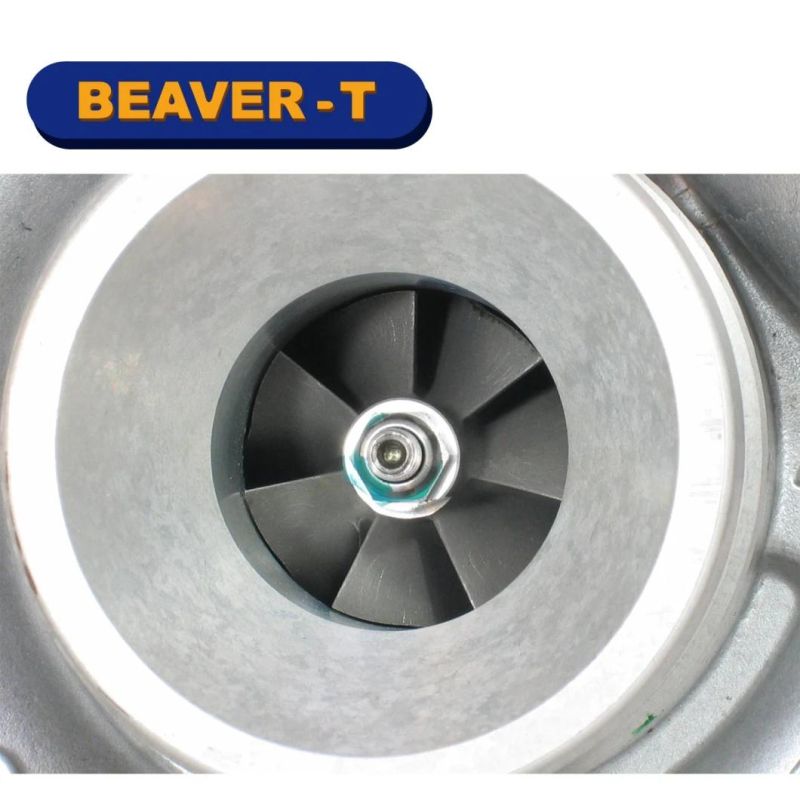

  Fits the following: Part Number: 318615 Interchangeable Number: 174735, 318570, 318614, 3990015011, 3990023112, 418570, 471049-0001, 471049-5001, 471049-5001S, 471049-0002, 471049-5002, 471049-5002S, 471049-0003, 471049-5003, 471049-5003S, 471049-0004, 471049-5004, 471049-5004S, 471049-0006, 471049-5006, 471049-5006S, 471049-0008, 471049-5008, 471049-5008S OEM Number: RE503097, RE508876, RE508877, RE508971, RE508973, RE509818, RE523366, RE526420, RE528772, RE529469, RE531983, RE532282, RE532290, RE533436, RE533442, RE536407, RE537049, RE537183, RE59379, RE59997, RE59999, RE60046, RE60069, RE60076, RE67647, RE70995 Turbo Model: S2A, S2A090  Year: 2000-12 Engine: 4045, 4045T Displacement: 4.5L, 4500 ccm Fuel: Diesel Power: 83 kW/112 HP, 86 kW/115 HP, 102 kW/137 HP Speed: 1500/2500 RPM Angle α (Compressor Housing): 24° Angle ß (Turbine Housing): 0° Back Plate: 197340 (408045-0041) Bearing Housing: 318609 CHRA: 318613 Compressor Cover: 317367 Compressor Wheel: 197611 (409096-0008)(Ind. 38.1 mm, Exd. 60.95 mm, Trim 8.48, 6+6 Blades, Billet) Gasket (Oil Outlet): 210021 (148062, 210021-0000, 311496, 3519807, 409037-0000, 413671-0000)(1900000027) Gasket (Turbine Inlet): 407294-0001 (310694, 312617)(303031063) Gasket Kit: 318418 Heat Shield: 193975 (49168-18900, 193975)(1352346) Repair Kit: 318477 (1252102750) Turbine Housing: 318567 Turbine Wheel: 314653 (Ind. 52.8 mm, Exd. 61 mm, 10 Blades)(301030001, 1228000015)  Application: 2000-12 John Deere Industrial, Gen Set with 4045, 4045T Engine
