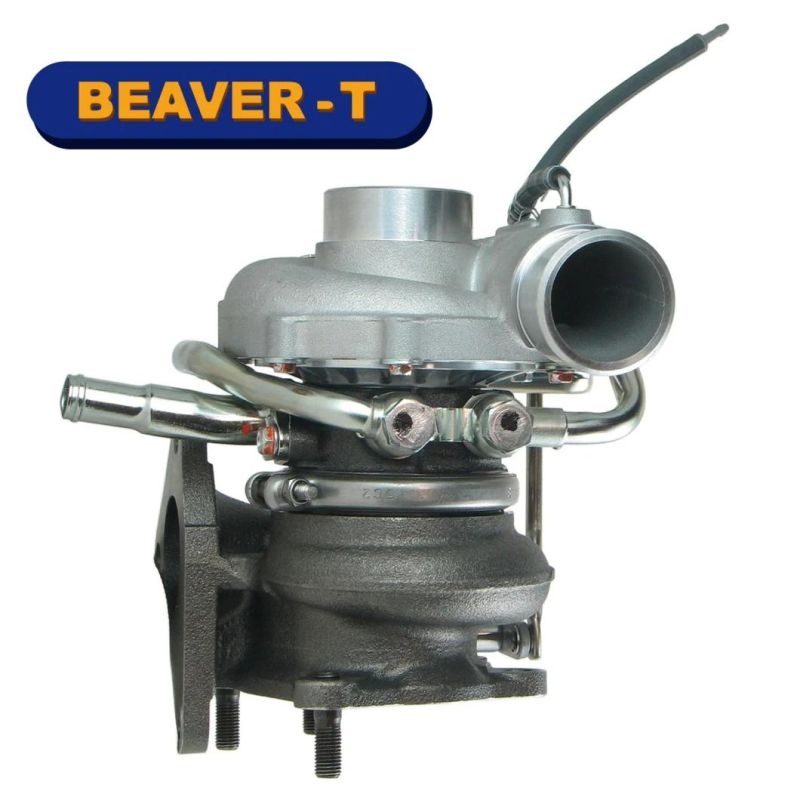

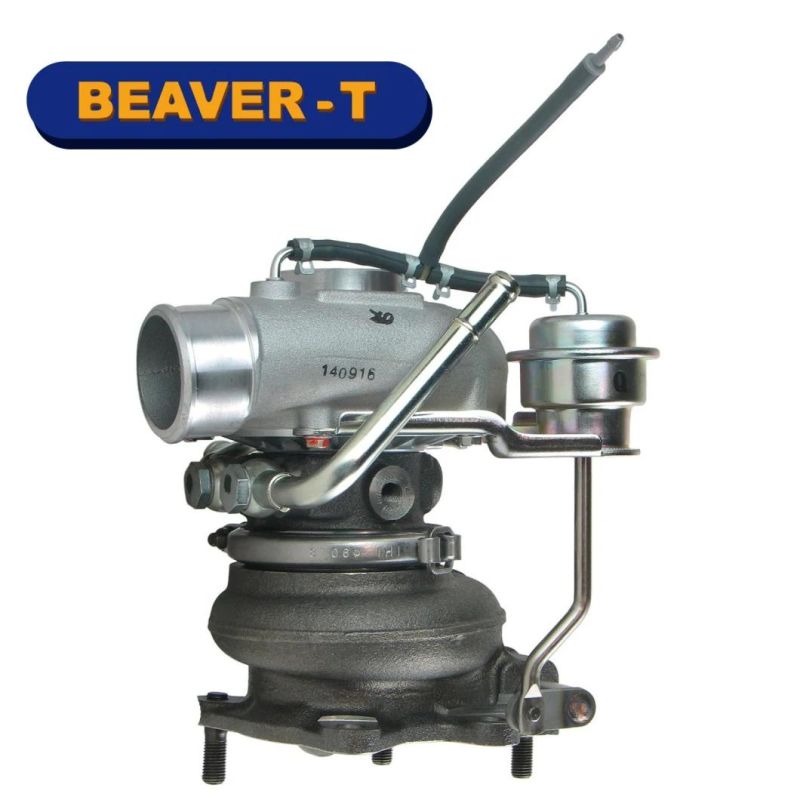

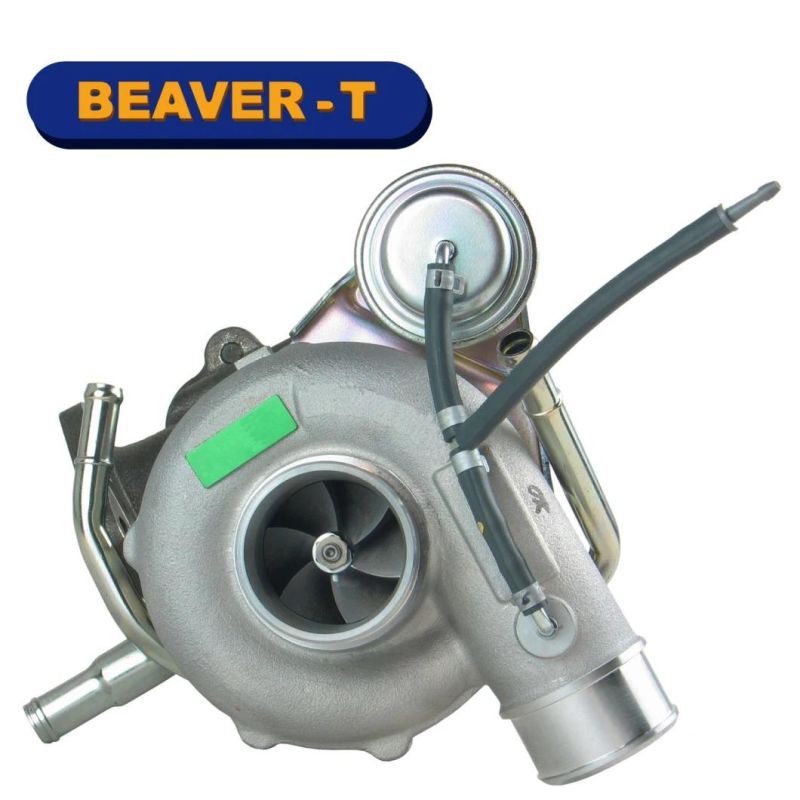

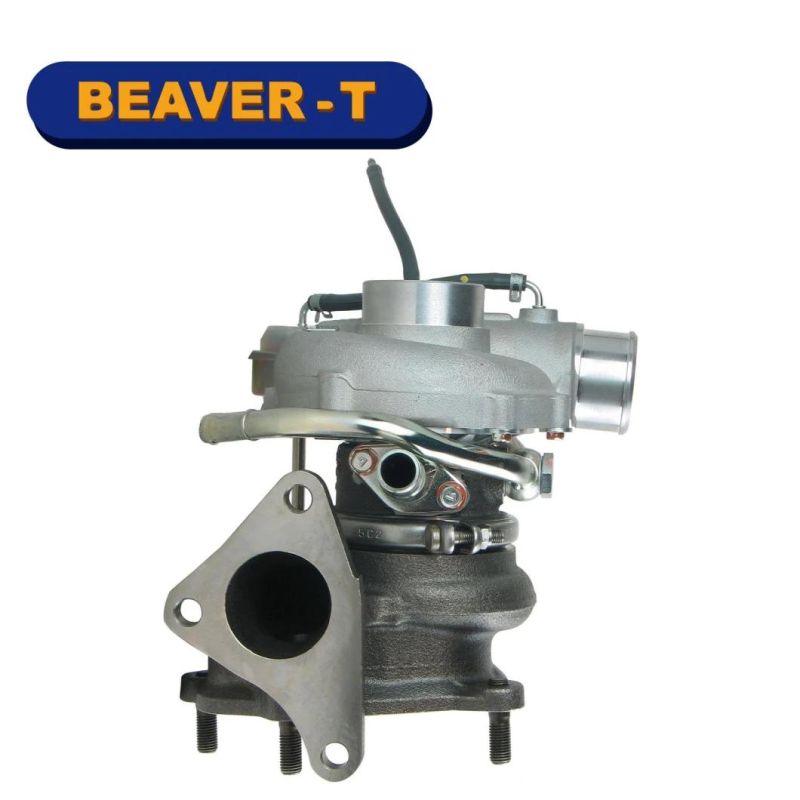

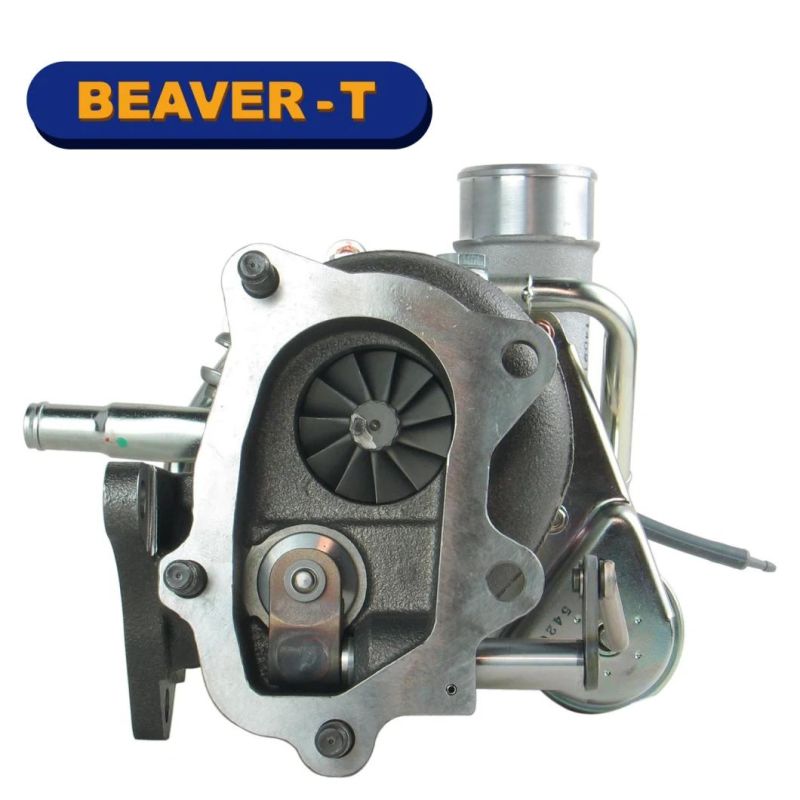

New Rhf55 Turbocharger for Subaru Impreza Wrx Sti Dohc 2.5L Ve440028 Vf39
Shenzhen Beaver Trip Ltd.- Type：ETS Exhaust-Gas-Turbo-Super-Charger
- Body Material：Alloy
- Certification：TS16949, ISO9001, CE, E-Mark
- Electric Turbocharger Type：Axialflow
- ETS Component：Turbine
- ETS Type：Runoff
Base Info
- Model NO.：RHF5
- Import & Export Mode：Have Own Export License
- Average Lead Time：1-3 Months
- Part Number：172743
- Transport Package：Plastic Box,Carton Box
- Specification：As Customer Required
- Trademark：As Customer Required
- Origin：China
- HS Code：8414803090
- Production Capacity：100000
Description
Basic Info.
Model NO. RHF5 Import & Export Mode Have Own Export License Average Lead Time 1-3 Months Part Number 172743 Transport Package Plastic Box/Carton Box Specification As Customer Required Trademark As Customer Required Origin China HS Code 8414803090 Production Capacity 100000Product Description
| Material: | Turbine Material:K18 Ni-Base Superalloy Turbine Housing:Iron+ Ni+Mo Compressor Housing Material:Cast Aluminium Shaft Material:42CrMo4 |
| Condition: | Brand New |
| Packing | 1.Neutral Strong carton with foams 2.Customized box |
| Lead time: | 7-25days |
| Sample or small order | Accepted |
| Country of origin | People's Republic of China |
BRAND NEW GENUINE IHI TURBOCHARGER
This is a BRAND NEW NON OEM TURBOCHARGER.
Fits the following:
Part Number: VE440028
Short Spec.: VF39
Interchangeable Number: F56CAD-S0028B, F56CAD-S0028G, VA440028, VB440028, VC440028, VD440028, VF440028 OEM Number: 14411AA572, 14411-AA572
Turbo Model: RHF55, RHF55-94001P18NR5BRL479CBZ
Year: 2004-07
Engine: EJ20, EJ20E, EJ20G Displacement: 2.5L, DOHC
Angle α (Compressor Housing): 180°
Angle ß (Turbine Housing): 90°
Back Plate: (1450055300, 1300016126)
Bearing Housing: (Oil & Water)(1450055460, 1900011272) CHRA: VF39CHRA
Compressor Wheel: (Ind. 46 mm, Exd. 60 mm, 6+6 Blades, Super Back)(1450055400, 1200016392) Gasket (Oil Inlet): 210553 (Paper)
Gasket (Turbine Inlet): 210809 (Inox Steel)
Gasket (Turbine Outlet): 210689 (Inox Steel)
Gasket Kit: (1900100277)
Heat Shield: (1450050340, 2030016124)
Repair Kit: NH459801 (NZ852748, 2445094)(1450055753, 5000080052)
Turbine Housing A/R: 18
Turbine Wheel: (Ind. 53.3 mm, Exd. 48 mm, 11 Blades)(1450055435, 1100016284) Wastegate Type: Internal (Actuator Supplied)
Application:
2004-07 Subaru Impreza WRX STI with EJ20 Engine
*Important* Please use the above information to determine if the part(s) in this listing Et your vehicle. The most reliable way to make sure the model of turbo is Ending the part number from the nameplate of your old turbo.
This turbo is designed for stock use. Any high performance modiEcations may void your warranty.
