High Quantity Turbo Turbine Gt1749V 713672-0002 713672-5006s Engine Turbocharger for Audi A3

Refone Auto Power Co., Ltd.
  • Warranty：12 Months
  • Type：Turbocharger
  • Body Material：Iron
  • Certification：ISO9001
  • Electric Turbocharger Type：Axialflow
  • ETS Component：Turbine

Base Info

  • Model NO.：GT1749V
  • ETS Type：Runoff
  • Application：Audi
  • Part Number：713672-5006s
  • OE Number：038253019c, 038253019CV500, 03G253016n
  • Turbo Model：Gt1749V
  • Engine：Pd Ui Engine
  • Material：K18
  • Delivery Time：7 Days
  • Shipping：TNT,UPS,FedEx,DHL,by Air,by Sea
  • Balancing：High Speed Balancing Tested
  • Aftre-Sale Service：Take Photos, Sending Back for Testing
  • Transport Package：Mold Foam. Plastic Bag. Strong Canton and Pallet
  • Specification：ISO9001
  • Trademark：refone
  • Origin：China
  • HS Code：8414803000
  • Production Capacity：10000 Piece,Pieces , Year

Description

Basic Info.

Model NO. GT1749V ETS Type Runoff Application Audi Part Number 713672-5006s OE Number 038253019c, 038253019CV500, 03G253016n Turbo Model Gt1749V Engine Pd Ui Engine Material K18 Delivery Time 7 Days Shipping TNT/UPS/FedEx/DHL/by Air/by Sea Balancing High Speed Balancing Tested Aftre-Sale Service Take Photos, Sending Back for Testing Transport Package Mold Foam. Plastic Bag. Strong Canton and Pallet Specification ISO9001 Trademark refone Origin China HS Code 8414803000 Production Capacity 10000 Piece/Pieces / Year

Product Description

igh Quantity Turbo Turbine Gt1749V 713672-0002 713672-5006s Engine Turbocharger for Audi A3

Product Details
Part Number713672-5006S
Previous Version713672-0002, 713672-0003, 713672-0004, 713672-0005, 713672-5005S
OE number038253019C, 038253019CV500, 03G253016N, 038253019CV225
Year2000-06
Descriptionfor Audi A3, Seat Leon, Volkswagen Beetle, Golf IV
CHRA433395-0020 (433395-5020S, 433395-0040)
Turbo ModelGT1749V(S1)
EnginePD UI, ALH, AHF, AJM, AUY
Engine ManufacturerVW
Displacement1.9L, 1896 ccm, 4 CYL
KW81/85
RPM Max4000
Angle α (compressor housing)177
Angle β (turbine housing)90
Bearing Housing433145-0005/722282-0002
Turbine Wheel434533-0002/434533-0039
Comp. Wheel434812-0001/434812-0002
Back plate700593-0006
Heat Shield433112-0001
Thrust Kit732248-0003/732252-0001
Service Kit, Major732248-003/732245-0001
Turbine Housing ARVNT1
Actuator434855-0015
Settings Waste gate adjustment (pressure)0.224-0.229 bar
Settings Waste gate (lift shaft)0.5-4.0 mm
Gasket exhaust manifold210664
Gasket (turbine outlet)210311
Gasket (oil outlet)210243
Gasket actuator EGR210313

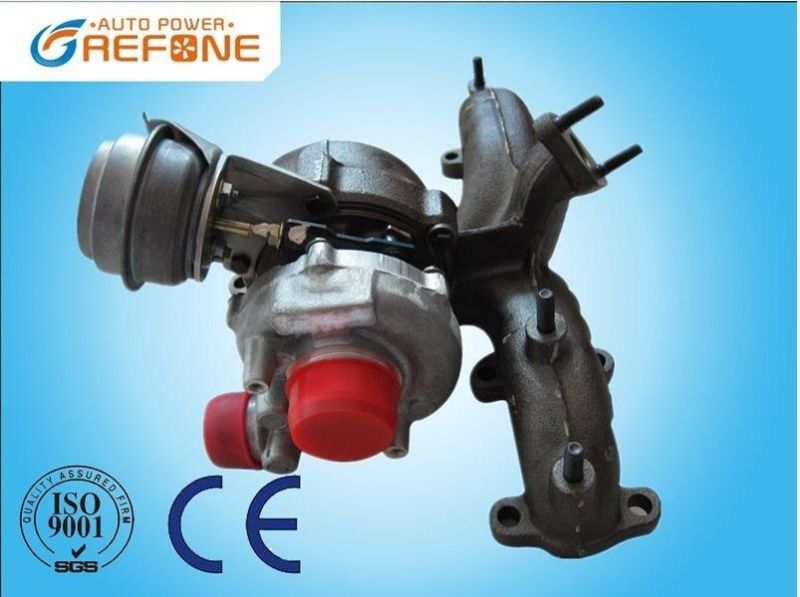

Display of Turbocharger

High Quantity Turbo Turbine Gt1749V 713672-0002 713672-5006s Engine Turbocharger for Audi A3
Application

00-06 for Audi A3 TDI with PD UI Engine

00-06 for Seat Leon TDI S with PD UI Engine

00-06 for Volkswagen Golf TDI with PD UI Engine

1996-2003 for Audi A3 1.9 TDI (8L) Engine ALH, AHF

1997-2001 for Audi A3 1.9 TDI (8L) Engine ALH, AHF

1999-2005 for Seat Leon 1.9 TDI Engine ALH, AHF

1999-2003 for Seat Toledo II 1.9 TDI Engine ALH

1999-2004 for Seat Toledo II 1.9 TDI Engine AHF

1997-2007 for Skoda Octavia I 1.9 TDI Engine ALH, AHF

1998-2004 for Volkswagen Beetle 1.9 TDI Engine ALH, AHF, AJM, AUY

1998-2004 for Volkswagen Bora 1.9 TDI Engine LH, AHF, AJM, AUY

1997-2003 for Volkswagen Golf IV 1.9 TDI Engine ALH, AHF

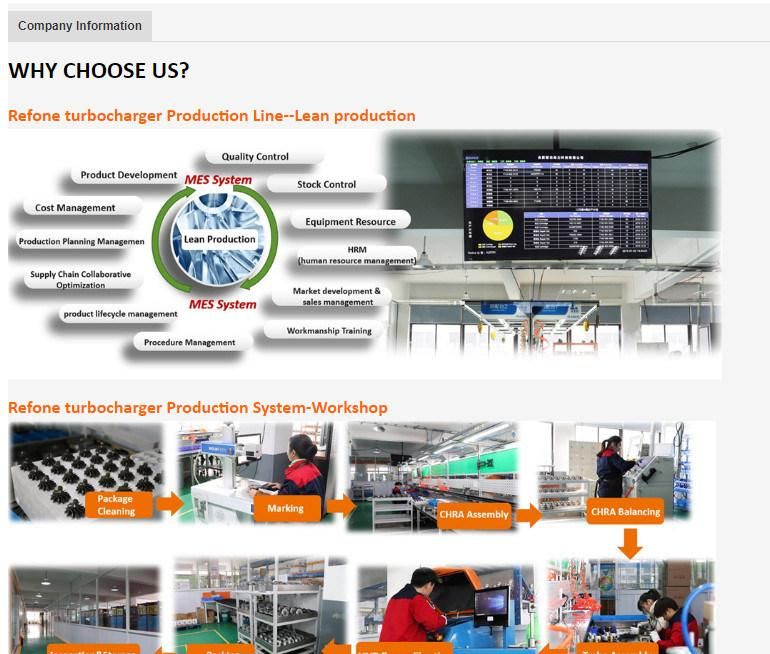

Factory & Team
High Quantity Turbo Turbine Gt1749V 713672-0002 713672-5006s Engine Turbocharger for Audi A3


 Features
*High speed VSR well balanced chra
* 1 year  unlimited mileage warranty
* REFONE package or customer's package available
* Technology support for any after-service
* Customized upgrading service acceptable


Company Imformation
Refone has a wide variety of turbocharger products line which covers not only for passenger cars and trucks, commercial vehicles and Heavy-duty trucks but also for heavy equipment and racing or performance cars.
