• Model NO.：MHS
• Automobile Chassis Noise：The Brake Noise
• Component：Catalytic Converter
• Main Market：North America
• Material：SS304, SS316
• Common Specification：Diameter<120mm,Diameter<200mm, etc
• Application：as Catalyst Used in Automobile,Motorcycle
• Cell：100-600cpsi
• Thickness(mm)：0.04-0.1
• Width(mm)：10-250
• Max Working Temperature：1100°c
• Max Service Temperature：1250°c
• Transport Package：Wooden Box and Pallet,Packed as Customers′ Need
• Specification：all size
• Trademark：DXY
• Origin：China
• HS Code：84213930
• Production Capacity：100, 000pieces,Month

Basic Info.

Model NO. MHS Automobile Chassis Noise The Brake Noise Component Catalytic Converter Main Market North America Material SS304, SS316 Common Specification Diameter<120mm/Diameter<200mm, etc Application as Catalyst Used in Automobile/Motorcycle Cell 100-600cpsi Thickness(mm) 0.04-0.1 Width(mm) 10-250 Max Working Temperature 1100°c Max Service Temperature 1250°c Transport Package Wooden Box and Pallet/Packed as Customers′ Need Specification all size Trademark DXY Origin China HS Code 84213930 Production Capacity 100, 000pieces/Month

Product Description

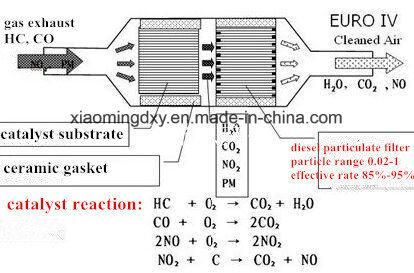

The catalytic converter is coated with rare earth element and noble metals of Pt, Pd, Rh. When the engine exhaust passing through the three-way catalytic converter the elements of CO would be oxidized into CO2, the HC is turned into H2O and CO2, while the NOX is deoxidized into nitrogen. The catalytic converter substrate is made of metal honeycomb with stainless steel crust and Fe-Cr-Al honeycomb body, it is a critical part of motorcycles and off-road engines to make the exhaust emission meet government standard.

Metallic substrate is with the advantages of fast burning, small volume, high mechanical strength, prominent heat-resistance, etc. It is widely used in exhaust gas purification, especially for motorbike. Firstly metallic substrate should be pretreated in order to generate a transition layer which is required to solve the mismatched heat expansion between metallic substrate itself and the active layer. On the transition layer, it is coated with rare earth catalyst, while in active layer is coated with noble metal like Pt, Pd, Rh.

Major technical parameters:
Substrate: Metal honeycomb substrate (Fe-Cr-Al alloy)
Light-off temperature: CO≤ 200° C, HC≤ 200° C, NOX≤ 200° C
Coating losing rate ≤ 3%
Conversion rate: CO≥ 90%, HC≥ 90%, NOX≥ 80%
Durability: Not less than 15000 kilometers


Features:
*Low thermal expansion
*High surface area
*Long-term durability performance
*Low pressure drop
*Good thermal shock resistance
*Combined with the EGR systems to help different vehicles to satisfy emission standard
*Low light-off temperature
*Excellent adhesion between wash-coat and susbstrate with netty structure

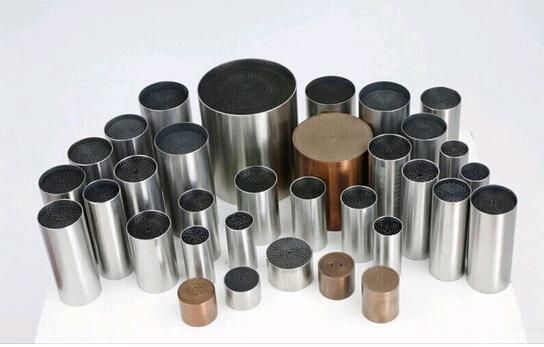

Shape	Shell size(mm)	Core size(mm)	Cell density (CPSI)
Rotundity	Φ 30×22	Φ 28×20	100/200/300/400
Rotundity	Φ 35×20	Φ 33×20	100/200/300/400
Rotundity	Φ 35×30	Φ 33×30	100/200/300/400
Rotundity	Φ 35×40	Φ 33×40	100/200/300/400
Rotundity	Φ 35×50	Φ 33×50	100/200/300/400
Rotundity	Φ 35×60	Φ 33×60	100/200/300/400
Rotundity	Φ35 × 70/100/130	Φ33 × 60/90/120	100/200/300/400
Rotundity	Φ42 × 70/100/130	Φ40 × 60/90/120	100/200/300/400
Rotundity	Φ45 × 70/100/130	Φ43 × 60/90/120	100/200/300/400
Rotundity	Φ63,5 × 85/100/130	Φ60,5 × 74,5/90/120	200/300/400
Rotundity	Φ73 × 70/100/130 L	Φ70 × 60/90/120	200/300/400
Rotundity	Φ93 × 70/100/130	Φ90 × 60/90/120	200/300/400
Rotundity	Φ100,3 × 100/130	Φ98,3 × 90/120	600
Rotundity	Φ144 × 150/152,4	Φ142 × 140/142,4	200/300/400
Rotundity	Φ190 × 200	Φ188 × 190	200/300/400
Rotundity	Φ420 × 100/130	Φ416 × 90/120	300/400
Race track	123×63×85	120×60×75	200/300
Race track	123×63×100	120×60×90	200/300
Race track	78,5×52×104	76,5×50×90	200/300
