Hx30 3592102 6732-81-8100 Turbo for Komatsu 4bt-110 Engine

Guangzhou Junfeng Auto Parts Co., Ltd.
  • Car Model：Komatsu PC128us-2
  • Engine Type：4bt
  • Type：Mechanical Turbocharger System
  • Body Material：Iron
  • Electric Turbocharger Type：Axialflow
  • ETS Component：Turbine

Base Info

  • Model NO.：HX30
  • ETS Type：Axialflow
  • Application：Nissan
  • Brand：Boosiwheel
  • OEM：6732-81-8101, 6732-81-8501
  • Part Number：3592103, 3592104, 3537010, 3537011
  • Previous Part Number：3539701, 3539703, 3539702
  • OE Number：6732-81-8500, 3802749, 3804878
  • Chra：3593410 (4032115, 4032374, 3580234)
  • Turbo Model：Hx30-Q6819A,B08jx33, Hx30
  • Transport Package：Neutral Carton
  • Specification：10KG
  • Trademark：booshiwheel
  • Origin：Jiangsu
  • HS Code：8414803090
  • Production Capacity：50000PCS,Year

Description

Basic Info.

Model NO. HX30 ETS Type Axialflow Application Nissan Brand Boosiwheel OEM 6732-81-8101, 6732-81-8501 Part Number 3592103, 3592104, 3537010, 3537011 Previous Part Number 3539701, 3539703, 3539702 OE Number 6732-81-8500, 3802749, 3804878 Chra 3593410 (4032115, 4032374, 3580234) Turbo Model Hx30-Q6819A/B08jx33, Hx30 Transport Package Neutral Carton Specification 10KG Trademark booshiwheel Origin Jiangsu HS Code 8414803090 Production Capacity 50000PCS/Year

Product Description

Product Descrition

Part Number3592102
Previous Part Number3592103, 3592104, 3537010, 3537011, 3537012, 3539701, 3539703, 3539702, 3539703
OE number6732-81-8101, 6732-81-8501, 6732-81-8100, 6732-81-8500, 3802749, 3804878
Year1995-00
DescriptionKomatsu PC128US-2, PC120, D31, D37, PC100, PC120, PC100 Various
Manufacturer Part Number3592104, 3592103
CHRA3593410 (4032115, 4032374, 3580234) $395.00 NEW IN STOCK, MADE IN USA
Turbo ModelHX30-Q6819A/B08JX33, HX30
Engine4BT-110
Engine ManufacturerKomatsu
KW110
FuelDiesel
Angle α (compressor housing)340°
Angle β (turbine housing)20°
Bearing Housing3539227/4030799 $99.37 NEW IN STOCK
Turbine Wheel3539805 (Ind. 40.1 mm, Exd. 67.97 mm, 12 Blades)(1153035436) $149.00 NEW IN STOCK
Comp. Wheel3599693 (Ind. 65 mm, Exd. 52 mm, Trm 5.01, 6+6 Blades) $59.00 NEW IN STOCK
Back plate3530923 (1154351300) $33.48 NEW IN STOCK
Heat shield Number3519304 (3519302)(1152301340) $24.95 NEW IN STOCK
Repair Kit3575205 (3575205)(1153030750) $32.80 NEW IN STOCK
Turbine Housing3536890
Compressor Cover3539806
Gasket (turbine inlet)409039-0000 (Inox Steel)(409039-0001, 210019, 2405022)(1900000006) $13.52
Gasket (oil outlet)210060 (311585, 148062, 2475013)(Paper) $4.48
ManufacturerHOLSET


Applications

1995-00 Komatsu Various with 4BT-110 Engine

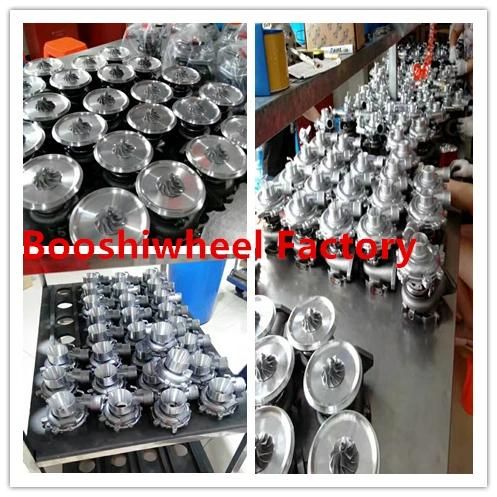

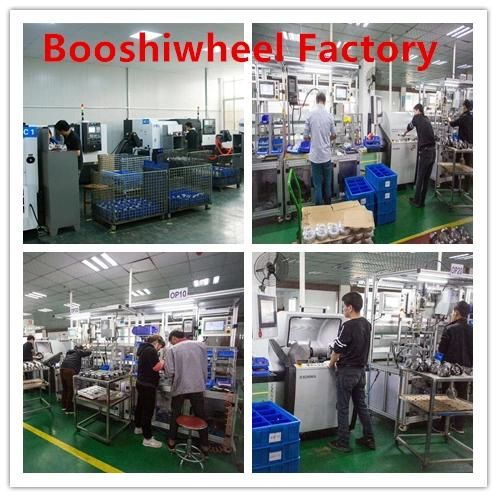

Booshiwheel Factory
Hx30 3592102 6732-81-8100 Turbo for Komatsu 4bt-110 Engine
Hx30 3592102 6732-81-8100 Turbo for Komatsu 4bt-110 Engine

  •
