Garrett Turbo 871388-5002s G25-660 ceramic Dual Ball Bearing
Guangzhou Junfeng Auto Parts Co., Ltd.- Car Model：Performance,Custom
- Engine Type：Racing Engins
- Type：Mechanical Turbocharger System
- Body Material：Steel
- Electric Turbocharger Type：Axialflow
- ETS Component：Turbine
Base Info
- Model NO.：G25-660
- ETS Type：Axialflow
- Application：Racing Cars
- Brand：Boosiwheel
- Displacement：1.4L - 3.0L
- Previous Versions：871388-0002
- Material：High Quality Stainless Steel
- Power：350 - 660HP
- Turbine Housing：Stainless Steel 0.72ar V-Band
- Compressor Wheel：Billet Wheel
- Compressor Housing Ar：.63 a,R
- Transport Package：Neutral Carton
- Specification：8KG
- Trademark：booshiwheel
- Origin：Jiangsu
- HS Code：8414803090
- Production Capacity：50000PCS,Year
Description
Brand new
Features:
- GARRETT® G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
- FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
- NEW TURBINE WHEEL AERO CONSTRUCTED OF MAR-M ALLOY RATED FOR 1055°C
- STAINLESS STEEL WASTEGATED AND NON WASTEGATED TURBINE HOUSING OPTION CAPABLE OF 1050°C
- OIL RESTRICTOR AND WATER FITTINGS INCLUDED
Compressor Wheel Inducer: 48mm
Compressor Wheel Exducer: 60mm
Compressor Wheel Trim: 54
Compressor Housing Inlet: 3 Inch Diameter
Compressor Housing Outlet: 2 Inch Diameter
Compressor Housing A/R: .70
Turbine Wheel Inducer: 54mm
Turbine Wheel Exducer: 49mm
Turbine Wheel Trim: 84
Turbine Housing Inlet: 3 Inch O.D. V-Band
Turbine Housing Outlet: 3.55 inch O.D. V-Band
Includes Oil Feed (1mm) Restrictor Fitting to -4AN
Includes two Coolant Fittings to -6AN
Alternate Garrett Product Code(s): 858161-5002S; 740902-0069

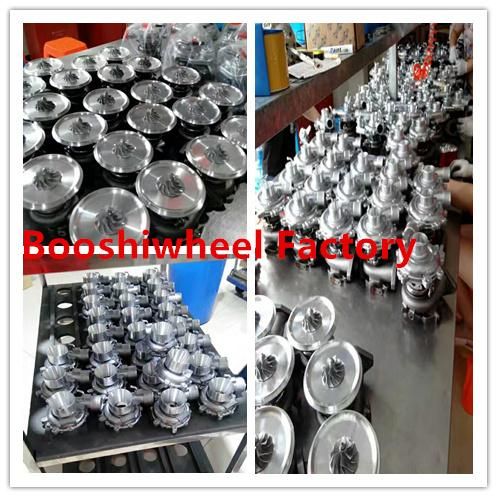

Booshiwheel Factory
