K33 53339886422 0060961099 Turbo for Mtu Industrial Locomotive

Guangzhou Junfeng Auto Parts Co., Ltd.
  • Car Model：Gen Set
  • Engine Type：12V183td13
  • Type：Mechanical Turbocharger System
  • Body Material：Steel
  • Electric Turbocharger Type：Axialflow
  • ETS Component：Turbine

Base Info

  • Model NO.：53339886422
  • ETS Type：Axialflow
  • Application：Mtu Industrial Locomotive
  • Brand：Boosiwheel
  • Displacement：21.96L, 21960 CCM
  • Previous Versions：53339886423, 53339886424 60961099
  • Part Number：53339706422, 5333-970-6422, 5333 970 6422
  • Turbo Model：K33.2-4064mnaaa20.22gnayd, K33.2-4064mna20.22gnayd
  • OEM：0060960799, 0050965499, 0050965599, 50965499
  • OE Numbers：50965599, 60960799, 20207300 0020207300 0020207400
  • OE No：20207400, 60960899, 0060960899, 0060960999
  • Transport Package：Neutral Carton
  • Specification：10KG
  • Trademark：booshiwheel
  • Origin：Jiangsu
  • HS Code：8414803090
  • Production Capacity：50000PCS,Year

Description

Part Number53339886422Previous Part Number5333-988-6422, 5333 988 6422Comparison Part Number53339886423, 53339886424, 53339886425, 53339886426, 53339886427OE number0060960799, 0050965499, 0050965599, 50965499, 50965599, 60960799, 20207300, 0020207300, 0020207400, 20207400, 60960899, 0060960899, 0060960999, 60960999, 0060961099, 60961099, 0060961099DescriptionIndustrial Locomotive EngineManufacturer Part Number53339706422, 5333-970-6422, 5333 970 6422CHRA53337100026 (5333-710-0026) $814.70 Rebuilt IN STOCKTurbo ModelK33.2-4064MNAAA20.22GNAYD, K33.2-4064MNA20.22GNAYDEngine12V183TD13Displacement21.96L, 21960 ccmKW550/748FuelDieselEngine Speed2100Angle α (compressor housing)238.5°Angle β (turbine housing)0°Bearing Housing (water-cooled)53331500005/53331500011Turbine Wheel53331205004/53331202112Comp. Wheel53361232021 (Ind. 63.9 mm, Exd. 102. mm, Trm 4064, 7+7 Blades) (1301033400) $237.71 NEW IN STOCKBack plate53361515713/53361515710Heat shield Number53331652000 (Cast)(1301036340) NEW IN STOCKRepair Kit53337110006 (1301033750)(Small Brg) $156.31 NEW IN STOCKTurbine Housing53331016525Compressor Cover53361015206Turbine Housing AR20Gasket (oil inlet)52231586500 $8.40NOTEIntercooler

Applications

1993-07 MTU Industrial Locomotive with 12V183TD13 Engine

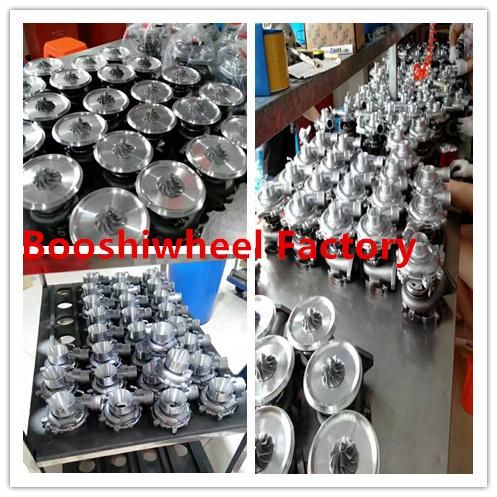

Booshiwheel Factory
