• Model NO.：MHS
• Automobile Chassis Noise：The Brake Noise
• Component：Catalytic Converter
• Main Market：Europe
• Material：SS304, SS316
• Application：as Catalyst Used in Automobile,Motorcycle
• Cell：100-600cpsi
• Thickness(mm)：0.04-0.1
• Width(mm)：10-250
• Max Working Temperature：1100°c
• Max Service Temperature：1250°c
• Transport Package：Wooden Box and Pallet,Packed as Customers′ Need
• Specification：Diameter<120mm,Diameter<200mm, etc
• Trademark：DXY
• Origin：China
• HS Code：84213990
• Production Capacity：100, 000pieces,Month

Basic Info.

Model NO. MHS Automobile Chassis Noise The Brake Noise Component Catalytic Converter Main Market Europe Material SS304, SS316 Application as Catalyst Used in Automobile/Motorcycle Cell 100-600cpsi Thickness(mm) 0.04-0.1 Width(mm) 10-250 Max Working Temperature 1100°c Max Service Temperature 1250°c Transport Package Wooden Box and Pallet/Packed as Customers′ Need Specification Diameter<120mm/Diameter<200mm, etc Trademark DXY Origin China HS Code 84213990 Production Capacity 100, 000pieces/Month

Product Description

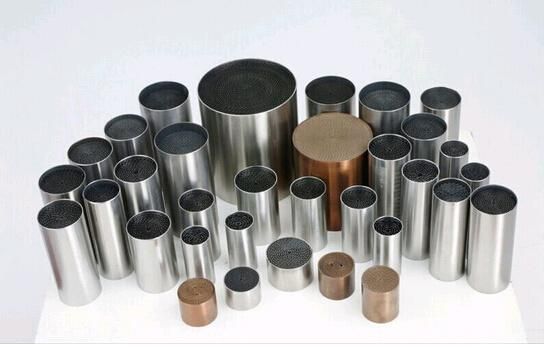

Metallic substrate has the advantages of fast burning, small volume, high mechanical strength, prominent heat-resistance, etc. It is widely used in exhaust gas purification equipment, especially sports car, motorbike, yacht etc. Metallic substrate should be pretreated to generate a transition layer which is to solve the mismatched heat expansion between metallic substrate itself and the active layer. On the transition layer, it is coated with the rare earth catalyst layer, while in active layer is coated with noble metal like Pt, Pd, Rh.

Advantage
*Fantastic coating fastness and stable and long-termed catalyst ability.
*Advanced technic of substrates making and canning, ensuring dependable resistance heat shocks and stability of equipment.

Specifications
*Energy efficiency and environmental protection
*Active ingredient, and long life
*Good endurance

Features:
*Stainless steel shell
*Foil material is OCr21Al6, foil thickness is 0.1mm
*Cell pieces per square inch: 100, 200, 300 and 400cpsi
*Shape and dimension is customized according to drawing provided

Standard of precious metal coating
1. EURO1 standard
2. EURO2 standard
3. EURO3 standard
4. EURO4 standard
5. We can provide the product with customers' formula.

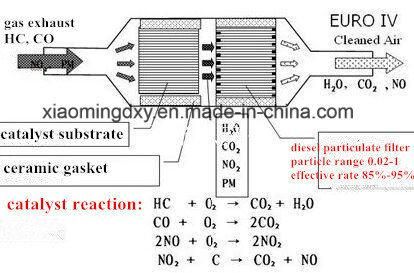

Applications: Transforms CO, HC and NOx to CO2, H2O and N2.
Chooses metal catalyst with suitable size, volume, precious metal content and ratio according to motorcycles' practical situation to satisfy certain emission rule.
We always choose metal honeycomb carrier with stainless steel crust and Fe-Cr-Al core made.
Shape: Columned
Dia.: 28~63.5mm
Height: 30~100mm

Light-off temperature	Durability	Conversion efficiency	Coating desquamate rate
T50(CO) ≤ 230   T50(HC) ≤ 260       T50(NOX) ≤ 250	1000KM	CO ≥ 85%       HC ≥ 80%     CO ≥ 85%	≤ 7%



Shape	Material	Diameter	Length	Channel       density(cpsi)	Precious metal
Cylinder	Fe/Cr/Al	20	20	100/200	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	20	80	100/200	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	30	100	100/200	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	28	60	100/200	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	28	100	100/200	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	35	30	100/200	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	35	40	100/200	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	35	60	100/200	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	35	70	100/200	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	35	100	100/200	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	38	100	100/200	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	42	100	100/200	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	48.6	70	100/200/300	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	63	50	100/200/300/400	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	101.6	100	200/300	Pd/Pt/Rh
Racetrack	Fe/Cr/Al	123	63	200/300	Pd/Pt/Rh
Racetrack	Fe/Cr/Al	78.5	52	200/300	Pd/Pt/Rh
