Auto Engine Structure

New Hx40W H351cw Turbo Billet Compressor Wheel Dodge RAM 5.9L Cummins Turbo Spare Part Turbocharger

Shenzhen Beaver Trip Ltd.
  • Type:ETS Exhaust-Gas-Turbo-Super-Charger
  • Body Material:Aluminium
  • Certification:TS16949, ISO9001, CE, E-Mark
  • Electric Turbocharger Type:Axialflow
  • ETS Component:Turbine
  • ETS Type:Runoff

Base Info

  • Model NO.:HX40W
  • Average Lead Time:1-3 Months
  • Import & Export Mode:Have Own Export License
  • Transport Package:Plastic Bag, Carton Box
  • Specification:As Customer Required
  • Trademark:As Customer Required
  • Origin:China
  • HS Code:8414803090
  • Production Capacity:100000

Description

Basic Info.

Model NO. HX40W Average Lead Time 1-3 Months Import & Export Mode Have Own Export License Transport Package Plastic Bag/ Carton Box Specification As Customer Required Trademark As Customer Required Origin China HS Code 8414803090 Production Capacity 100000

Product Description

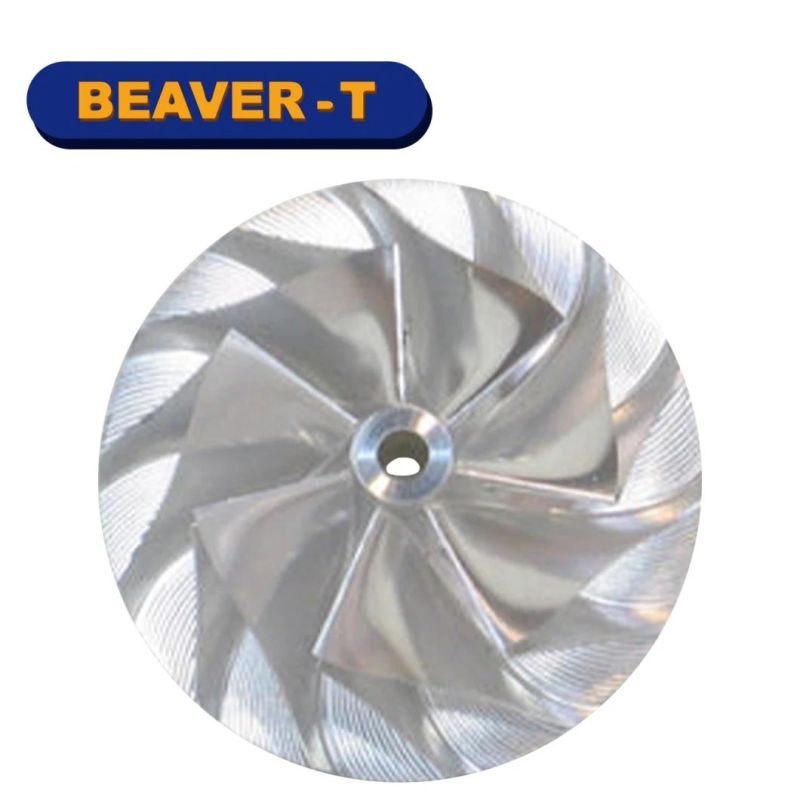

BRAND NEW TURBOCHARGER BILLET COMPRESSOR WHEEL

This is a BRAND NEW TURBOCHARGER BILLET COMPRESSOR WHEEL. This is an exact, direct Pt replacement turbo compressor wheel.

Fits the following:

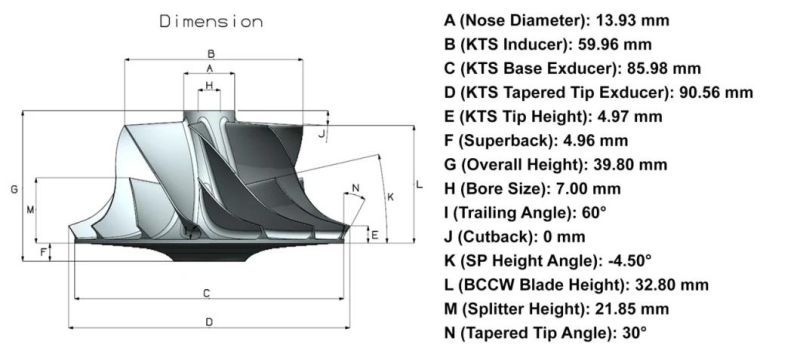

 Interchangeable Number: 4035879 Description: Billet Compressor Wheel

 Blades: 7+7
Nose Diameter: 13.93 mm
 Inducer: 59.96 mm
 Base Exducer: 85.98 mm
 Tapered Tip Exducer: 90.56 mm
Tip Height: 4.97 mm Superback: 4.96 mm
Overall Height: 39.80 mm
Bore Size: 7.00 mm
Trailing Angle: 60°
Cutback: 0.0 mm
Sp Height Angle: -4.50°
 Blade Height: 32.80 mm Splitter Height: 21.85 mm
Tapered Tip Angle: 30°

Racing or Non-Racing: NR
STD or Custom Size: STD
Bore Type: Through
OE or Custom Compressor House Fitment: OE Rotation: Forward

Fit for Turbo Part Numbers:
2834338, 2834342, 2836441, 2842449, 3772921, 3773210, 3777593, 3778132, 3780244, 3783602, 3783604, 3784580, 3788609, 3797491, 4031152, 4038003, 4040063, 4043600, 4044664, 4044672, 4046100, 4046105, 4046383, 4046498, 4047354, 4049364, 4049365, 4049366, 4049367, 4049368, 4049415, 4049417, 4049418, 4049419, 4049420, 4049421, 4049949, 4051033, 4051384, 4051430, 4051448, 4044664-D

Fit for OEM Numbers:
3597336, 4036835, 4037001, 4037002, 4038004, 4049358, 4089673, 4089797, 4089919, 4955195, 4955895, 4955909, 4956108, 20490975, 20933088, 20933089, 5143256AA, R5143256AA

Fit for Turbo Models:
HE351CW, HX40W, HX40W-B85J71GM/B76L84FJB19JD-, HY35W

Fit for Applications:
2004- Industrial with Cummins Pegasus QSL Diesel Engine
2003-07 Dodge Ram 3500 Series with 2WD Dually, 24 Valve Inter-cooled Turbo, 6 Speed Standard, 5.9L Cummins ISB Diesel Engine
2003-09 DCEC Truck with Cummins C300 20 Diesel Engine
2004- Truck with 8.3L Cummins 6CT Engine
2004.5-07 Dodge Truck, Pick-Up with 5.9L Cummins ISB, ISB5.9, ISB6 Diesel Engine 2004-08 Industrial with 8.3L Cummins Pegasus QSL Diesel Engine
2005- Dongfeng Truck with 8.9L Cummins L300 20, L325, L340, L360, 6LTAA Diesel Engine 2006-09 Volvo Bus, Truck with 9.0L D9 Euro 3 Diesel Engine
2006-11 Liebherr, Mobile Crane, Industrial with D936 Diesel Engine
2006-11 Volvo Industrial with D936, R944C Diesel Engine
2006-11 Volvo Truck with D9 Euro-3 Diesel Engine
2008- Komatsu Industrial, Truck with 8.9L Cummins Pegasus ISL Diesel Engine
2008- Truck with Cummins L360 DCEC, L325 20 Diesel Engine

*Important* Please use the above information to determine if the part(s) in this listing Lt your vehicle. The most reliable way to make sure the model of turbo is Lnding the part number from the nameplate of your old turbo.

Any questions or concerns, please feel free to email or call us.
