• Model NO.：H1C
• Average Lead Time：1-3 Months
• Import & Export Mode：Have Own Export License
• Transport Package：Plastic Bag, Carton Box
• Specification：As Customer Required
• Trademark：As Customer Required
• Origin：China
• HS Code：8414803090
• Production Capacity：100000

Basic Info.

Model NO. H1C Average Lead Time 1-3 Months Import & Export Mode Have Own Export License Transport Package Plastic Bag/ Carton Box Specification As Customer Required Trademark As Customer Required Origin China HS Code 8414803090 Production Capacity 100000

Product Description

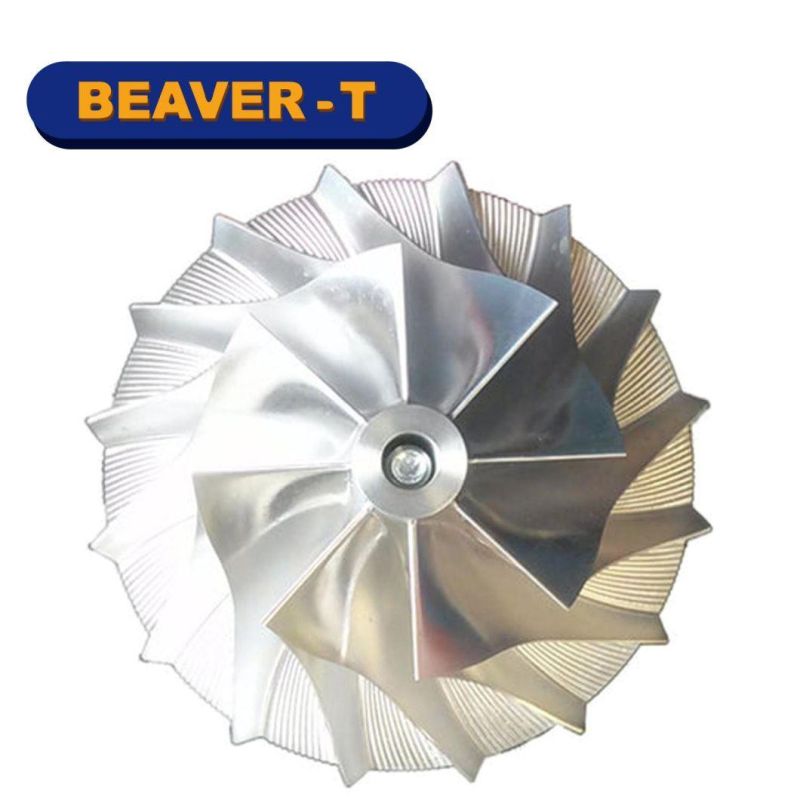

BRAND NEW TURBOCHARGER BILLET COMPRESSOR WHEEL

This is a BRAND NEW TURBOCHARGER BILLET COMPRESSOR WHEEL. This is an exact, direct Ot replacement turbo compressor wheel.

Fits the following:

 Interchangeable Number: 3599646 Description: Billet Compressor Wheel

 Blades: 8+8
Nose Diameter: 14.11 mm
Inducer: 54 mm
 Base Exducer: 83.03 mm
Tapered Tip Exducer: 88.01 mm
Tip Height: 5.32 mm Superback: 4 mm
Overall Height: 38.85 mm
Bore Size: 7 mm
Trailing Angle: 60°
Cutback: 3 mm
SP Height Angle:
BCCW Blade Height: 33.21 mm Splitter Height:
Tapered Tip Angle: 30°

Racing or Non-Racing: Non-Racing
STD or Custom Size: STD
Bore Type: Through
OE or Custom Compressor House Fitment: OE Rotation: Forward

Fit for Turbo Part Numbers:
3528087, 3528237, 3528238, 3528894, 3528920, 3531040, 3531456, 3531457, 3531697, 3532211, 3532296, 3533121, 3533563, 3533595, 3533741, 3534023, 3534241, 3535088, 3535666, 3536050, 3537551, 4033262, 4033307, 3533595-D, 3533741-D

Fit for OEM Numbers:
477834, 477835, 477836, 477865, 477867, 477868, 477889, 865752, 3802348, 3802392, 3802586, 3825928, 8015295, 8114138, 8192580

Fit for Turbo Models:
H1C, H1C-8264BT/E18DA11, H1E-8264AD/H18VA8, H1E-8264AX/H14JA8, H1E- 8264AX/H14P8, H1E-8264BV/H14JA8, HX40, WH1C, WH1C-8264AX/E12PB11, WH1C- 8264BF/E14NC11, WH1E-8264BV/H14EC8

Fit for Applications:
1989- Various with Cummins 6BTAA Engine
1989-01 Iveco Marine with 5.9L 8361SRI25 Diesel Engine 1989-1993 Dodge with 5.9L Cummins Engine
1992- Various with 5.9L Cummins 6BT, 6BTA Diesel Engine
1992- Volvo Truck with TXD73 Diesel Engine
1993- Volvo FE42 Various with 7.0L TD73ES Diesel Engine 1993-03 Volvo B7 CH 30000 Truck with 7.0L TD73ES Diesel Engine 1993-03 Volvo White Truck with 7.0L VED7 Diesel Engine
1993-94 Iveco Truck with 8061 SI 36 Engine
1995- Volvo Truck with TD730ME Diesel Engine
Leyland with Cummins 6BTA, 6BTAA Engine

*Important* Please use the above information to determine if the part(s) in this listing Lt your vehicle. The most reliable way to make sure the model of turbo is Lnding the part number from the nameplate of your old turbo.

Any questions or concerns, please feel free to email or call us.
