• Model NO.：MHC
• Automobile Chassis Noise：Transmission Noise
• Component：Catalytic Converter
• Main Market：Europe
• Material：SS304, SS316,Fe-Cr-Al Alloy
• Application：Gas Treatment,Purifier for Auto,Motorcycle
• Shape：Round,Square,Rectangular
• Size：100X100mm, 80X100mm and Requested Size
• Cell：100-600cpsi
• Thickness(mm)：0.04-0.1
• Width(mm)：10-250
• Max Working Temperature：1100°c
• Max Service Temperature：1250°c
• Transport Package：Wooden Box,Carton Box with Pallet
• Specification：All size
• Trademark：DXY
• Origin：China
• HS Code：84213990
• Production Capacity：100, 000pieces,Month

Basic Info.

Model NO. MHC Automobile Chassis Noise Transmission Noise Component Catalytic Converter Main Market Europe Material SS304, SS316,Fe-Cr-Al Alloy Application Gas Treatment/Purifier for Auto/Motorcycle Shape Round/Square/Rectangular Size 100X100mm, 80X100mm and Requested Size Cell 100-600cpsi Thickness(mm) 0.04-0.1 Width(mm) 10-250 Max Working Temperature 1100°c Max Service Temperature 1250°c Transport Package Wooden Box/Carton Box with Pallet Specification All size Trademark DXY Origin China HS Code 84213990 Production Capacity 100, 000pieces/Month

Product Description

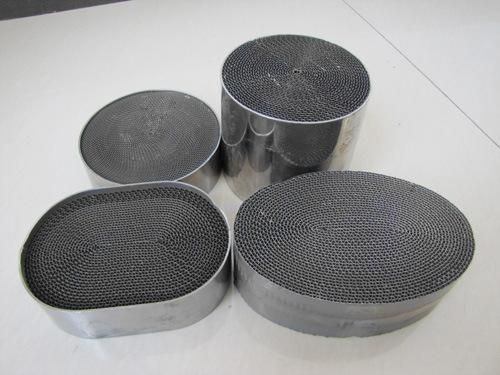

Metal Honeycomb Substrate covers these features: ignition fast, small size, high strength, heat
resistance, etc., are the most widely used in motorcycle exhaust gas purification. It is the surface
pretreated so that metal honeycomb substrate is generated between the metal buffer layer and
the active coating layer, the thermal expansion match to address gradient between the metallic
active coating material and the transition in the buffer layer coating containing Ce, La, Pr and
other rare earth elements in the active coating layer, and then a load comprising Pt, Rh, etc.
Made of a noble metal of the active ingredient.

Metal honeycomb substrate advantages :
1) Vector buffer layer surface treatment, the coating is firmly combined;
2) Using high temperature resistant material than the high surface area and good catalytic
converter temperature performance;
3) Optimizing the ratio of precious metals and rare earth elements, catalytic converter light-off temperature is low;
4) High-performance oxygen storage material formulations, high purification efficiency of catalytic
converters;
5) Used for metal substrate automatic coating apparatus, the coating uniformity;
6) Metal catalytic converters long life: gasoline vehicles up to 120,000km;
7) Strict quality control and inspection, product quality and stability;
8) Different cost formulas to choose from, both emissions compliance colleagues economy.

Specification (mm)	Radius  (mm)	Height             (mm)	CPSI
28X60	26	50	100
28X100	26	90	100
35X30	33	20	100
35X40	33	30	100
35X50	33	40	100
35X60	33	50	100, 400
35X70	33	60	100, 200
35X100	33	90	100, 200, 400
42X100	40	90	100, 200, 400
43X75	41	65	100, 200, 300
43X100	41	90	100, 200, 300
45X60	43	50	100
53X60	51	50	100
63.5X50	60.5	40	100, 200, 400
63.5X70	60.5	60	200, 300, 400
