• Model NO.：3A4005
• Quality：Industrial Grade
• Colro：Black
• Surface：Smooth
• Tensile Strength：6-8MPa
• Hardness：50-60shore a
• Elongation：350%
• Density：1.4G,Cm3
• Size：Standard Size with Full Mould
• MOQ：100pieces
• Transport Package：Packing in Cartons
• Specification：standard size
• Trademark：3A Rubber
• Origin：China
• HS Code：84663000
• Production Capacity：1000000pieces,Month

Basic Info.

Model NO. 3A4005 Quality Industrial Grade Colro Black Surface Smooth Tensile Strength 6-8MPa Hardness 50-60shore a Elongation 350% Density 1.4G/Cm3 Size Standard Size with Full Mould MOQ 100pieces Transport Package Packing in Cartons Specification standard size Trademark 3A Rubber Origin China HS Code 84663000 Production Capacity 1000000pieces/Month

Product Description

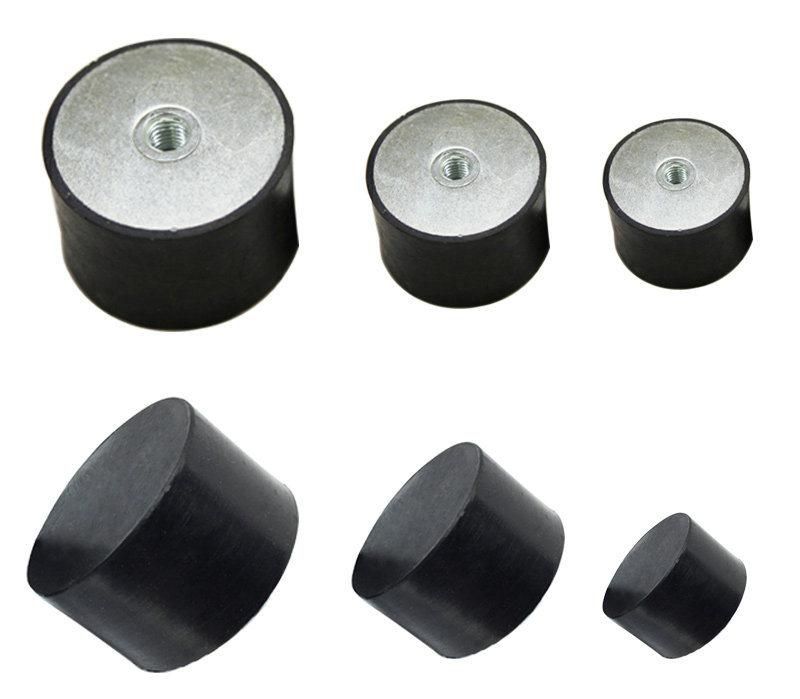

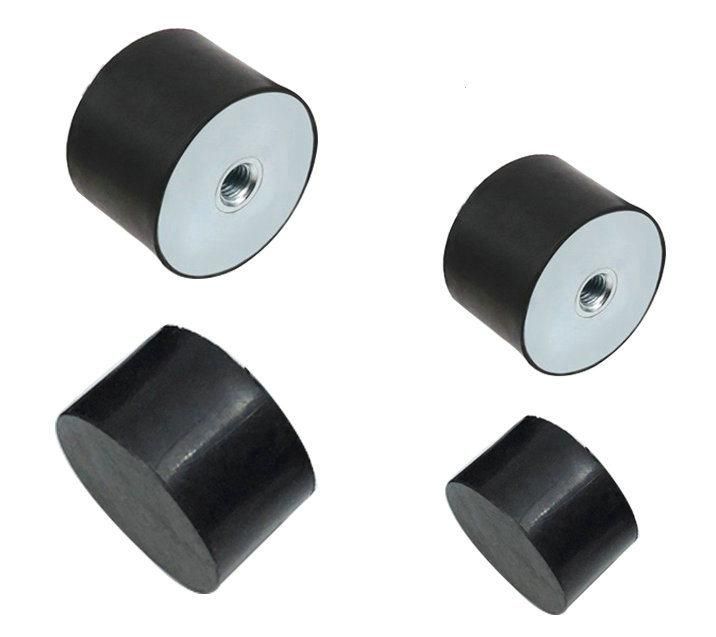

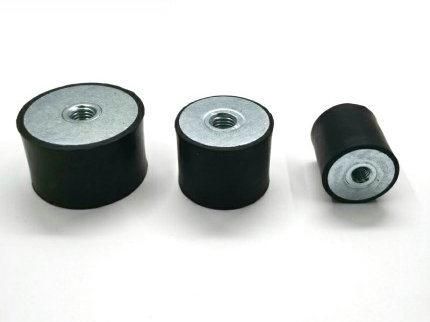

E-PF Rubber Mounts, Rubber Mountings, Rubber Shock Absorber for Anti Vibrate Industrial

Description: the E-PF rubber mounting is a rubber shock absorber screw made with professional technology, inimitable formulation and full sets of injection moulds without mould line and nothing mould cost. The one side is female screw made with high quality zinc coated metal and standard screwthread, another side is plain surface with high quality rubber of NR, NBR, EPDM, SBR etc.(default rubber is NR 60shore A). Apply to the anti-vibration and shock absorption for all kinds machinery, include mobile anti-vibration parts, health care equipment, machinery anti-vibration parts, computer parts, cranes, dump trucks, sport utility vehicles, suspensions, vehicle loading unloading equipment.





Specifications:

elastic elements: rubber of NR, NBR, EPDM, SBR etc.(default is NR 60shore A)

metal parts: white zinc-plated steel

quality: industrial grade

color: black

top: screw thread

middle: rubber

bottom: plate rubber without metal

surface: smooth

tensile strength: 8Mpa

hardness: 40, 50, 60+/-5shore A

elongation: 350%

density: 1.4g/cm³

application temperature: -40°C ~ +80°C

size: standard without mould cost

OEM & customized size are agreed

packing in bags, cartons and crates

***when you order, pls confirm the quantity and product code number or your drawings***

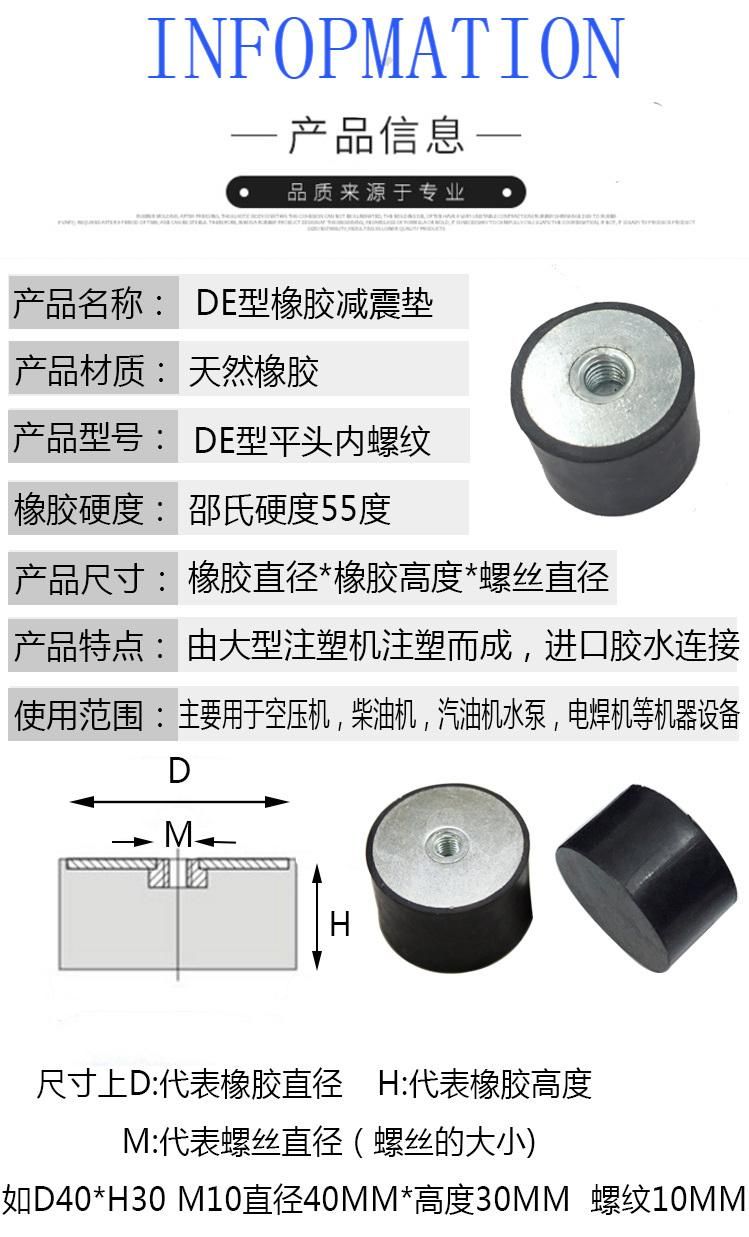

Code	A (mm)	B (mm)	M	I(mm)
E67M3	6	7	M3	3
E88M3	8	8	M3	4
E108M4	10	8	M4	4
E1010M4	10	10	M4	4
E158M4	15	8	M4	4
E1510M4	15	10	M4	4
E1515M4	15	15	M4	4-7
E1520M4	15	20	M4	4-7
E1525M4	15	25	M4	4-7
E158M5	15	8	M5	3
E1510M5	15	10	M5	3
E1515M5	15	15	M5	3
E1520M5	15	20	M5	3
E1525M5	15	25	M5	3
E1610M4	16	10	M4	3
E1615M4	16	15	M4	3
E1620M4	16	20	M4	3
E1610M5	16	10	M5	3
E1615M5	16	15	M5	3
E1620M5	16	20	M5	3
E2010M6	20	10	M6	4
E2015M6	20	15	M6	4-6
E2020M6	20	20	M6	4-6
E2025M6	20	25	M6	4-6
E2030M6	20	30	M6	4-6
E2513M6	25	13	M6	6
E2515M6	25	15	M6	6
E2520M6	25	20	M6	6-8
E2522M6	25	22	M6	6-8
E2525M6	25	25	M6	6-8
E2530M6	25	30	M6	6-8
E2513M8	25	13	M8	6
E2515M8	25	15	M8	6
E2520M8	25	20	M8	6-10
E2522M8	25	22	M8	6-10
E2525M8	25	25	M8	6-10
E2530M8	25	30	M8	6-10
E3010M6	30	10	M6	6
E3012M6	30	12	M6	6
E3015M6	30	15	M6	6
E3017M6	30	17	M6	6
E3020M6	30	20	M6	6-10
E3022M6	30	22	M6	6-10
E3025M6	30	25	M6	6-10
E3030M6	30	30	M6	6-10
E3040M6	30	40	M6	6-10
E3012M8	30	12	M8	6
E3015M8	30	15	M8	6
E3017M8	30	17	M8	6
E3020M8	30	20	M8	6-10
E3022M8	30	22	M8	6-10
E3025M8	30	25	M8	6-10
E3030M8	30	30	M8	6-10
E3040M8	30	40	M8	6-10
E4015M8	40	15	M8	6
E4020M8	40	20	M8	6-10
E4025M8	40	25	M8	6-10
E4028M8	40	28	M8	6-10
E4030M8	40	30	M8	6-10
E4035M8	40	35	M8	6-10
E4040M8	40	40	M8	6-10
E4045M8	40	45	M8	6-10
E4015M10	40	15	M10	6
E4020M10	40	20	M10	9
E4025M10	40	25	M10	9
E4028M10	40	28	M10	9
E4030M10	40	30	M10	9
E4035M10	40	35	M10	9
E4040M10	40	40	M10	9
E4045M10	40	45	M10	9
E5015M10	50	15	M10	9
E5020M10	50	20	M10	9
E5025M10	50	25	M10	9
E5030M10	50	30	M10	9
