• Model NO.：AB-0025
• Area(Section)：0.3~16mm2
• Material：99.9% Pure Copper
• Insulation Materials：Rubber
• Applications：Overhead, Carbon Brush
• Transport Package：4 Rolls,CTN
• Specification：SGS, ISO9001: 2015
• Origin：China (Mainland)
• HS Code：8545200000
• Production Capacity：500 Tons ,Year

Basic Info.

Model NO. AB-0025 Area(Section) 0.3~16mm2 Material 99.9% Pure Copper Insulation Materials Rubber Applications Overhead, Carbon Brush Transport Package 4 Rolls/CTN Specification SGS, ISO9001: 2015 Origin China (Mainland) HS Code 8545200000 Production Capacity 500 Tons /Year

Product Description

supplying the high quality tinned weaving Copper wire used for carbon brush


About copper wire :
(1) Stranded Copper Wire Conductor
(2) Material:Pure Copper
(3) Custom-require
(4) Good conductivity of copper
(5) High signal transmission property
(6)Thermal stability,high thermal endurance

Packaging
(1) Selling Units:Single item
(2) Single volume: 1 cm3
(3) Single gross weight:10.0 KG
(4) Package Type:carton




Copper Wire Area size:
(1) 0.3mm2, 0.5mm2, 0.75mm2;
(2) 1mm2, 2mm2, 2.5mm2, 3mm2;
(3) 4mm2, 5mm2, 6mm2, 8mm2;
(4)10mm2, 12mm2, 16mm2.








Characters :
(1). manufacture workcraft:Heat the copper to 1200ºC ,and form the bimetal body , no crack after being any drawn;

(2). Good anti corrosion:No residue in bimetal material ,and the corrosion endurance is good ;
(3). Good conductivity:Good conductivity obtained with Skin-effect of pure copper material surface;

(4). Low cost: The cost of CCS conductor is much lower than that of pure copper conductor ,but the conductivity and strength is similar to that of pure copper .

(5). Simple installation:Simple installation both by machine and hand are ok ,and the installation cost is very economical;







Suitable Scope :
Copper bond steel conductor is used for earthing system of power plant ,transformer station ,tower ,communication station ,airport, railway, subway station , high building, computer room,petro plant ,oil reservoir in the environmental of moist ,saline and alkaline,acid and chemical corrosion medium environmental.






Sizes	Area (mm2)	Wire Dia (mm)	Wire Nos . (pcs)	Wire OD (mm)
AB16	16	1.7	7	5.1
AB25	25	2.15	7	6.5
AB35	35	2.52	7	7.6
AB50	50	1.8	19	9
AB70	75	2.1	19	11
AB95	95	2.52	19	12.5
AB120	120	2.8	19	14
AB150	150	2.3	37	16
AB180	185	2.5	37	17.6
AB240	240	2.8	37	20
AB300	300	3.2	37	22.4

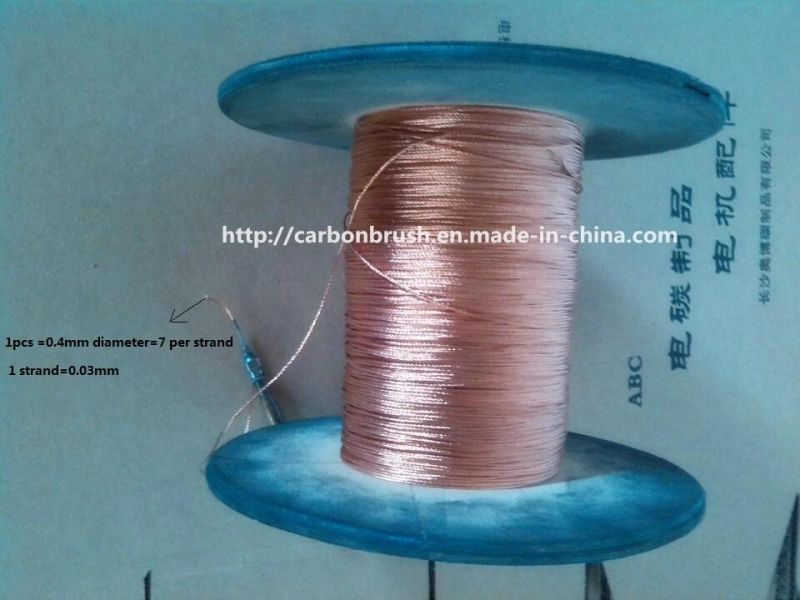

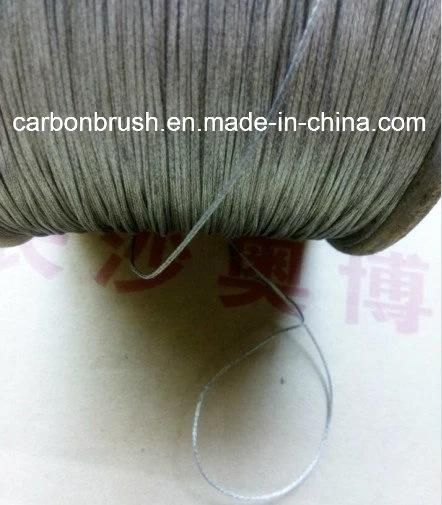

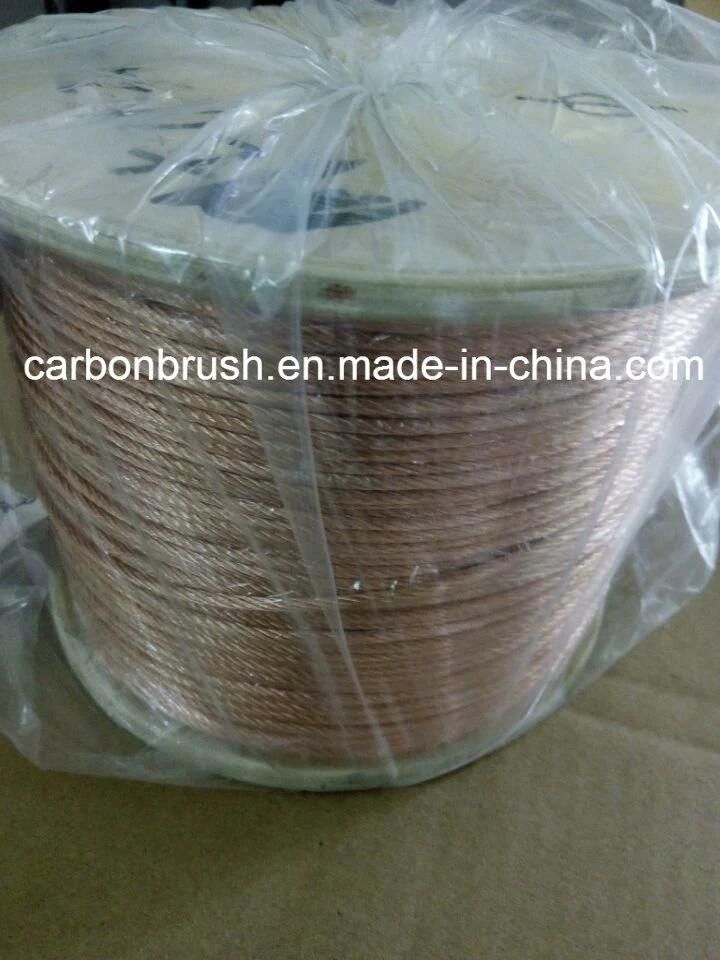

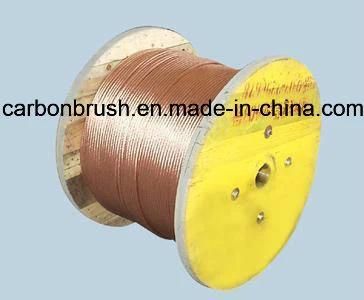

Products picture for reference





Welcome to send the inquiry to us, thanks.
