• Model NO.：3A4008
• Color：Black
• Quality：Industrial Grade
• Surface：Smooth
• Tensile Strength：6-8mpa for Rubber
• Hardness：50-60shore a for Rubber
• Elongation：350% for Rubber
• Density：1.4G,Cm3 for Rubber
• Size：Standard Size Without Mould Cost
• MOQ：100PCS
• Transport Package：Packing in Cartons
• Trademark：3A rubber
• Origin：China
• Production Capacity：1000000PCS,Month

Basic Info.

Model NO. 3A4008 Color Black Quality Industrial Grade Surface Smooth Tensile Strength 6-8mpa for Rubber Hardness 50-60shore a for Rubber Elongation 350% for Rubber Density 1.4G/Cm3 for Rubber Size Standard Size Without Mould Cost MOQ 100PCS Transport Package Packing in Cartons Trademark 3A rubber Origin China Production Capacity 1000000PCS/Month

Product Description

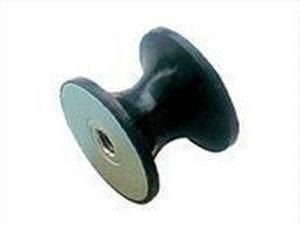

TC-FF Rubber Mounting, Rubber Mounts, Shock Absorber (3A4008)


Description: the TC-FF rubber mounting is a rubber shock absorber screw made with professional technology, inimitable formulation and full sets of injection moulds without mould line and nothing mould cost. The two sides are female screw made with high quality zinc coated metal and standard screwthread, the middle is " V " surface with high quality rubber of NR, NBR, EPDM, SBR etc.(default rubber is NR 60shore A). It is standard shock absorber typically used for fixed or flexible fastener devices, suitable for a variety of applications, especially elastic suspension and vibration isolation of machines and a variety of machinery, centrifuge industrial fans, small electronics, pumps, dryers, washing machines, electric motors, measuring equipments, inverter and compressor speed at 1200rpm/min or more mechanical equipment selection, installation is simple and specification, diameter 8-100mm various size are available.



Specifications:



elastic elements: rubber of NR, NBR, EPDM, SBR etc.(default is NR 60shore A)

metal parts: white zinc-plated steel

quality: industrial grade

color: black

top: screw thread

middle: saddle rubber

bottom: screw thread

surface: smooth

tensile strength: 8Mpa

hardness: 40, 50, 60+/-5shore A

elongation: 350%

density: 1.4g/cm³

application temperature: -40°C ~ +80°C

size: standard without mould cost

OEM & customized size are agreed

packing in bags, cartons and crates

***when you order, pls confirm the quantity and product code number or your drawings***

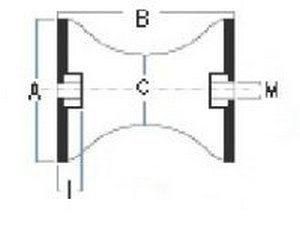

Code	A(mm)	C(mm)	B(mm)	M	I(mm)
TC-FF201015M6	20	10	15	M6	6-8
TC-FF251020M6	25	10	20	M6	6-8
TC-FF251818M6	25	18	18	M6	6-8
TC-FF251820M8	25	18	20	M8	6-8
TC-FF401530M8	40	15	30	M8	6-8-10
TC-FF402030M8	40	20	30	M8	6-8-10
TC-FF402730M8	40	27	30	M8	6-8-10
TC-FF403030M8	40	30	30	M8	6-8-10
