• Quality：Industrial Grade
• Colro：Black
• Surface：Smooth
• Tensile Strength：8MPa
• Hardness：50-60shore a
• Elongation：350%
• Density：1.4G,Cm3
• Size：Standard Size
• MOQ：10pieces
• Transport Package：Packing in Cartons
• Specification：standard size
• Trademark：3A Rubber
• Origin：China
• HS Code：84663000
• Production Capacity：100000pieces,Month

Basic Info.

Quality Industrial Grade Colro Black Surface Smooth Tensile Strength 8MPa Hardness 50-60shore a Elongation 350% Density 1.4G/Cm3 Size Standard Size MOQ 10pieces Transport Package Packing in Cartons Specification standard size Trademark 3A Rubber Origin China HS Code 84663000 Production Capacity 100000pieces/Month

Product Description

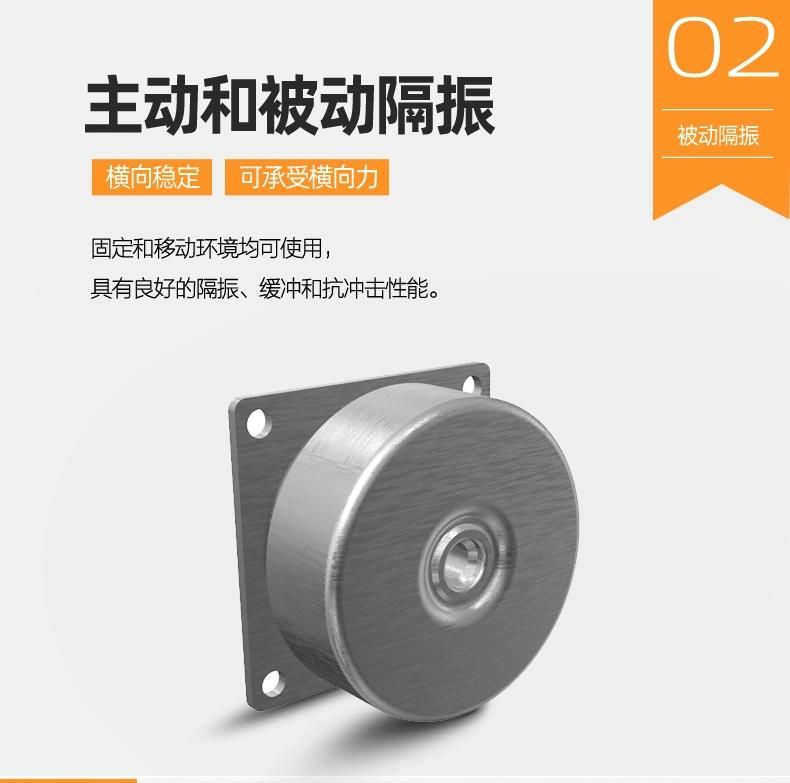

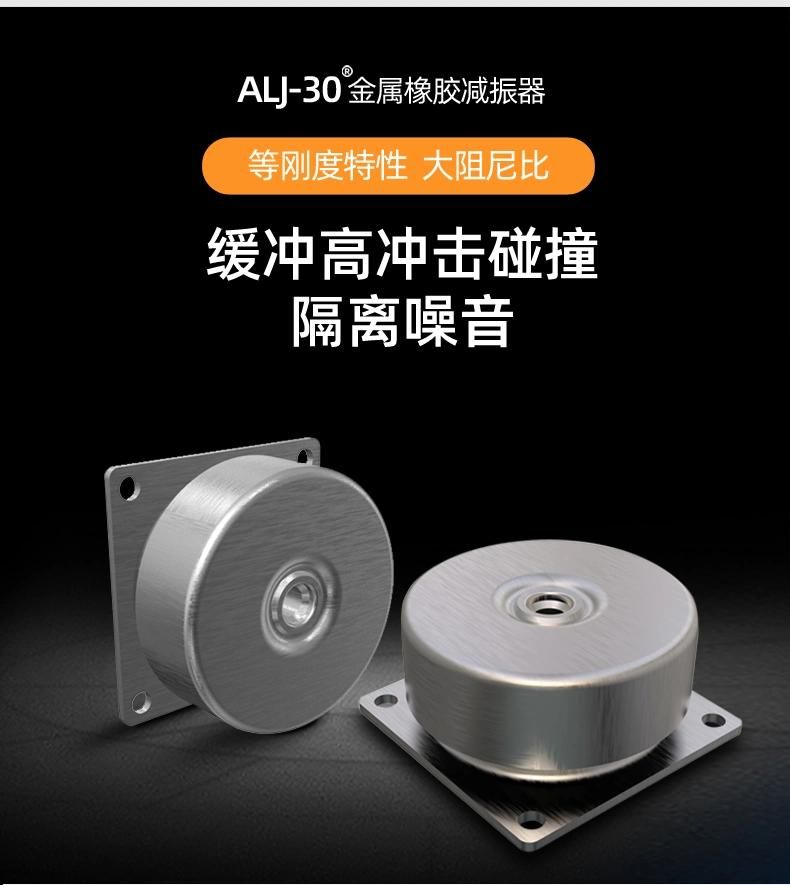

ALJ3000-3004 Rubber Mount, Rubber Mounting, Rubber Shock Absorber


Description: the ALJ30000-3004 rubber mounting is one of bell-type shock absorber with professional technology and inimitable formulation and full sets of injection moulds without mould line and nothing mould cost.. The top is round cap of female screw made with high quality zinc coated metal sheet, the bottom is support metal sheet with 2 stockets, the middle is high quality rubber of NBR, NR with full adhesive between the rubber and metal parts. It can reach the height effect for the vibration in the axial pressure and lateral pressure, especially used in generators, engines systems motor and so on, work range around 500-3500HZ and 1500-3500HZ mounting. The product inner structure is the rubber strong bonding with the metal, in addition there is a small rubber compress but higher load, and it help to get more safety with special design of safety lock in the middle, locking the product. It is very reliable and durable. Apply to anti-vibration and shock absorption for all kinds generators, engines, motors, compressor, pump, refrigerator and other metal system.

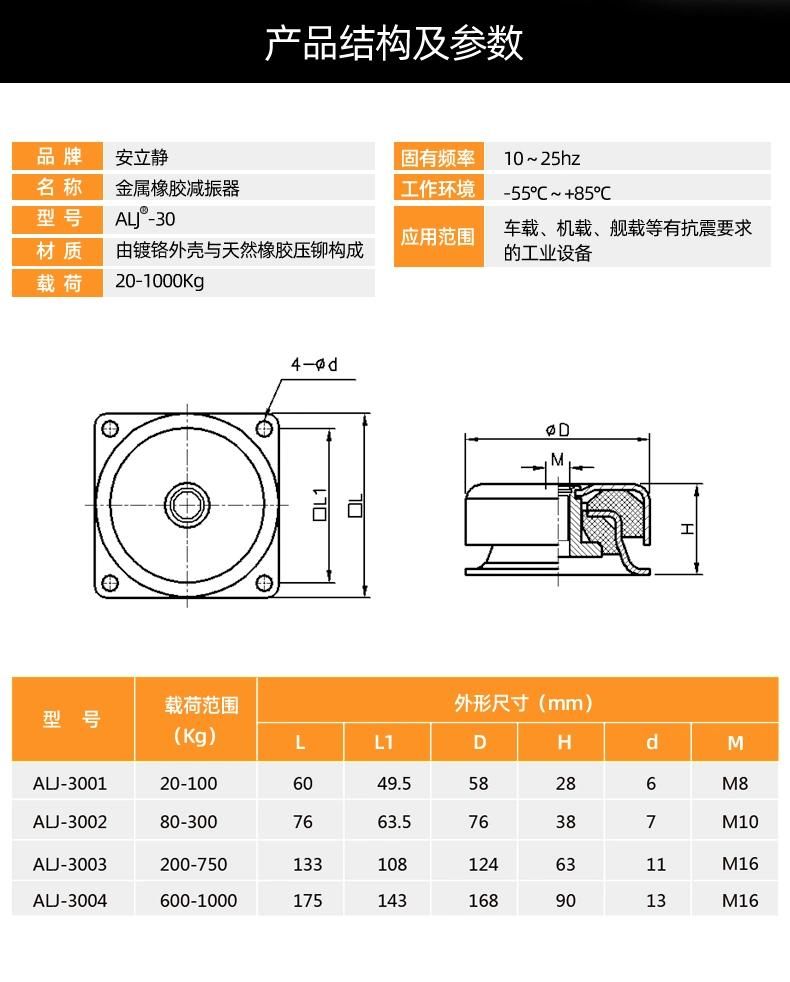

Specifications:

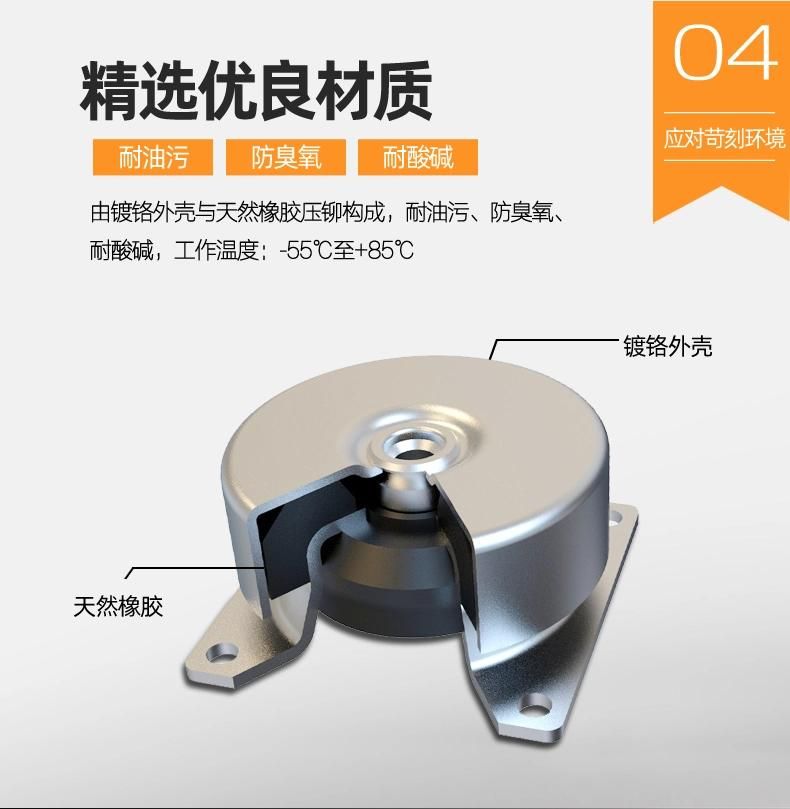

material: blue zinc-plated metal + rubber

rubber: NR, NBR(default is NR 60shore A)

quality: industrial grade

color: natural galvanized color

top: metal cap with screw thread

middle: high tensile rubber

bottom: metal seat with grooves

surface: smooth

tensile strength: 8-12Mpa

hardness: 40, 60+/-5shore A

elongation: 350%

density: 1.4g/cm³

working temperature: -40°C - +120°C

working frequency: 500-3500HZ

size: standard without mould cost

packing in cartons and crates

OEM & customized size are agreed

***when you order, pls confirm the quantity and product code number or your drawings***
