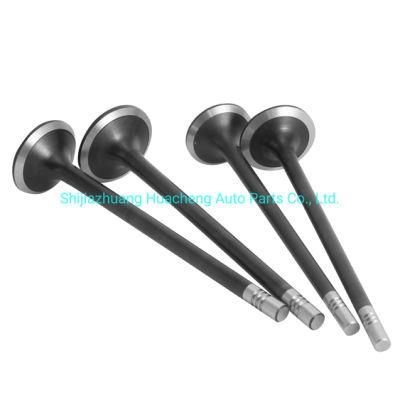

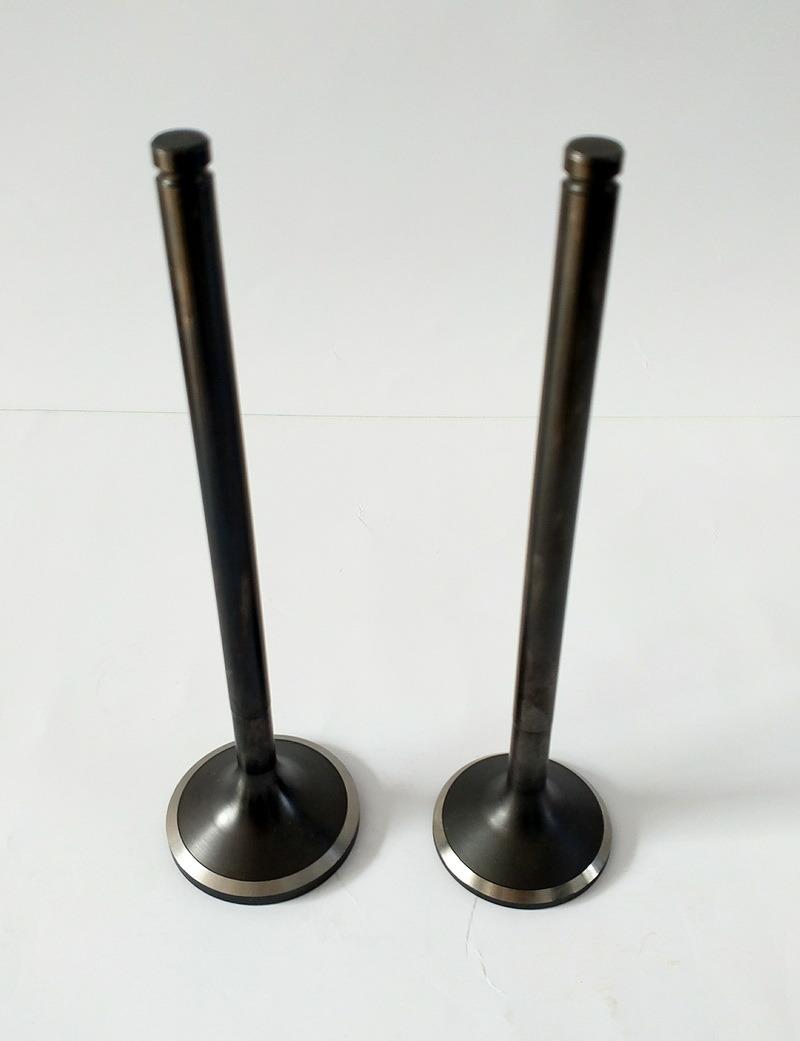

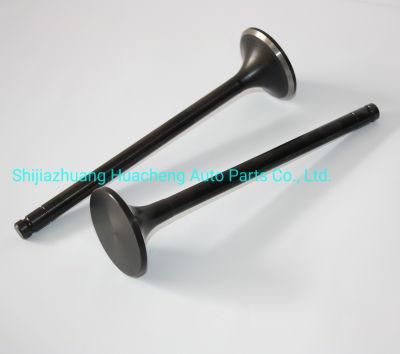

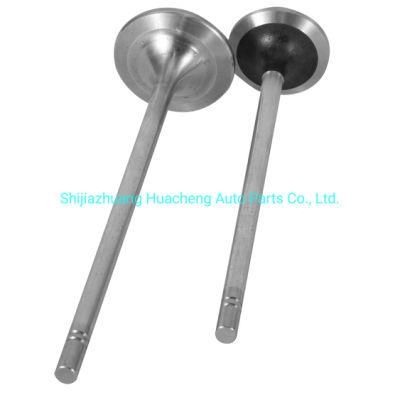

Vessel Engine Valve for Weichai 170
Shijiazhuang Huacheng Automobile Accessories Co., Ltd.- Car Make：Weichai
- Engine Type：Jichai170
- Camshaft Layout：Mid Mounted
- Valve Layout：Top Mounted
- Component：Valve Assembly
- Intake：12vb.03.37A
Base Info
- Model NO.：Weichai 170
- Exhaust：12vb.03.22A
- Intake Material：4cr10si2mo
- Exhaust Material：21-4n
- PCS of Carton：48 PCS
- Transport Package：Box, Carton
- Specification：STD
- Trademark：HUACHENG
- Origin：Shijiazhuang of China
- HS Code：8409999990
- Production Capacity：50000
Description
Basic Info.
Model NO. Weichai 170 Exhaust 12vb.03.22A Intake Material 4cr10si2mo Exhaust Material 21-4n PCS of Carton 48 PCS Transport Package Box, Carton Specification STD Trademark HUACHENG Origin Shijiazhuang of China HS Code 8409999990 Production Capacity 50000Product Description
ABOUT US

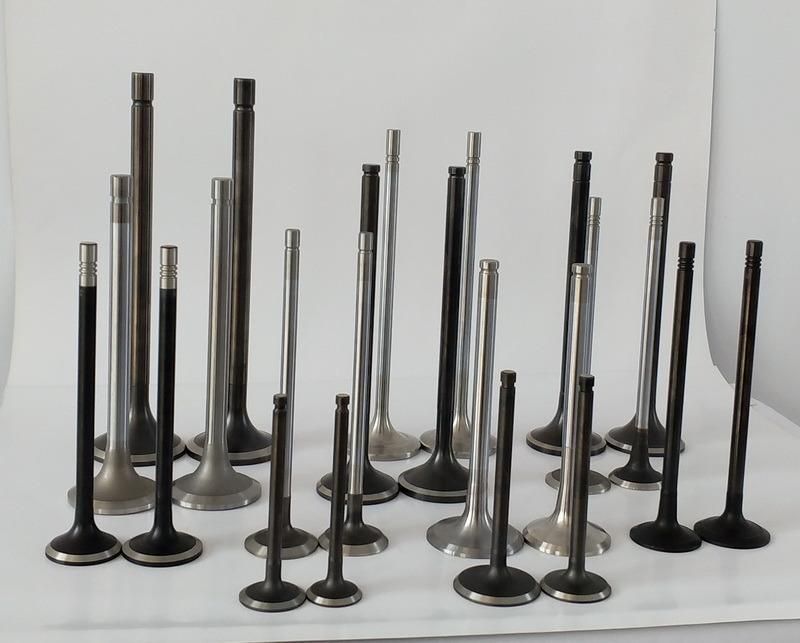

Shijiazhuang HUACHENG Auto Parts Co.,Ltd. is specialized in manufacturing engine valve for heavy duty truck, agricultural & engineering machinery, marine power and other models.
Our main product series include CUMMINS, CATERPILLAR, STEYR, HOWO, ISUZU, MITSUBISHI, YANMAR, DOOSAN, PERKINS, DEUTZ and all kinds of China engine model.
We select high quality special valve bar material, such as:
4Cr9Si2, 4Cr10Si2Mo, 21-4N, X60, 21-4NWNb Etc. The production use connection processing line, heat treatment with network continuous furnace, welding of double metals, valve seat welding (STELI), U quenching for valve rod slot, chrome plating and soft nitriding on surface, all of these can ensure the excellent quality and reliability of our products.
| Chemical Element & Name | WC (Wolfram Carbide) | Wsi | Mn | WP | WS | Wni | WCr | Wmo | WW | WN | Wco |
| 4Cr9Si2 | 0.35~0.50 | 2.00~3.00 | ≤0.70 | ≤0.035 | ≤0.030 | -- | 8.00~10.00 | -- | -- | -- | -- |
| 45Cr9Si3 | 0.40~0.50 | 2.70~3.30 | ≤0.80 | ≤0.040 | ≤0.030 | -- | 8.00~10.00 | -- | -- | -- | -- |
| 51Cr8Si2 | 0.45~0.55 | 1.00~2.00 | ≤0.60 | ≤0.030 | ≤0.030 | -- | 7.50~9.50 | -- | -- | -- | -- |
| 4Cr10Si2Mo | 0.35~0.45 | 1.90~2.60 | ≤0.70 | ≤0.035 | ≤0.030 | -- | 9.00~10.50 | 0.70~0.90 | -- | -- | -- |
| 85Cr18Mo2V | 0.80~0.90 | ≤1.00 | ≤1.50 | ≤0.040 | ≤0.030 | -- | 16.50~18.50 | 2.0~2.5 | -- | -- | V: 0.30~0.60 |
| 55Cr20Mn5Ni2N (21-2N) | 0.50~0.60 | ≤0.25 | 7.00~10.00 | ≤0.040 | ≤0.030 | 1.50~2.75 | 19.50~21.50 | -- | -- | 0.20~0.40 | -- |
| 53Cr21Mn9Ni4N (21-4N) | 0.48~0.58 | ≤0.35 | 8.00~10.00 | ≤0.040 | ≤0.030 | 3.25~4.50 | 20.00~22.00 | -- | -- | 0.35~0.50 | C+N≥0.90 |
| 50Cr21Mn9Ni4Nb2WN (21-4N WNb) | 0.45~0.55 | ≤0.45 | 8.00~10.00 | ≤0.050 | ≤0.030 | 3.50~5.00 | 20.00~22.00 | -- | 0.80~1.50 | 0.40~0.60 | Nb: 1.80~2.50 C+N≥0.90 |
| 33Cr23Ni8Mn3N (23-8N) | 0.28~0.38 | 0.50~1.00 | 1.50~3.50 | ≤0.040 | ≤0.030 | 7.00~9.00 | 22.00~24.00 | ≤0.50 | ≤0.50 | 0.25~0.30 | -- |
| GH14751 (inconel751) | ≤0.10 | ≤0.50 | ≤1.00 | ≤0.015 | ≤0.015 | 14.00~17.00 | AL: 0.90~1.50 | Ti: 2.20~2.60 | Nb: 0.70~1.20 | Te: 5.00~9.00 | |
| NiMoNiC80A | 0.04~0.10 | ≤1.00 | ≤1.00 | ≤0.020 | ≤0.015 | 18.00~21.00 | Fe≤3.00 | Cu≤0.20 B≤0.008 | AL: 1.0~1.80 Ti: 1.80~2.70 | ≤2.00 | |
| Ni30 | ≤0.08 | ≤0.50 | ≤0.50 | ≤0.015 | ≤0.05 | 29.50~33.50 | 13.50~15.50 | 0.40~1.00 | -- | Nb: 0.40~0.90 B≤0.010 | AL: 1.60~2.20 Ti: 2.3~2.90 |
| TC4 (Ti6-4) | ≤0.10 | AL: 5.25~6.75 | V: 3.35~4.65 | O≤0.40 | H=0.02 | Fe≤0.80 | Ti | -- |

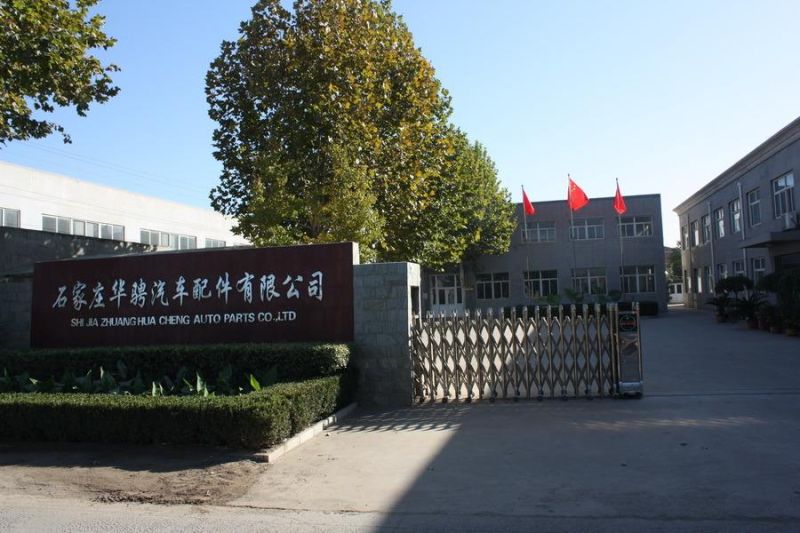

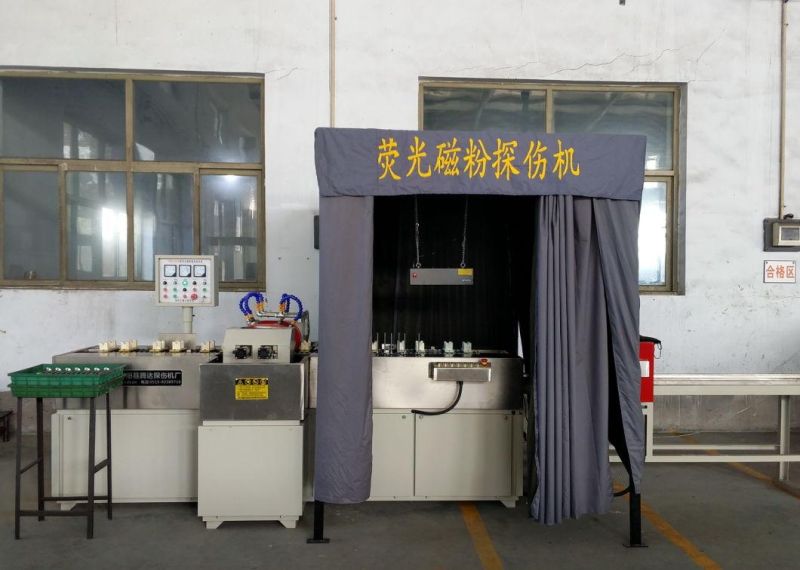

COMPANY DISPLAY
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral brown boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CIF, C&F, etc.
Q4. How about your delivery time?
A: Generally, if we have stocks, then 5 work days and it will take 35 work days for producing after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
