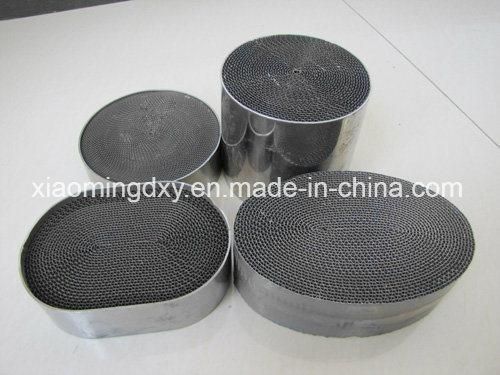

Honeycomb Metal Substrate Catalytic Converter for Euro3-Euro5
Beihai Xiaoming International Import and Export Trading Co., Ltd.- Type：Catalytic Converter
- Body Material：Alloy
- Discharge Standard：Euro V
- Certification：ISO9001, TS16949
- Noise Source：The Noise of Engine
- The Noise of Engine：Mechanical Noise
Base Info
- Model NO.：MHS
- Automobile Chassis Noise：Transmission Noise
- Component：Catalytic Converter
- Main Market：North America
- Material：SS304, SS316, Fe-Cr-Al Alloy
- Usage：as Catalyst Used in Automobile,Motorcycle
- Thickness(mm)：0.04-0.1
- Width(mm)：10-250
- Max Working Temperature：1100°c
- Max Service Temperature：1250°c
- Melting Point(Approx)：1500°c
- Coefficient of Line Expansion：14.7
- Density(g/cm3)：7.16
- Transport Package：Wooden Box and Pallet,Packed as Customers′ Need
- Specification：Diameter<120mm,Diameter<200mm, etc
- Trademark：DXY
- Origin：China
- HS Code：84216990
- Production Capacity：100, 000pieces,Month
Description
Test Result for EU- IIIEmission Result, g/km HC CO NOx EU- III Standard 0.8 2 0.15 Displacement Item 4 Stroke 150CC Scooter Original Emission 1.8 10.68 0.24 With Two Catalytics 0.19 1.74 0.09 4 Stroke 125CC Scooter Original Emission 2.72 7.36 0.7 With Two Catalytics 0.14 0.94 0.13 4 Stroke 110CC Cub Original Emission 0.43 2.47 0.12 With One Catalytic ( without SAI ) 0.21 1.16 0.04 4 Stroke 150CC EFI Engine With One Catalytic ( without SAI ) 0.23 1.08 0.1 4 Stroke 300CC EFI Engine With One Catalytic ( without SAI ) 0.19 1.4 0.11
| Shape | Shell size(mm) | Core size(mm) | Cell density (CPSI) |
| Rotundity | Φ 30×22 | Φ 28×20 | 100/200/300/400 |
| Rotundity | Φ 35×20 | Φ 33×20 | 100/200/300/400 |
| Rotundity | Φ 35×30 | Φ 33×30 | 100/200/300/400 |
| Rotundity | Φ 35×40 | Φ 33×40 | 100/200/300/400 |
| Rotundity | Φ 35×50 | Φ 33×50 | 100/200/300/400 |
| Rotundity | Φ 35×60 | Φ 33×60 | 100/200/300/400 |
| Rotundity | Φ35 × 70/100/130 | Φ33 × 60/90/120 | 100/200/300/400 |
| Rotundity | Φ42 × 70/100/130 | Φ40 × 60/90/120 | 100/200/300/400 |
| Rotundity | Φ45 × 70/100/130 | Φ43 × 60/90/120 | 100/200/300/400 |
| Rotundity | Φ63,5 × 85/100/130 | Φ60,5 × 74,5/90/120 | 200/300/400 |
| Rotundity | Φ73 × 70/100/130 L | Φ70 × 60/90/120 | 200/300/400 |
| Rotundity | Φ93 × 70/100/130 | Φ90 × 60/90/120 | 200/300/400 |
| Rotundity | Φ100,3 × 100/130 | Φ98,3 × 90/120 | 600 |
| Rotundity | Φ144 × 150/152,4 | Φ142 × 140/142,4 | 200/300/400 |
| Rotundity | Φ190 × 200 | Φ188 × 190 | 200/300/400 |
| Rotundity | Φ420 × 100/130 | Φ416 × 90/120 | 300/400 |
| Race track | 123×63×85 | 120×60×75 | 200/300 |
| Race track | 123×63×100 | 120×60×90 | 200/300 |
| Race track | 78,5×52×104 | 76,5×50×90 | 200/300 |
