- Model NO.：S4DS025
- Import & Export Mode：Have Own Export License
- Average Lead Time：1-3 Months
- Part Number：178063
- Transport Package：Plastic Box,Carton Box
- Specification：As Customer Required
- Trademark：As Customer Required
- Origin：China
- HS Code：8414803090
- Production Capacity：100000
Basic Info.
Model NO.
S4DS025
Import & Export Mode
Have Own Export License
Average Lead Time
1-3 Months
Part Number
178063
Transport Package
Plastic Box/Carton Box
Specification
As Customer Required
Trademark
As Customer Required
Origin
China
HS Code
8414803090
Production Capacity
100000
Product Description
| Material: | Turbine Material:K18 Ni-Base Superalloy
Turbine Housing:Iron+ Ni+Mo
Compressor Housing Material:Cast Aluminium
Shaft Material:42CrMo4 |
| Condition: | Brand New |
| Packing | 1.Neutral Strong carton with foams
2.Customized box |
| Lead time: | 7-25days |
| Sample or small order | Accepted
|
| Country of origin | People's Republic of China |

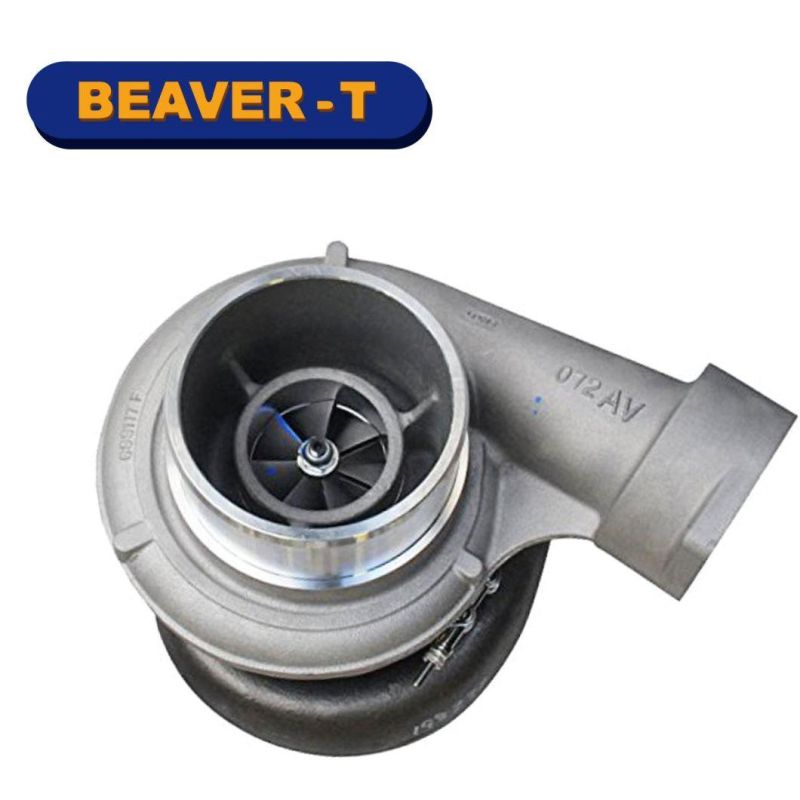

Fits the following: Part Number: 178063 Interchangeable Number: 178120, 198123, 199114, 199119, 466041-0001, 466041-5001, 466041-5001S, 466372-0002, 466372-5002, 466372-5002S, 466903-0001, 466903-5001, 466903-5001S OEM Number: 0R-5733, 0R-6051, 0R-6053, 0R-6055, 0R-6167, 0R-6168, 0R-6169, 0R-6170, 0R-6558, 0R-6689, 0R-6783, 0R-6784, 0R- 6955, 0R-6956, 0R-6957, 0R-6959, 0R-6960, 0R5733, 0R6051, 0R6053, 0R6055, 0R6167, 0R6168, 0R6169, 0R6170, 0R6558, 0R6689, 0R6783, 0R6784, 0R6955, 0R6956, 0R6957, 0R6959, 0R6960, 4P-2061, 4P-2458, 4P-2858, 4P2061, 4P2458, 4P2858, 7W-9568, 7W9568 Serial Number: 2EK1-1930, 8TC1413-14492 Turbo Model: S4DS025 Year: 1990-02 Engine: 3406B, 3406C Displacement: 14.6L, 14600 ccm Fuel: Diesel Power: 343 kW/460 HP PrePx: 2EK, 4CK Speed: 1800 RPM Angle α (Compressor Housing): 292° Angle ß (Turbine Housing): 82° Back Plate: 197651 (51135, 5S4556, 142066, 49162-22500, 52321523000, 52321523001, 143044-0000)(1250403300) Bearing Housing: 199143 (199144, 4P3627) CHRA: 169415 (0R7195, 1412023, 178171) Compressor Cover: 199117 (4P3625) Compressor Wheel: 169413 (4P3624, 1412010)(Ind. 75.15 mm, Exd. 98.99 mm, Trim 10.34, 6+6 Blades) Gasket (Oil Inlet): 129119 (210019, 201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 129120)(417378 Replaced By 420641)(1900000035) Gasket (Oil Outlet): 210018 (210018-0000, 129120, 409267-0002, 201048, 157602, 3037537, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) Gasket (Turbine Inlet): 409038-0000 (132040, 52231083002) Heat Shield: 187517 (4W7355) Repair Kit: 318406 (318408)(311144)(1252419755) Turbine Housing A/R: 1.72 Turbine Housing: 198236 (7E2907) Turbine Wheel: 189553 (7W3842) Application: 1990-02 Caterpillar Commercial Truck with 3406B Engine
