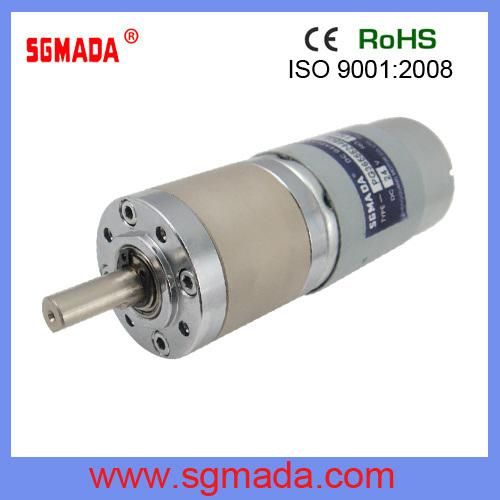

3.4W 12V, 24V DC Planetary Geared Motor (PG-36545)
Ningbo Shengguang Motor Co., Ltd.- 36mm Diameter：Body Length:82-108mm
- Transport Package：40PCS Per Carton
- Specification：Pg-36545 Planetary Series
- Trademark：SGMADA
- Origin：China
Base Info
- Model NO.：PG36545 OR PG36555
- HS Code：8501109990
- Production Capacity：50000PCS ,Month
Description
Basic Info.
Model NO. PG36545 OR PG36555 HS Code 8501109990 Production Capacity 50000PCS /MonthProduct Description
3.4W 12V, 24V DC Planetary Geared Motor (PG-36545)DC Planetary Geared motor
PG36545 PG36555 planetary series
1. Voltage: 12V, 24V
2. Output speed: 1.6rpm-1621 rpm
3. Power: 3.4W

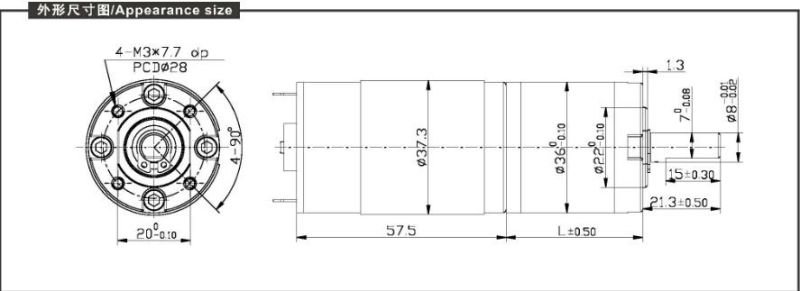

4. Motor dimensions: Dia. 36mm
5. Ratio: 1: 3.7, 1: 5.2, 1: 13.7, 1: 17, 1: 26.9, 1: 51, 1: 71, 1: 100, 1: 139, 1: 188, 1: 264, 1: 369, 1: 516, 1: 669, 1: 722, 1: 977, 1: 1367, 1: 1910, 1: 2671, 1: 3736
6. Package: 40PCS /carton, Carton Size: 28*26*22.5cm, N. W. 12KGS
7. Appliances: Automat, electrical controlled valve, robot, door locks, token, optical equipment, cordless power tool, ticket selling machinery, automatic energy saving bath, monitoring cameras, lighting
