• Model NO.：CHS
• Automobile Chassis Noise：The Brake Noise
• Component：Catalytic Converter
• Main Market：South Africa, East Asia, Europe
• Material：SS304
• Cell：100-400cpsi
• Transport Package：Wooden Box and Pallet,Packed as Customers′ Need
• Trademark：DXY
• Origin：China
• HS Code：84216990
• Production Capacity：100, 000pieces,Month

Basic Info.

Model NO. CHS Automobile Chassis Noise The Brake Noise Component Catalytic Converter Main Market South Africa, East Asia, Europe Material SS304 Cell 100-400cpsi Transport Package Wooden Box and Pallet/Packed as Customers′ Need Trademark DXY Origin China HS Code 84216990 Production Capacity 100, 000pieces/Month

Product Description

What is a Catalytic converter?

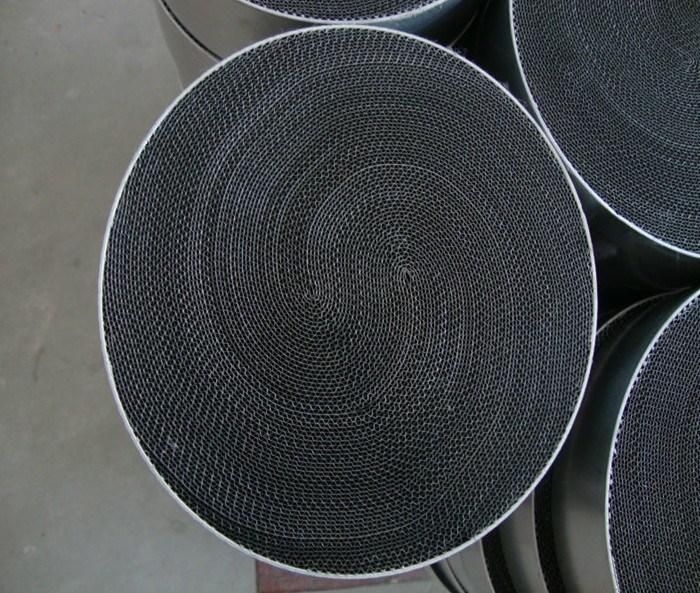

Honeycomb metal substrate has the advantages of fast burning, small volume, high mechanical strength, prominent heat-resistance, etc. It is widely used in exhaust gas purification, especially for motorbike.

Passing through the strict test of endurance, our motorcycle catalytic converter has met European emission standard, and the economical loss of motorcycle's power could be less than 3%. We could customize the products according to clients' different requirement. Our catalyst is a compound catalyst with rare earth element and noble metals of PT, Pd, Rh, when the exhaust is passing through the three-way catalyst, the CO would be oxidized into CO2, the HC is turned into H2O and CO2, and the NOX is deoxidized into nitrogen. Metal carrier catalysts are made in metal honeycomb carrier with stainless steel crust and Fe-Cr-Al core, it is widely used in motorcycles and off-road engines.

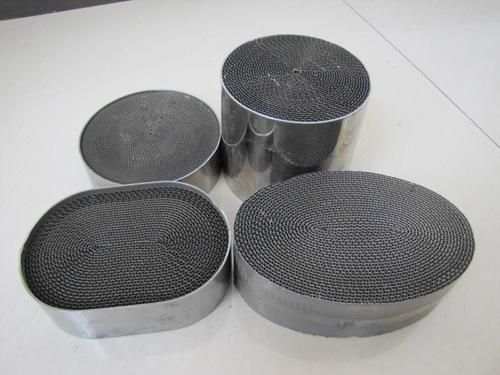

We can make 100CPSI, 200CPSI, 300CPSI, 400CPSI AND 600CPSI honeycomb metallic substrate in various shapes, Such as round, oval, racetrack and other customized shapes. We constantly improve the quality and service; our products get high reputation from customers.

pecifications
*Energy efficiency and environmental protection
*Active ingredient, and long life
*Good endurance

Standard of precious metal coating
*EURO1 standard
*EURO2 standard
*EURO3 standard
*EURO4 standard
*We can provide the product as per customers' requests



Shape	Material	Diameter	Length	Channel       density(cpsi)	Precious metal
Cylinder	Fe/Cr/Al	20	20	100/200	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	20	80	100/200	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	30	100	100/200	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	28	60	100/200	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	28	100	100/200	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	35	30	100/200	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	35	40	100/200	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	35	60	100/200	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	35	70	100/200	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	35	100	100/200	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	38	100	100/200	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	42	100	100/200	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	48.6	70	100/200/300	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	63	50	100/200/300/400	Pd/Pt/Rh
Cylinder	Fe/Cr/Al	101.6	100	400	Pd/Pt/Rh

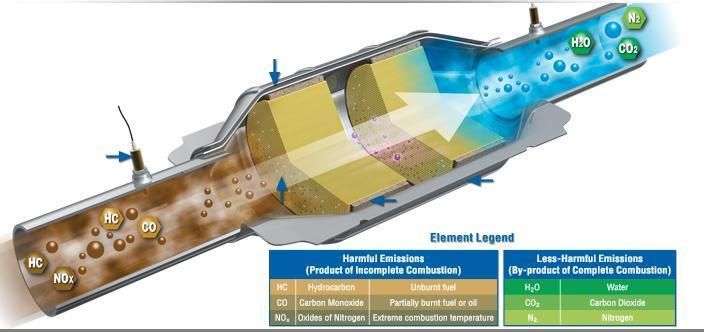

How does it work?
