Universal Bar and Plate Intercooler with Customize Core Size 600*300*100 600X300X76 470X300X65 Easy to Install with Core Size 500*300*76
Wuxi Jiushengyuan Science & Technology Co., Ltd.- Car Model：Performance Parts
- Engine Type：Universal
- Component：Intercooler
- Body Material：Aluminium
- Cold Style：Air-cooled
- Certification：ISO9001, CE
Base Info
- Model NO.：500*300*76(Diameter76)
- Structure：Bar Plate
- Radiator Core Type：Bar Plate
- Trademark：OEM; ODM
- Origin：Wuxi, Jiangsu, China
- Production Capacity：150 Tons , Month
Description

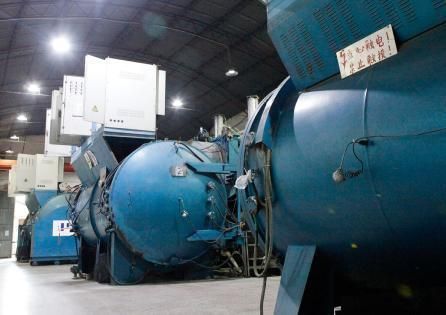

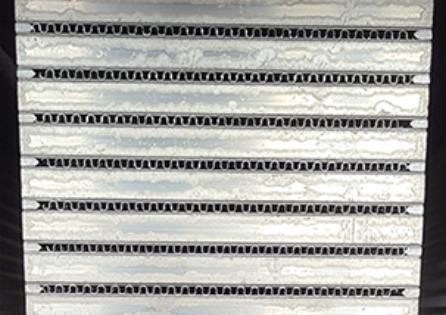

01 VACUUM BRAZING1.We have professonal qualification certificate of brazing operators.Different products adopt different brazing processes and set corresponding load thermocouples.
2.The surface of the brazing seam is complete,continuous,uniform and smooth.No solder accumulation,overflow, splashing exist.No unmelted or cracks on the surface.02 ARGON ARC WELDING
1.We have professional qualification certificate for argon welding operators and Welder Skill Matrix.
2.The crater should be filled up and slightly higher than the base metal.The arc crater must not have cracks and shrinkage holes.Backing plate welding is usedfor arc startng and closing.
3.Special processes such as double-sided welding,multi-layer welding,and penetration welding eliminate welding defects and ensure welding quality.
4.The weld surface is straight,beautiful,with uniform scales and uniform height.No surface pores,cracks,obvious bens and serious welds.
5.Develop different standard welding operation onstructions for different products(SOP).
03 CLEANINGBefore brazing,in addition to ultrasonic cleaning(removing oil anddust),alkali cleaning and acid cleaning (Remove surface oxide film)are also carried out.04 ASSEMBLY
1.Use a torque wrench and use the same force to make the force on all sides even.
2.Hydraulic shaping to ensure the flatness and verticality of the product core.
3.Equipped with welding tooling and inspection tools.
High effiency and high flow are the characters we have worked hard to obtain.Highly polished end tank ensures the best heat reflection and appearance.

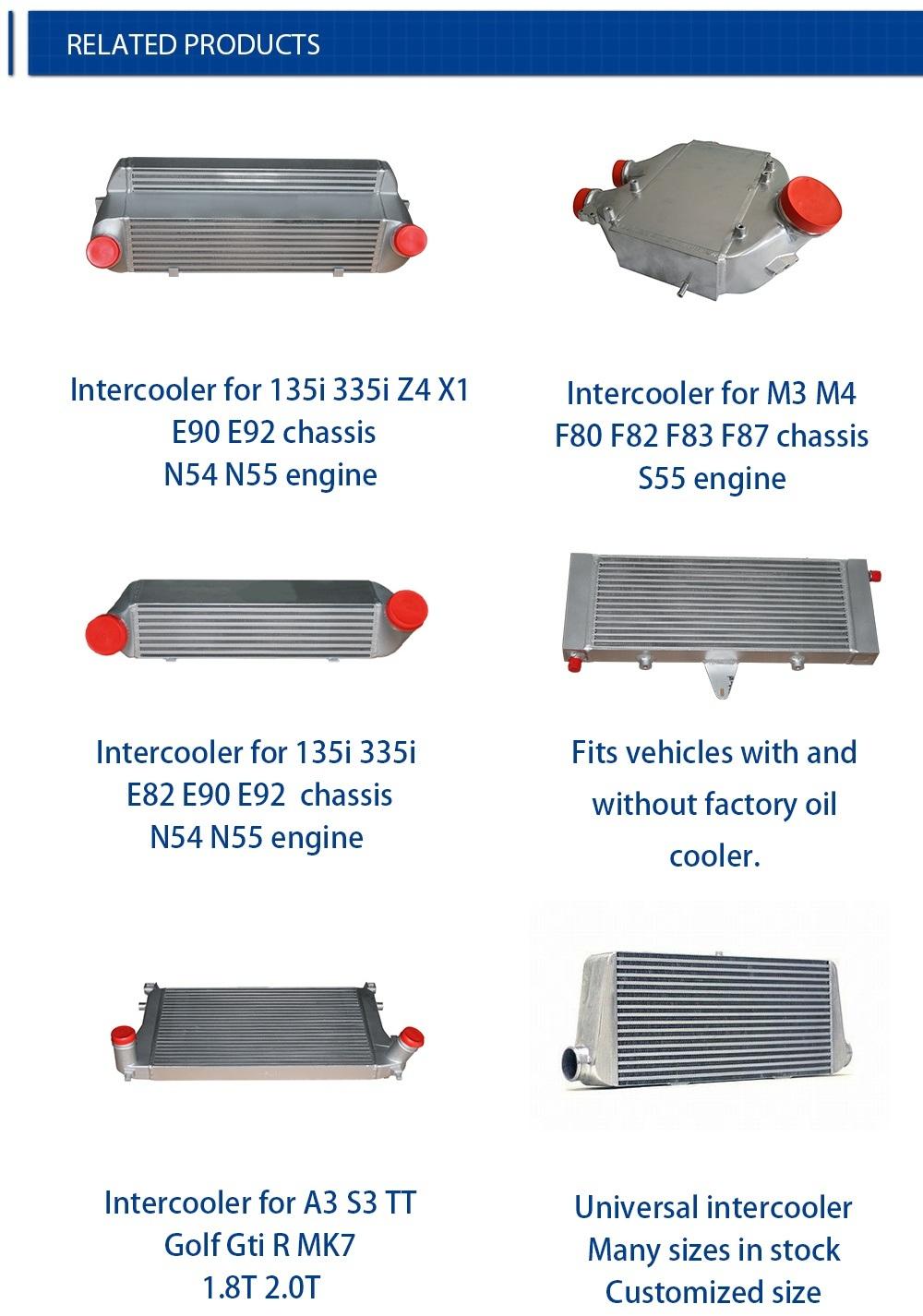

We have following intercoolers.We are also welcome to your own design.pls feel free to contact us if you have any other questions.

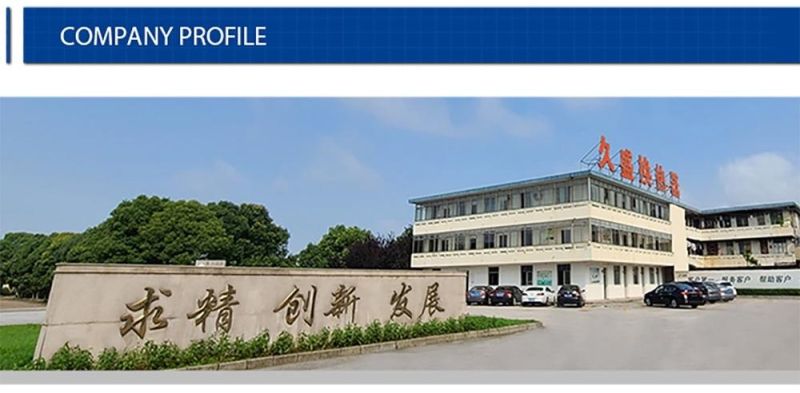

Our company is a professional manufacturer specialized in producing all kinds of aluminum heat exchangers. Our factory is located on the bank of the Taihu Lake & in the west suburb of Wuxi. Our aluminum plate-fin heat exchangers feature high heating efficiency, small size, light weight and strong applicability. Our products are widely applied in engineering machinery, air compressors, vehicle separation, construction machinery separation, hydraulic transmission oil radiators, wind and electricity, electrical locomotive separation and boat separation as well as many other fields. Our products sell well in France, Germany, Italy, the USA, Canada, Japan, Korea and New Zealand.
