Automobile Radiator Aluminum Plate Fin Heat Exchanger Cooling System Oil Cooler Radiator for Excavator for Daewoo
Wuxi Jiushengyuan Science & Technology Co., Ltd.- Body Material：Aluminium
- Certification：ISO9001
- Structure：Plate and Bar
- Radiator Core Type：Bar and Plate
- Name：Oil Cooler Radiator for Excavator for Daewoo
- Material：Aluminum
Base Info
- Model NO.：PLS00037
- Color：Black or Silver
- Cooler Type：Oil Cooler
- Technique Method：Brazed,Welding
- Test：100% Passed
- Service：ODM OEM
- Company Type：Manufacturer
- Keyword：Radiator, Oil Cooler, Intercooler, Heat Exchanger
- Principle：Mixing Heat Exchanger
- Core：Aluminum Heat Exchanger
- Type：Casting Heating Equipment
- Application：Cooler
- Recuperative Heat Exchanger Type：Plate Fin
- Heat Transfer Surface：Plate Heat Exchanger
- Transport Package：Wooden Box or Carton
- Specification：CE, ISO9001
- Trademark：JS Brand
- Origin：Jiangsu, Wuxi
- HS Code：8419500090
- Production Capacity：3000 Tons,Year
Description
Customization
1 . Heat Transmission 5 . Temperture " In'and " out
2 . Liquid Flow Rate 6 . Connection Type / Size
3 . Working Temperature 7 . Painting Requirement
4 . Working Pressure
Please kindly provide us your technical parameters ,then we can design for you
Features
1 . Combination welded cores-air & oil cores
2 . Brazed aluminum core / bar and plate
3 . Excellent for field conversions
4 . Compact design
5 . Light weight
6 . Compact , high performance all aluminum core assembly
7 Could be assembled with fan and fan cover
Introduction
1.Core : high strength, high heat conductivity,high safety coefficient.
2.Sonicleaning : Sonicleaning,High efficiency,little corrosion to metal , few pollution.
3.Vacuum brazing : Strict control of vacuum degree, temperature and time.
4.Argon Welding : Weld Gaps straight appearance , squamous uniform.
5.Test : Air tightessn test and Pressure Text
OUR ADVANTAGE

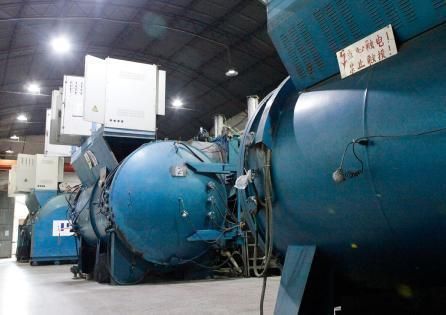

01 VACUUM BRAZING1.We have professonal qualification certificate of brazing operators.Different products adopt different brazing processes and set corresponding load thermocouples.
2.The surface of the brazing seam is complete,continuous,uniform and smooth.No solder accumulation,overflow, splashing exist.No unmelted or cracks on the surface.02 ARGON ARC WELDING
1.We have professional qualification certificate for argon welding operators and Welder Skill Matrix.
2.The crater should be filled up and slightly higher than the base metal.The arc crater must not have cracks and shrinkage holes.Backing plate welding is usedfor arc startng and closing.
3.Special processes such as double-sided welding,multi-layer welding,and penetration welding eliminate welding defects and ensure welding quality.
4.The weld surface is straight,beautiful,with uniform scales and uniform height.No surface pores,cracks,obvious bens and serious welds.
5.Develop different standard welding operation onstructions for different products(SOP).

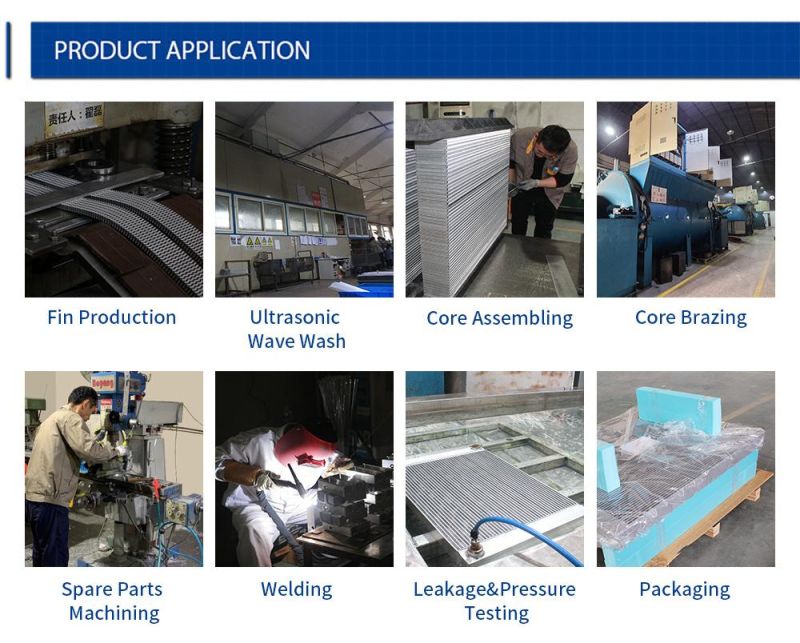

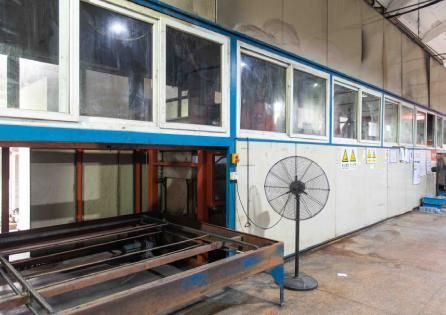

03 CLEANINGBefore brazing,in addition to ultrasonic cleaning(removing oil anddust),alkali cleaning and acid cleaning (Remove surface oxide film)are also carried out.04 ASSEMBLY

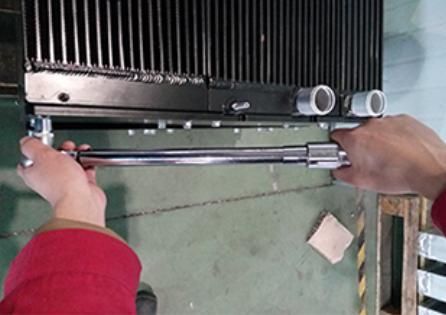

1.Use a torque wrench and use the same force to make the force on all sides even.
2.Hydraulic shaping to ensure the flatness and verticality of the product core.
3.Equipped with welding tooling and inspection tools.
High effiency and high fiow are the characteristics we have worked hard to obtain.Highly polished end tank ensure the best heat reflection and appearance.

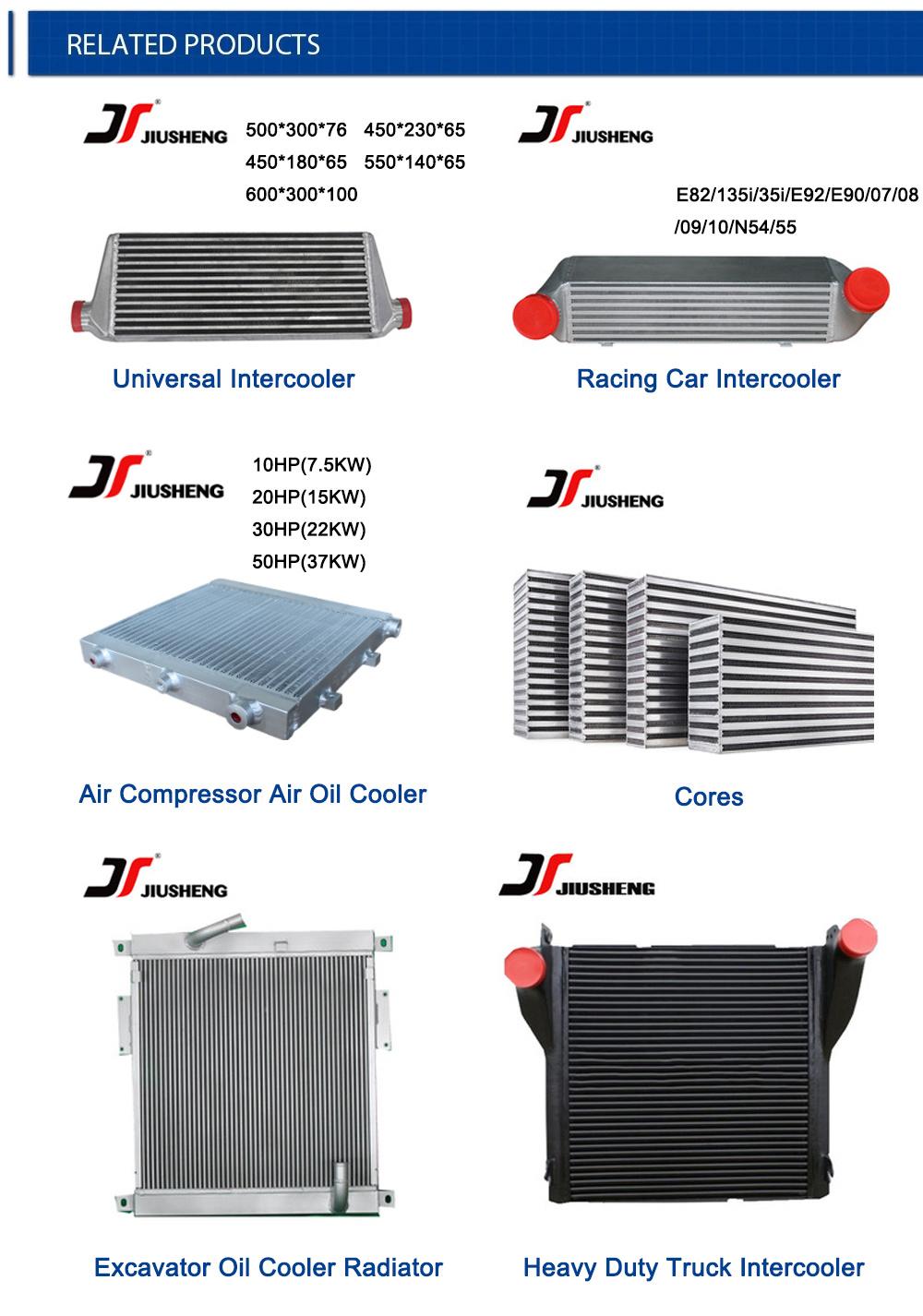

We have following intercoolers.We are also welcome your own design.pls feel free to contact us if you have any other questions.

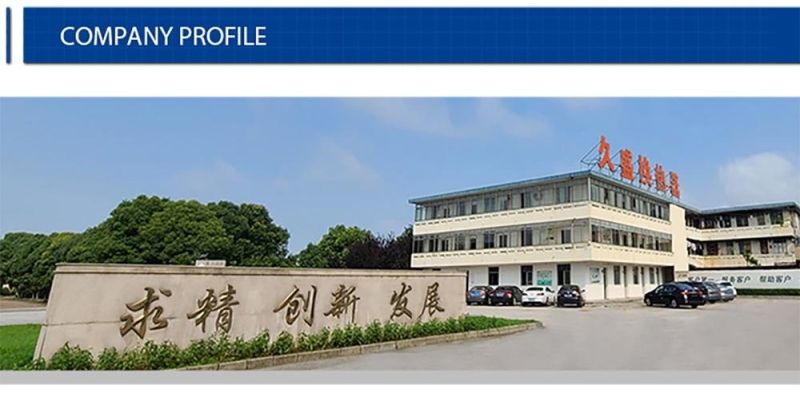

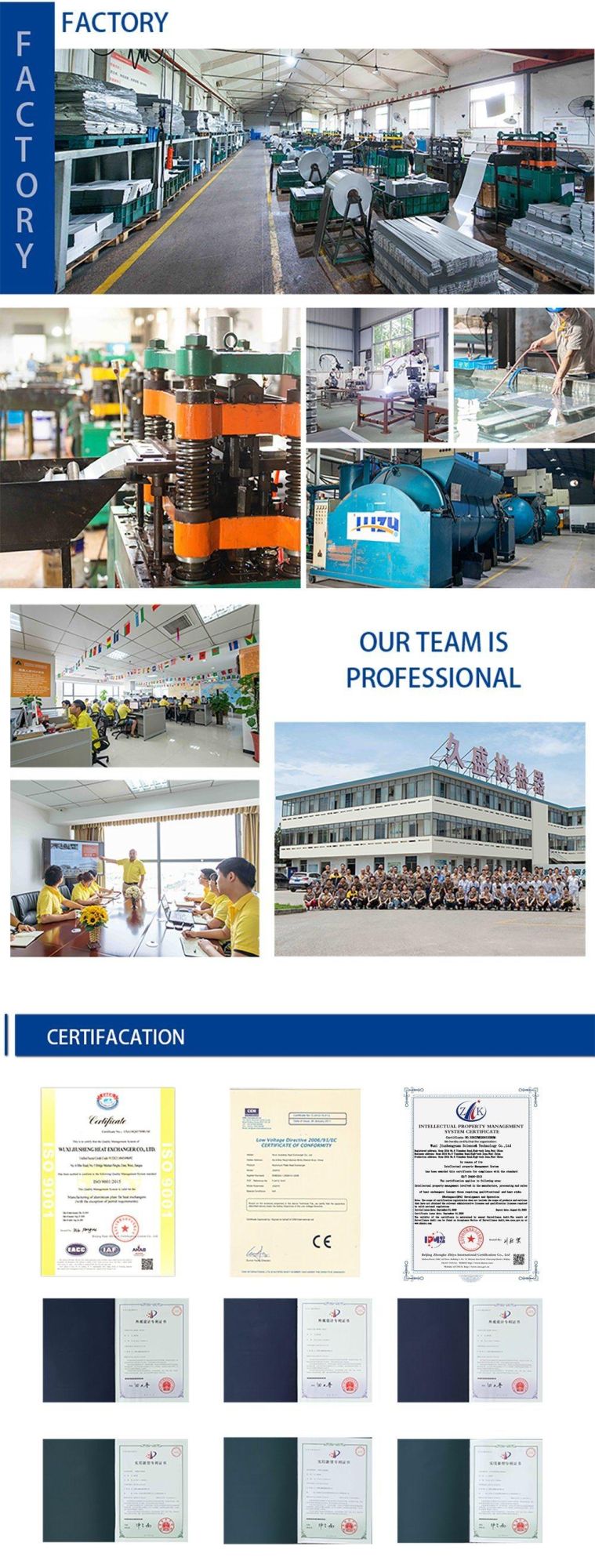

Our company is a professional manufacturer specialized in producing all kinds of aluminum heat exchangers. Our factory is located on the bank of the Taihu Lake & in the west suburb of Wuxi. Our aluminum plate-fin heat exchangers feature high heating efficiency, small size, light weight and strong applicability. Our products are widely applied in engineering machinery, air compressors, vehicle separation, construction machinery separation, hydraulic transmission oil radiators, wind and electricity, electrical locomotive separation and boat separation as well as many other fields. Our products sell well in France, Germany, Italy, the USA, Canada, Japan, Korea and New Zealand.
