• Model NO.：DPF
• Automobile Chassis Noise：The Brake Noise
• Component：Catalytic Converter
• Main Market：Southeast Asia
• Material：Cordierite
• Cell：100-600cpsi
• Application：as Catalyst Used in Automobile,Motorcycle
• Color：White
• Size：Dia144X152.4mm, Dia228X305mm, Dia144X76mm etc
• Transport Package：Wooden Box,Carton Box with Pallet
• Trademark：DXY
• Origin：China
• HS Code：84213990
• Production Capacity：100, 000pieces,Month

ItemTechnical indexChemical CompositionSiO250.9 ± 1%AL2O335.2 ± 1%MgO13.9 ± 1%Physical PropertiesCompression Strength in normal temperature≥ 10MpaThermal expansion coefficient≤ 1.2 × 10-6 / ° CWall thickness of hole density of 100 hole/   in20.42-0.50mmWall thickness of hole density of 200 hole/   in20.32-0.40mmApparent porosity≥ 50%Average hole diameter10-15 micronHighest Working Temperature1400  ° CSoot-filtration efficiency≥ 95%

Shape	Hole density (hole/in2)	Size (mm)	Volume(litre)
Round	100/200 CPSI	Φ 127 x 152.4	1.9308
Round	100/200 CPSI	Φ 144x150	2.4432
Round	100/200 CPSI	Φ 144x152.4	2.4823
Round	100/200 CPSI	Φ 144x254	4.1372
Round	100/200 CPSI	Φ 150x150	2.6511
Round	100/200 CPSI	Φ 190x200	5.6713
Round	100/200 CPSI	Φ 190x203	5.7564
Round	100/200 CPSI	Φ 190x305	8.6487
Round	100/200 CPSI	Φ 228x305	12.4542
Round	100/200 CPSI	Φ 240x100	4.5245
Round	100/200 CPSI	Φ 240x240	10.8588
Round	100/200 CPSI	Φ 240x305	13.7997
Round	100/200 CPSI	Φ 260x305	16.1954
Round	100/200 CPSI	Φ 267x305	17.0792
Round	100/200 CPSI	Φ 286x267	17.1550
Round	100/200 CPSI	Φ 286x305	19.5965
Round	100/200 CPSI	Φ 286x355	22.8090
Round	100/200 CPSI	Φ 286x381	24.4795
Race track	100 CPSI	Φ 188x103x145	2.2055
Assemble track	100 CPSI	Φ 374x270x317	27.0537

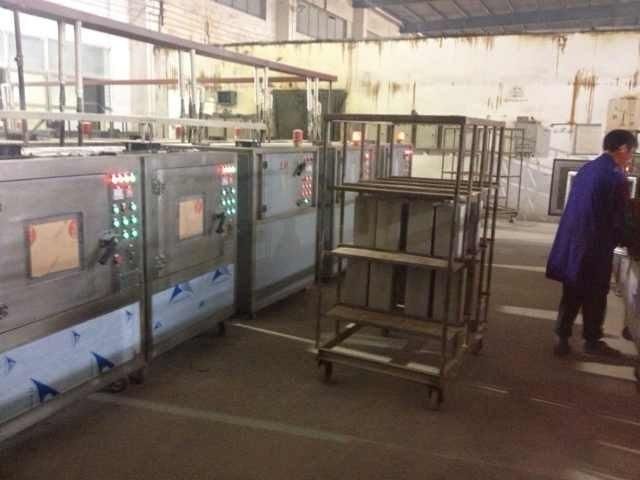

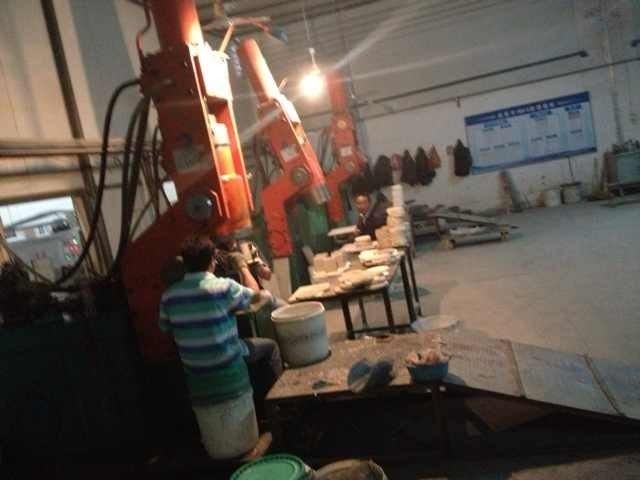

Factory



Customers pay visits to our factory for good cooperation!!!
