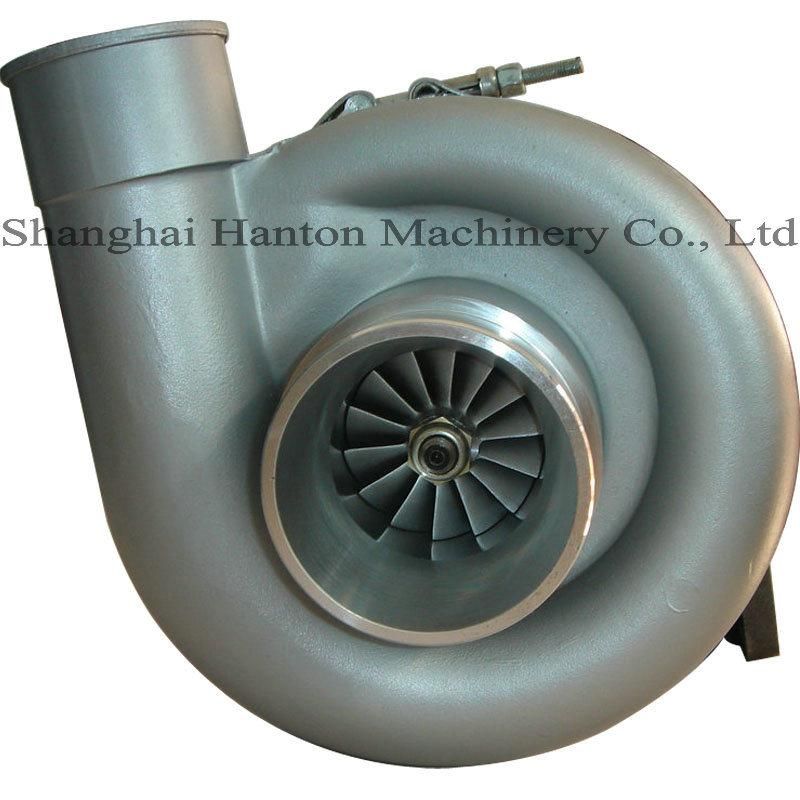

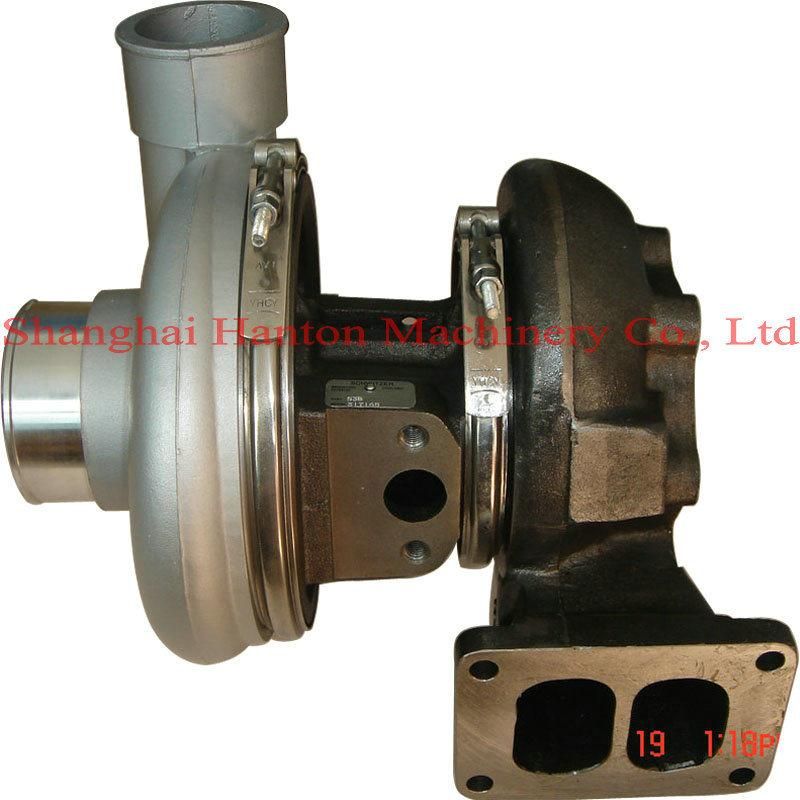

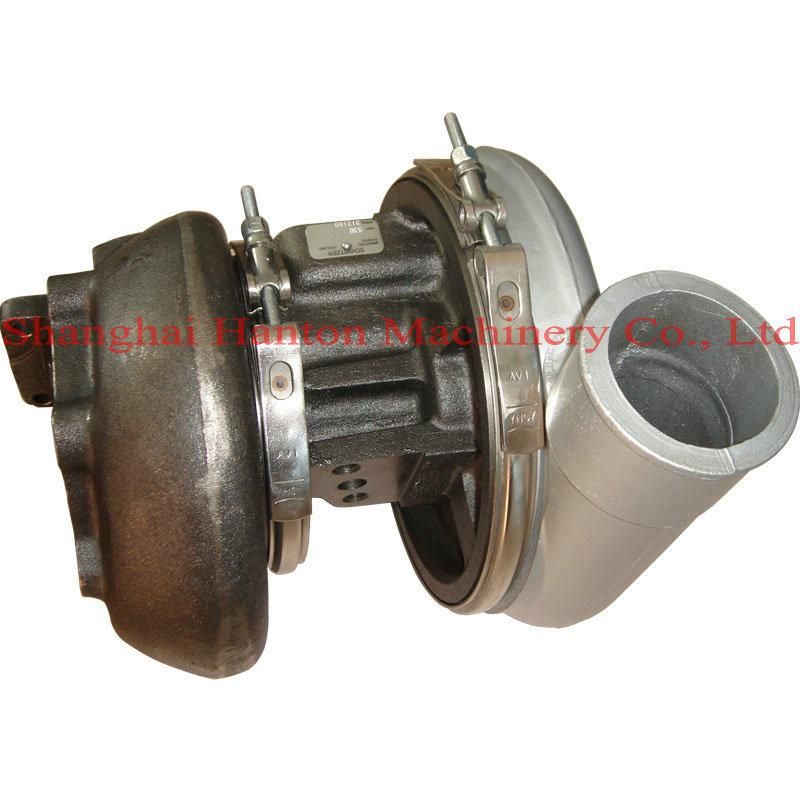

Deutz MWM TBD234-V12 Diesel Engine Borgwarner Schwitzer S3b Turbocharger

Shanghai Hanton Machinery Co., Ltd.
  • Type：ETS Exhaust-Gas-Turbo-Super-Charger
  • Body Material：Alloy
  • Certification：TS16949, ISO9001, CE, E-Mark, RoHS, COP, CCC
  • Electric Turbocharger Type：Axialflow
  • ETS Component：Compressor
  • ETS Type：Axialflow

Base Info

  • Model NO.：S3B 04223062 105292000069
  • Application：Deutz
  • Brand：Borgwarner Schwitzer
  • Engine Brand：Deutz Mwm
  • Engine Model：Tbd234 V12
  • Manufacturer：Borgwarner Schwitzer
  • Manufacturer Model：S3b
  • Net Weight：16.9kg
  • Gross Weight：18kg
  • Overall Dimension：310*270*350mm
  • Transport Package：Paper Box
  • Trademark：Deutz
  • Origin：China
  • HS Code：840991
  • Production Capacity：1000 Pieces Per Month

Description

Basic Info.

Model NO. S3B 04223062 105292000069 Application Deutz Brand Borgwarner Schwitzer Engine Brand Deutz Mwm Engine Model Tbd234 V12 Manufacturer Borgwarner Schwitzer Manufacturer Model S3b Net Weight 16.9kg Gross Weight 18kg Overall Dimension 310*270*350mm Transport Package Paper Box Trademark Deutz Origin China HS Code 840991 Production Capacity 1000 Pieces Per Month

Product Description

Deutz MWM TBD234-V12 diesel engine BorgWarner Schwitzer S3B turbocharger, for deutz MWM TBD234 series diesel engines, with TBD234 series spare part list as:

BrandModelDescriptionPart NumberPart Number
DeutzTBD234Piston623401603027
DeutzTBD234STD conrod bearing623404306007
DeutzTBD2340.25mm conrod bearing623484306027
DeutzTBD2340.50mm conrod bearing623484306047
DeutzTBD2340.75mm conrod bearing623484306067
DeutzTBD2341.00mm conrod bearing623484306087
DeutzTBD234STD main bearing623404300017
DeutzTBD2340.25mm main bearing623484300037
DeutzTBD2340.50mm main bearing623484300057
DeutzTBD2340.75mm main bearing623484300077
DeutzTBD2341.00mm main bearing623484300097
DeutzTBD234Oil filter605412970039
DeutzTBD234Injector bracket623406530034
DeutzTBD234Low emission pistonP23401600084
DeutzTBD234Low emission piston ring123400191357
DeutzTBD234PistonE23401603026
DeutzTBD234PistonEM0207140090
DeutzTBD234PistonEM0102140047
DeutzTBD234Injector nozzle105302000004
DeutzTBD234Injecotr105302000001
DeutzTBD234Turbocharger105292000069S3B
DeutzTBD234Turbocharger105292000062
DeutzTBD234Turbocharger105292000061
DeutzTBD234Turbocharger105292000073
DeutzTBD234Turbocharger repair kit106907210008
DeutzTBD234High pressure fuel pump623407253266
DeutzTBD234Starting motor605720100101
DeutzTBD234Starting motor605720520005
DeutzTBD234Starting motor0901-0001416022
DeutzTBD234Alternator605710100146
DeutzTBD234Water pump623407310087


for generator set, water pump set, agricultural tractors, special vehicles, etc, manufactured by former
Deutz joint venture in China. We also sell other Deutz models, including 912/913
series, 1015 series, 413/513 series, 1013/2012 series, 226B series,TBD234 series,
TBD620 series, etc.
Besides, we also sell other brands, including Cummins, Perkins, Fiat Iveco, VM, CAT, Isuzu,
Toyota, Nissan, Toyota, Yuchai, Weichai, Changchai, etc.
