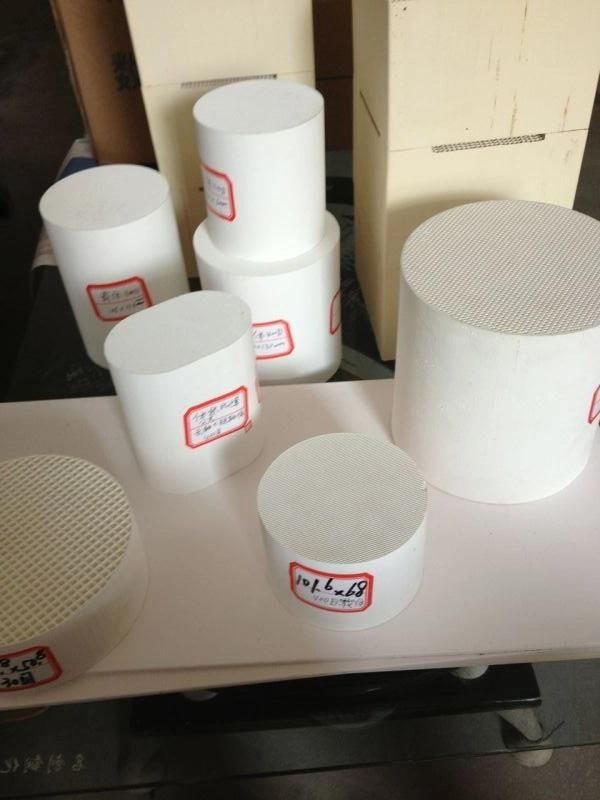

Catalyst Carrier Honeycomb Ceramic Cordierite Substrate

Beihai Xiaoming International Import and Export Trading Co., Ltd.
  • Type：Catalytic Converter
  • Body Material：Ceramic
  • Discharge Standard：Euroii-V
  • Certification：ISO9001
  • Noise Source：Mechanical Noise and Combustion
  • The Noise of Engine：Mechanical Noise

Base Info

  • Model NO.：CHS
  • Automobile Chassis Noise：The Brake Noise
  • Component：Catalytic Converter
  • Material：Cordierite
  • Common Specification：Diameter<120mm,Diameter<200mm,etc
  • Cell：100-600cpsi
  • Color：White
  • Hole Size：0.88-2.2mm
  • Wall Thickness：0.17-0.35mm
  • Transport Package：Wooden Box and Pallet,Packed as Customers′ Need
  • Specification：150x150x50mm, 150x150x150mm, dia100x100mm
  • Trademark：DXY
  • Origin：China
  • HS Code：6909190000
  • Production Capacity：100, 000pieces,Month

Description

ItemTest resultTest methodCordierite principal crystalline phase (wt %)≥90X-RayRT Mpa
(Mpa)A axis ≥16universal materials testerB axis≥2C axis≥0.15Water absorption(%)≥20gravimetric hygrometerSoftening temperature(celsius degree)≥1360high-temperature
electric resistance furnaceCoefficient of thermal expansion
(R~800celsius degree) (cm/cm/celsius degree)≤1.5×10-6
(550celsius degree)thermal dilatometer ≤1.2×10-6
(800celsius degree)Maximum service temperature (celsius degree)1400/Thermal shock resistance
(R~850celsius degree)30 mins  not crack, 5 circlesAir cooling

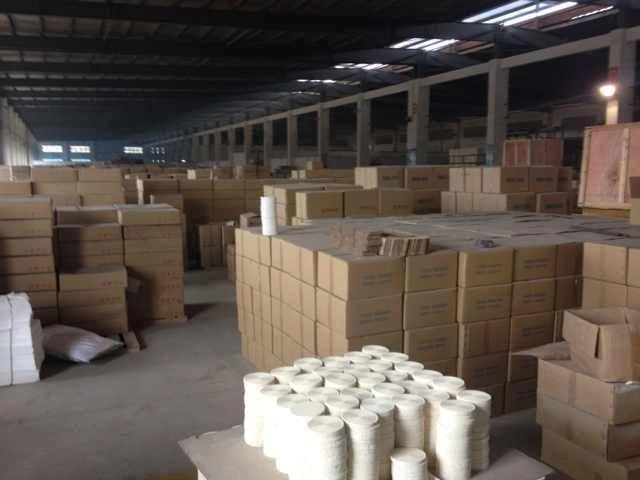

Warehouse
Catalyst Carrier Honeycomb Ceramic Cordierite Substrate   Catalyst Carrier Honeycomb Ceramic Cordierite Substrate

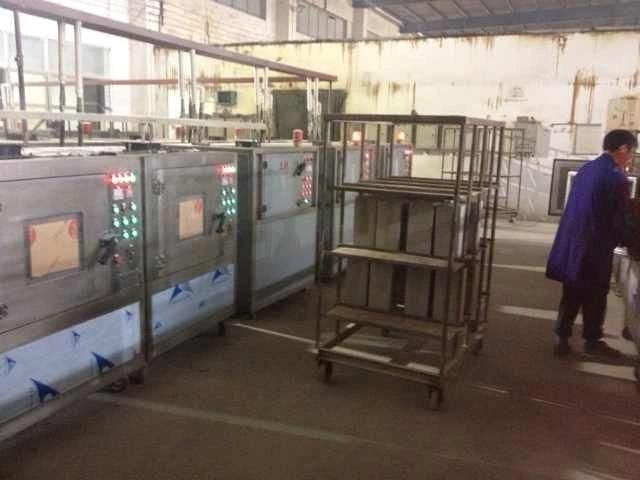

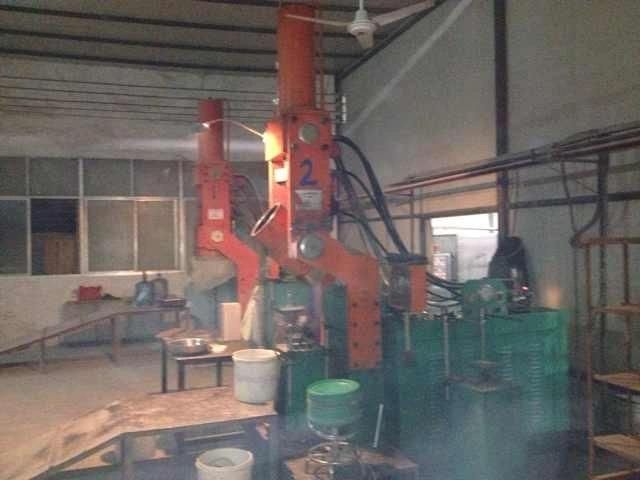

Factory and Package!!!
Catalyst Carrier Honeycomb Ceramic Cordierite Substrate

Catalyst Carrier Honeycomb Ceramic Cordierite Substrate

Catalyst Carrier Honeycomb Ceramic Cordierite Substrate
