Gt1749s 708337-5001s Turbocharger for D4al

Refone Auto Power Co., Ltd.
  • Type：ETS Exhaust-Gas-Turbo-Super-Charger
  • Body Material：Iron
  • Certification：ISO9001, CE, CCC
  • Electric Turbocharger Type：Axialflow
  • ETS Component：Turbine
  • ETS Type：Runoff

Base Info

  • Model NO.：GT1749S
  • Application：Hyundai
  • Brand：Refone
  • Engine：D4al
  • Fuel：Diesel
  • Turbo OEM Number：2823041720, 28230-41720
  • Chra：433352-0018 (433352-5018s, 1000010022)
  • Displacement：3.3L, 3298,3300 CCM, 4 Cylinders
  • Transport Package：1. Mold Foam 2. Plastic Bag 3. Strong Carton
  • Specification：ISO9001
  • Trademark：refone
  • Origin：China
  • HS Code：8414803090
  • Production Capacity：20000PCS,Year

Description

Basic Info.

Model NO. GT1749S Application Hyundai Brand Refone Engine D4al Fuel Diesel Turbo OEM Number 2823041720, 28230-41720 Chra 433352-0018 (433352-5018s, 1000010022) Displacement 3.3L, 3298/3300 CCM, 4 Cylinders Transport Package 1. Mold Foam 2. Plastic Bag 3. Strong Carton Specification ISO9001 Trademark refone Origin China HS Code 8414803090 Production Capacity 20000PCS/Year

Product Description

GT1749S 708337-5001S turbocharger for D4AL

Product Description
Part Number708337-5001S
Previous Version708337-0001, 708337-1
OE Number2823041720, 28230-41720
Year1999-
DescriptionMighty Truck, Chorus Bus
Turbo ModelGT1749S
CHRA433352-0018 (433352-5018S, 1000010022)
EngineD4AL
Engine ManufacturerHyundai
Displacement3.3L, 3298/3300 ccm, 4 Cylinders
KW81/187
RPM Max3400
FuelDiesel
Angle α (compressor housing)90
Angle β (turbine housing)90
Bearing Housing434578-0012/434578-0014
Turbine Wheel433257-0001 (434714-0003) (Ind. 37.49 mm, Exd. 44.55 mm, 9 Blades)(1100016102)
Comp. Wheel433256-0003 (Ind. 38. mm, Exd. 49. mm, Trm 60, 6+6 Blades, Extended back disc type)
Back plate721085-0001/434689-0002 (1102015316/1102015314)
Repair Kit732252-0001 (1102015756)
Turbine Housing435788-0049
Compressor Cover435791-0093/702208-0001
Actuator451792-0004
settings Waste gate (pressure)1.040-1.080/1.37-1.410 bar
settings Waste gate (lift shaft)0.38/4.00 mm
Gasket (turbine inlet)210621 (Inox Steel)
Gasket (oil outlet)210243 (Paper)
Replaced by708337-0004
ManufacturerHoneywell-Garrett

Applications

1999- Hyundai Mighty 2 Truck, Chrorus Bus with D4AL Engine

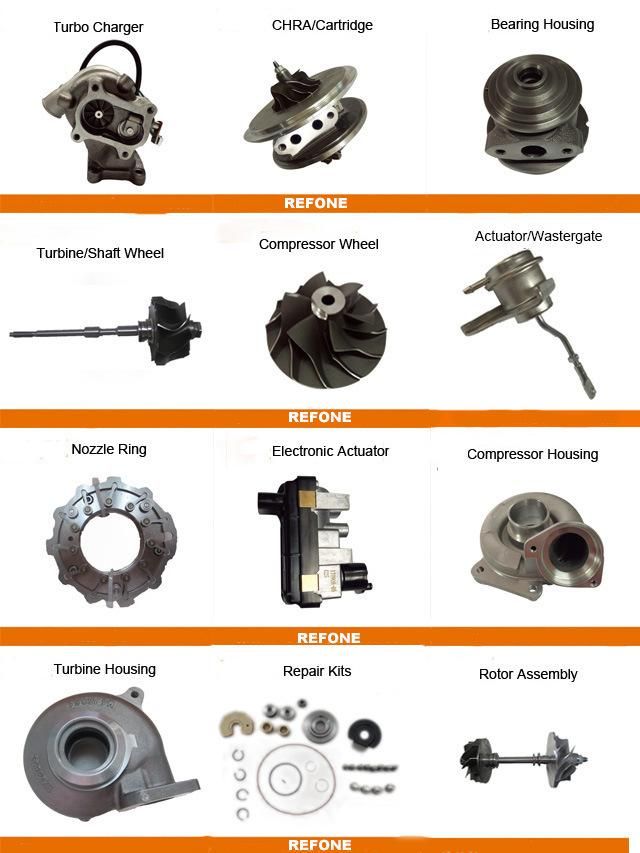

Related Turbo Parts
  Gt1749s 708337-5001s Turbocharger for D4al

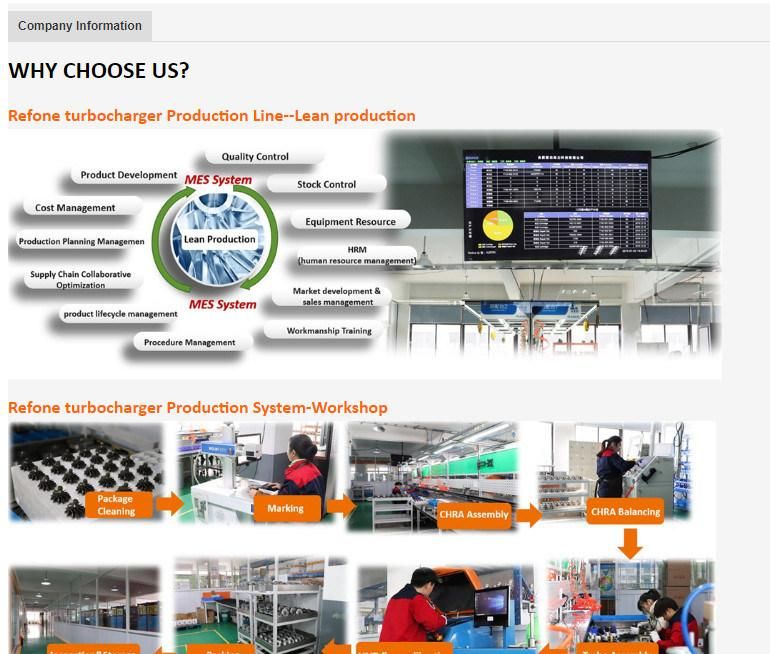

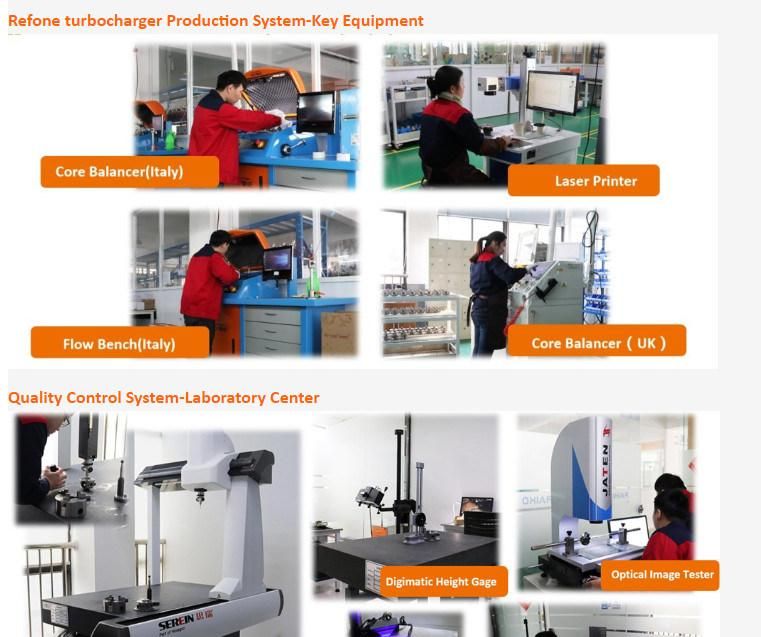

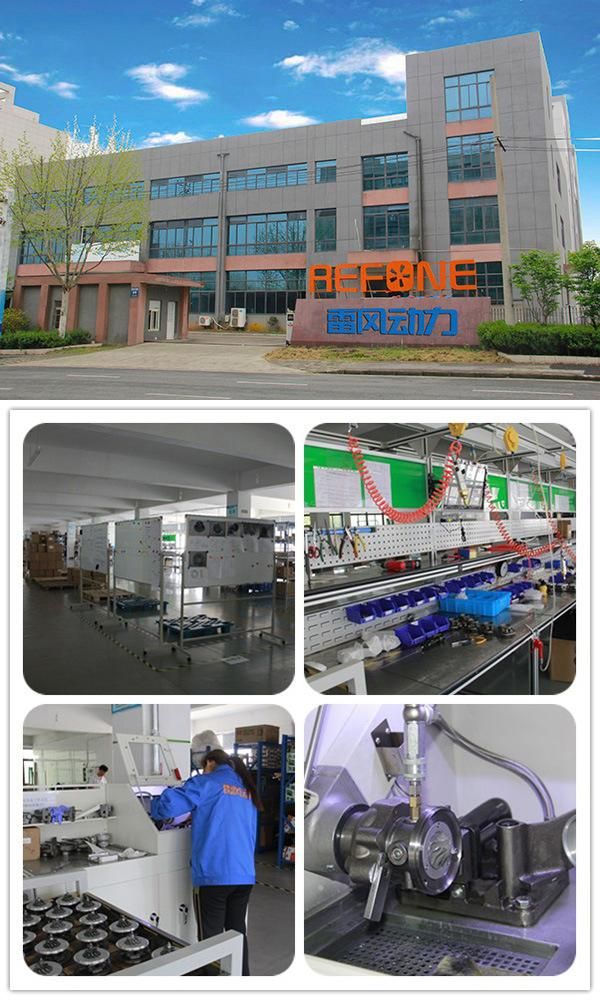

Factory Information
 Gt1749s 708337-5001s Turbocharger for D4al
Packing Information

·Inner Packing: Waterproof plastic packing
·Outer Packing: Export carton with cushioning and shockproof packaging
·Customized packing is available
  Gt1749s 708337-5001s Turbocharger for D4alOur Service
  1. All items are brand new, never been used, still in original packaging.
  2. Do not hesitate to contact us any time before and after your purchase, we strive our best to provide the most professional customer service.
  3. Sample order or trial order is acceptable.
  4. We accept OEM/ODM/Customized service and buyer label offered.
  5. Professional installation is highly recommended.
  6. 12 months quality warranty.Gt1749s 708337-5001s Turbocharger for D4alGt1749s 708337-5001s Turbocharger for D4alGt1749s 708337-5001s Turbocharger for D4alGt1749s 708337-5001s Turbocharger for D4alGt1749s 708337-5001s Turbocharger for D4alGt1749s 708337-5001s Turbocharger for D4alGt1749s 708337-5001s Turbocharger for D4alGt1749s 708337-5001s Turbocharger for D4alGt1749s 708337-5001s Turbocharger for D4al
Delivery Time

Mode of TransportDelivery timeWeight
By Seaabout 30-50 days>1cbm
By Airabout 1 week>100kg
DHL, TNT, FedExabout 4-7 days<100kg

If you need more information, please contact us. Thank you!
