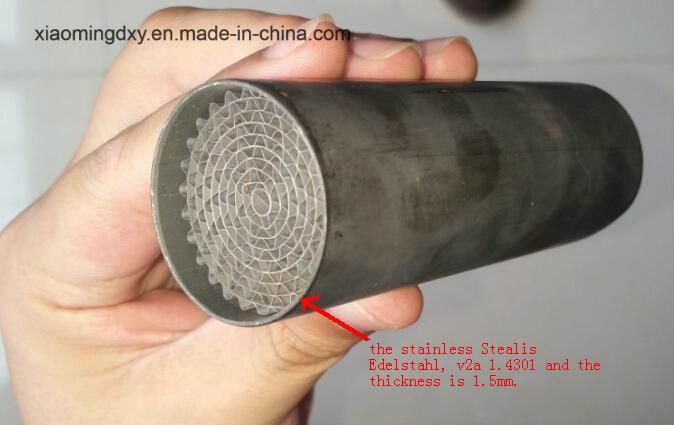

Auto Exhaust System Metal Honeycomb Catalyst Substrate
Beihai Xiaoming International Import and Export Trading Co., Ltd.- Type：Catalytic Converter
- Body Material：Alloy
- Discharge Standard：Euro V
- Certification：ISO9001, TS16949
- Noise Source：The Noise of Engine
- The Noise of Engine：Mechanical Noise
Base Info
- Model NO.：MHS
- Automobile Chassis Noise：Transmission Noise
- Component：Catalytic Converter
- Main Market：North America
- Material：SS304, SS316,Fe-Cr-Al Alloy
- Usage：as Catalyst Used in Automobile,Motorcycle
- Thickness(mm)：0.04-0.1
- Width(mm)：10-250
- Max Working Temperature：1100°c
- Max Service Temperature：1250°c
- Coefficient of Line Expansion：14.7
- Transport Package：Wooden Box and Pallet,Packed as Customers′ Need
- Specification：Diameter<120mm,Diameter<200mm, etc
- Trademark：DXY
- Origin：China
- HS Code：84216990
- Production Capacity：100, 000pieces,Month
Description
Fe-Cr-Al with RE, Zr/Ti additions high temperature oxidation resistant special alloy
Domestic FeCrAl(2073/216)
Import FeCrAl(1.4725/1.4767)Nickel base alloy or Austenitic heat resistant stainless steel (SUS304)
Domestic FeCrAl(2073/216)
Import FeCrAl(1.4725/1.4767)
| Thickness(mm) | 0.04-0.1 |
| Width(mm) | 10-250 |
| Main Chemical composition | Cr:19.0-22.0 , Al:5.0-7.0 , Fe:rest , Re:opportune |
| Max Service temperature | 1250 ° C |
| Thermal conductivity | 63.2 |
| Resistivity at 20 ° C | 1.42 |
| Density(g/cm3) | 7.16 |
| Coefficient of line expansion | 14.7 |
| Melting point(approx.) | 1500 |
| Tensile strength | 630-780 |
| Elongation at rupture | >12 |
| Variation of area | 65-75 |
| Repeat bending frequency | >5 |
| Hardness | 200-260 |
| Thickness(mm) | 0.04-0.1 |
| Width(mm) | 10-250 |
| Main Chemical composition | Cr:19.0-22.0 , Al:5.0-7.0 , Fe:rest , Re:opportune |
| Max Service temperature | 1250 ° C |
| Thermal conductivity | 63.2 |
| Resistivity at 20 ° C | 1.42 |
| Density(g/cm3) | 7.16 |
| Coefficient of line expansion | 14.7 |
| Melting point(approx.) | 1500 |
| Tensile strength | 630-780 |
| Elongation at rupture | >12 |
| Variation of area | 65-75 |
| Repeat bending frequency | >5 |
| Hardness | 200-260 |
