Gt1749s 715843-0001 28200-42600 Cartridge for Hyundai Commercial H100 4D56 Turbocharger

Refone Auto Power Co., Ltd.
  • Type：ETS Exhaust-Gas-Turbo-Super-Charger
  • Body Material：Iron
  • Certification：ISO9001, CE, CCC, SGS
  • Application：Hyundai
  • Brand：Refone
  • Part No.：715843-0001, 715843-5001s

Base Info

  • Model NO.：GT1749S
  • Chra：433352-0031, 433352-5031s
  • Turbo Model：Gt1749s
  • Engine Model：4D56TCI, D4bh (4D56 TCI) Electronic, 4D56TCI Euro-
  • Fuel：Diesel
  • Displacement：2.5L, 2476 CCM, 4 Cylinders
  • Kw：100,136 HP
  • Transport Package：1. Mold Foam 2. Plastic Bag 3. Strong Carton
  • Specification：SGS certified
  • Trademark：REFONE
  • Origin：Hefei, Anhui, China
  • HS Code：8414803000
  • Production Capacity：50000PCS,Year

Description

Basic Info.

Model NO. GT1749S Chra 433352-0031, 433352-5031s Turbo Model Gt1749s Engine Model 4D56TCI, D4bh (4D56 TCI) Electronic, 4D56TCI Euro- Fuel Diesel Displacement 2.5L, 2476 CCM, 4 Cylinders Kw 100/136 HP Transport Package 1. Mold Foam 2. Plastic Bag 3. Strong Carton Specification SGS certified Trademark REFONE Origin Hefei, Anhui, China HS Code 8414803000 Production Capacity 50000PCS/Year

Product Description

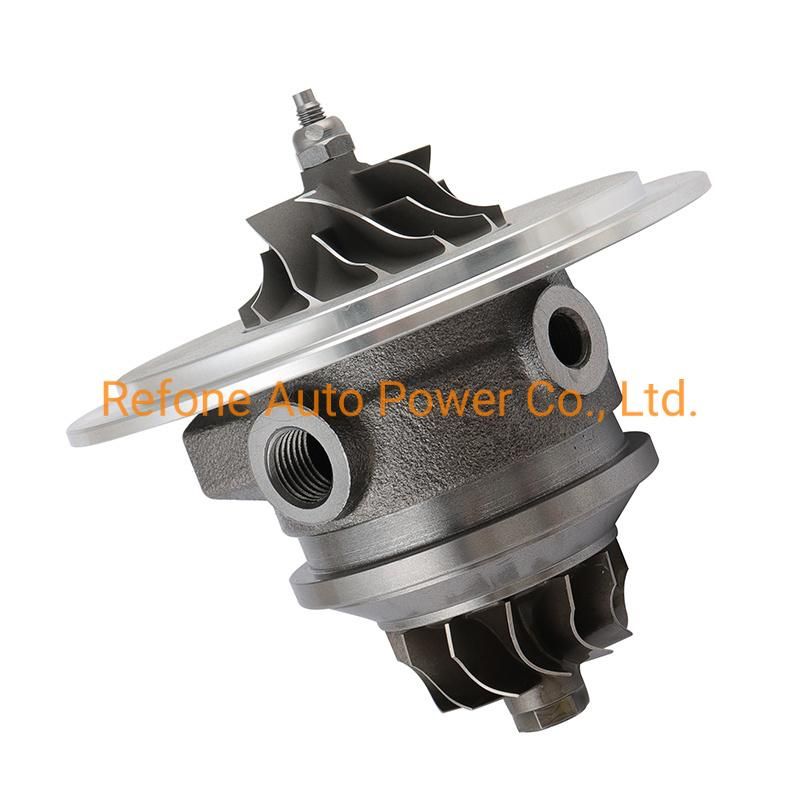

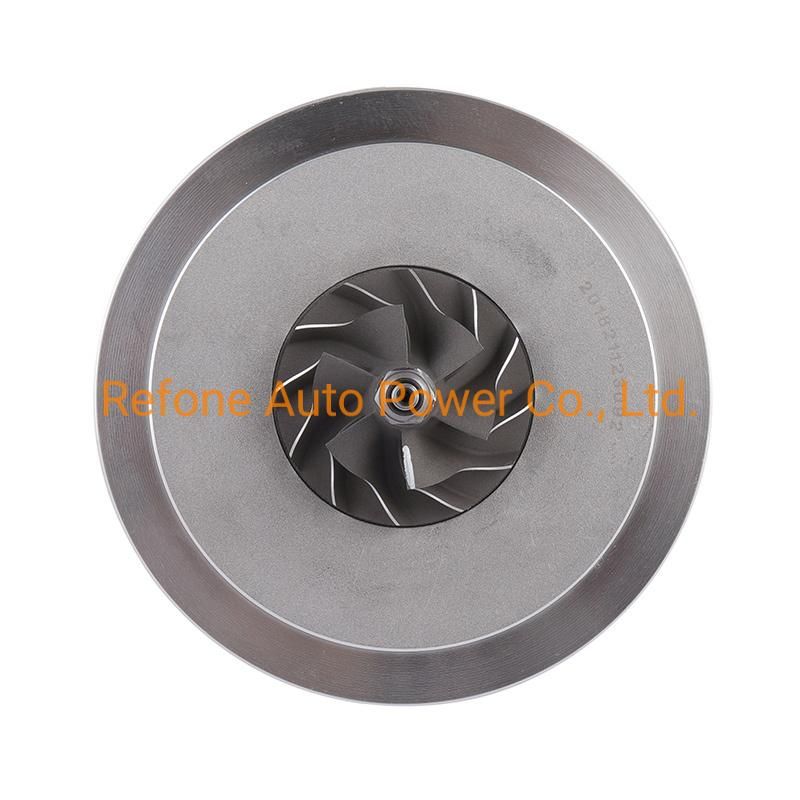

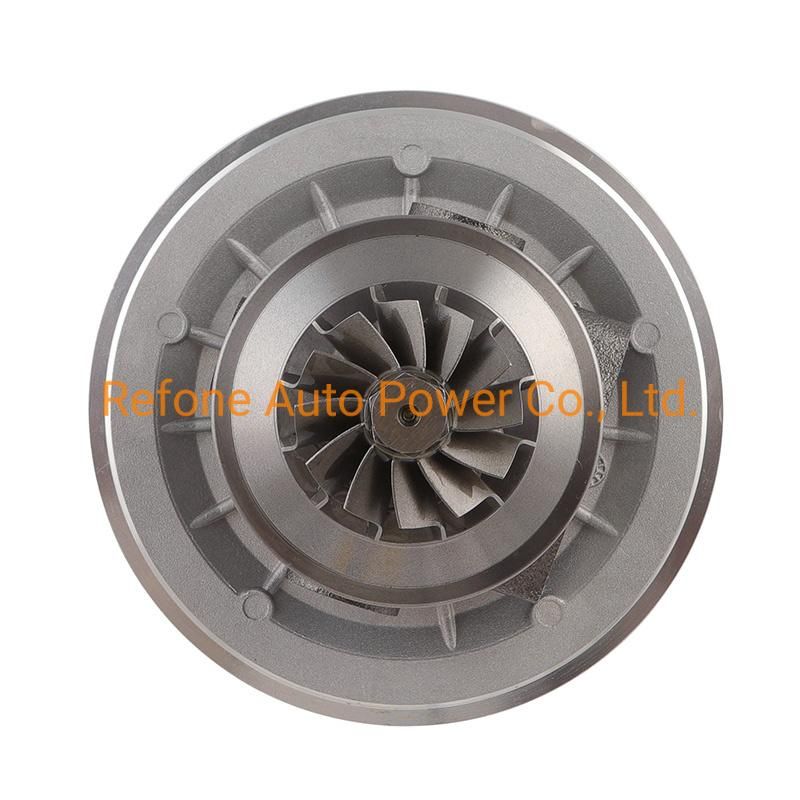

Gt1749s 715843-0001 28200-42600 cartridge for Hyundai Commercial H100 4D56 Turbocharger
Gt1749s 715843-0001 28200-42600 Cartridge for Hyundai Commercial H100 4D56 TurbochargerGt1749s 715843-0001 28200-42600 Cartridge for Hyundai Commercial H100 4D56 TurbochargerGt1749s 715843-0001 28200-42600 Cartridge for Hyundai Commercial H100 4D56 TurbochargerGt1749s 715843-0001 28200-42600 Cartridge for Hyundai Commercial H100 4D56 Turbocharger

Product Description

Part Number715843-5001S
Previous Version715843-0001, 715843-1
OE number2820042600, 28200-42600
Year2001-
DescriptionCommercial
CHRA433352-0031 (433352-5031S)
Turbo ModelGT1749S
Engine4D56TCI, D4BH (4D56 TCI) Electronic, 4D56TCI Euro-3
Displacement2.5L, 2476 ccm, 4 Cylinders
KW100/136 HP
RPM Max3800
FuelDiesel
Bearing Housing436132-0003/434578-0012
Turbine Wheel434714-0021 NEW IN STOCK
Comp. Wheel436132-0003
Back plate433254-0003/433294-0002
Repair Kit732252-0001
Turbine Housing452540-0003 K
Compressor Cover435791-0104
Turbine Housing AR0.4
Actuator432340-0112
Settings Waste gate (pressure)0920-0950 bar
Settings Waste gate (lifting rod)1.00 mm
Gasket (turbine inlet)210501
Gasket (turbine outlet)210525
Gasket oil inlet210023
Gasket (oil outlet)210243


Applications

2001- Hyundai Commercial Starex(H1) with D4BH (4D56 TCI) Electronic Engine
2001- Hyundai Commercial H100, Satellite with 4D56TCI Engine
2001- Hyundai One Ton with 4D56TCI Euro-3 Engine

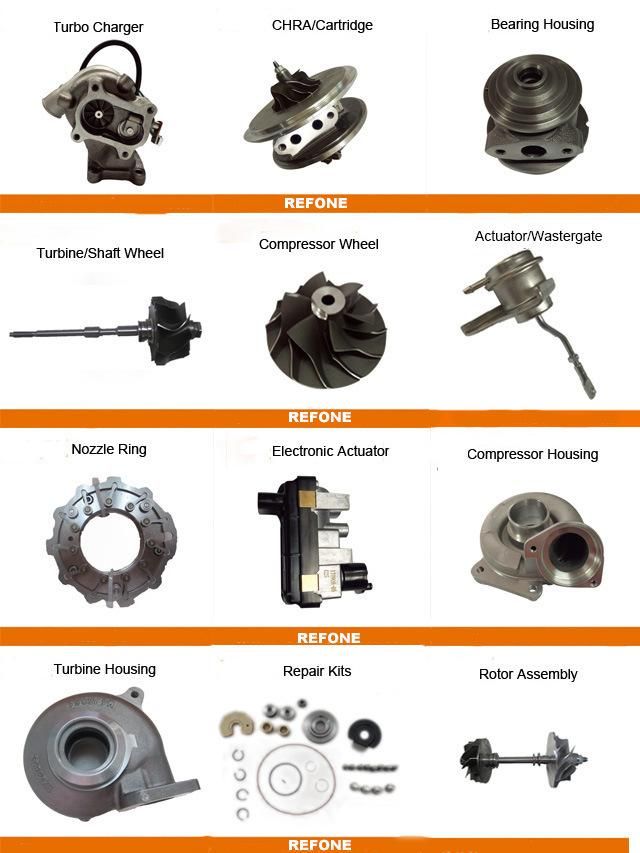

Related Turbo Parts
  Gt1749s 715843-0001 28200-42600 Cartridge for Hyundai Commercial H100 4D56 Turbocharger

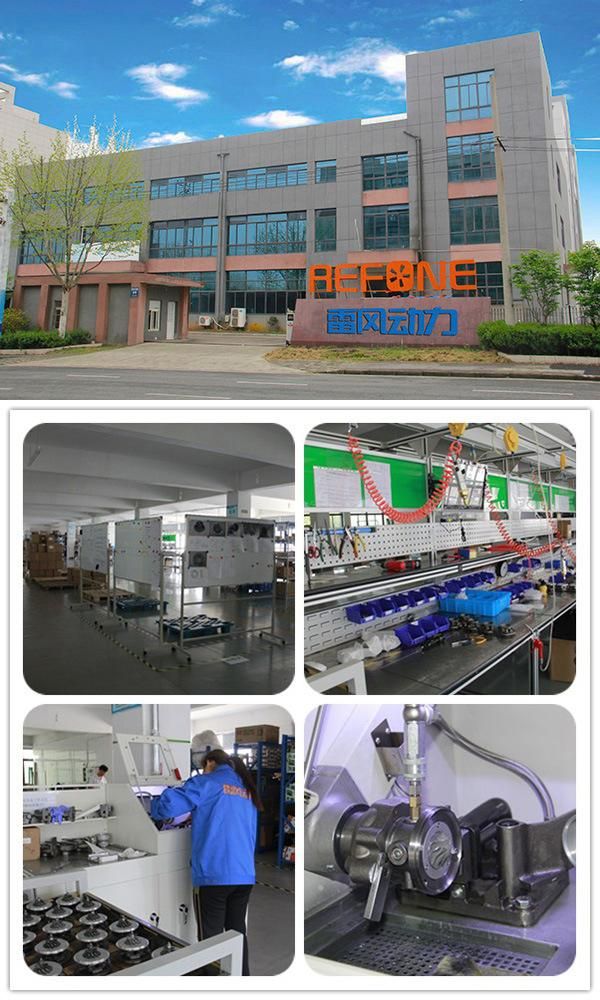

Factory InformationGt1749s 715843-0001 28200-42600 Cartridge for Hyundai Commercial H100 4D56 Turbocharger
Packing Information

·Inner Packing: Waterproof plastic packing
·Outer Packing: Export carton with cushioning and shockproof packaging
·Customized packing is available Gt1749s 715843-0001 28200-42600 Cartridge for Hyundai Commercial H100 4D56 Turbocharger
Our Service
  1. All items are brand new, never been used, still in original packaging.
  2. Do not hesitate to contact us any time before and after your purchase, we strive our best to provide the most professional customer service.
  3. Sample order or trial order is acceptable.
  4. We accept OEM/ODM/Customized service and buyer label offered.
  5. Professional installation is highly recommended.
  6. 12 months quality warranty.
Delivery Time

Mode of TransportDelivery timeWeight
By Seaabout 30-50 days>1cbm
By Airabout 1 week>100kg
DHL, TNT, FedExabout 4-7 days<100kg
