• Model NO.：GT1546S
• Description：Citroen, Peugeot
• Part Number：706977-0001, 706977-0003, 706977-5001s
• Balancing：High Speed Balancing Tested
• Delivery Time：7 Days
• Kw：66,90
• Quality Warranty：12 Months
• Engine：Dw10td , Rhy
• Transport Package：Mold Foam. Plastic Bag. Strong Canton and Pallet
• Specification：ISO9001
• Trademark：refone
• Origin：China
• HS Code：8414803090
• Production Capacity：20000 Piece,Pieces , Year

Basic Info.

Model NO. GT1546S Description Citroen, Peugeot Part Number 706977-0001, 706977-0003, 706977-5001s Balancing High Speed Balancing Tested Delivery Time 7 Days Kw 66/90 Quality Warranty 12 Months Engine Dw10td / Rhy Transport Package Mold Foam. Plastic Bag. Strong Canton and Pallet Specification ISO9001 Trademark refone Origin China HS Code 8414803090 Production Capacity 20000 Piece/Pieces / Year

Product Description

Garrett Gt1546s 706977-5001s 0375c8 Electric Turbo Part for Citroen/Peugeot

Products Details
 Part Number: 706977-5001SPrevious Version: 706977-0001, 706977-0003OE number: 0375C8. 0375E3, 0375E1, 0375E0, 0375H7, 9645247280Year: 99-01Description: Citroen, PeugeotCHRA: 433289-0124 Turbo Model: GT1546SEngine: DV10TD2S, DW10TD / RHYEngine Manufacturer: PSADisplacement: 2.0L, 2000 ccmKW:66/90Fuel: DieselAngle α (compressor housing): 68Angle β (turbine housing): 155Bearing Housing: 435793-0002 Turbine Wheel: 707669-0006 Comp. Wheel: 436624-0002 Back plate: 436399-0002Heat shield Number: 434302-0001 Repair Kit: 732252-0001Turbine Housing: 435788-0063Compressor Cover: 435791-0090ActuatorL: 433452-0037Turbine Housing A/R: 0.35Settings Wastegate (pressure): 1.050-1.120/1.240-1.290 barSettings Wastegate (lift rod): 1.00--3.00 mmGasket (turbine inlet): 210371Gasket (turbine outlet): 210372Gasket (oil outlet): 210243
 Applications:

1999- Citroen Berlingo 2.0 HDI Engine DW10TD

1999- Citroen C 5 I 2.0 HDI Engine DW10TD

1999- Citroen Picasso 2.0 HDI Engine: DW 10ATD 2S

1999-2001 Citroen Xantia 2.0 HDi Engine DW10TD

1999- Citroen Xsara 2.0 HDI Engine DW10TD

1999- Peugeot 206 2.0 HDi Engine DW10TD / RHY

1999- Peugeot 307 2.0 HDi Engine DW10TD / RHY

1999- Peugeot 406 2.0 HDI Engine DW10TD / RHY

1999- Peugeot Partner 2.0 HDi Engine DW10TD

Our Service

1. 12 monthes Quality Warranty.

2. Sample Order is Acceptable.
3. After sale Service: Take photos Send for testing Send new turbo to customer.
4. Design new types according to customer's requirements.

Company Imformation

Refone Auto Power Co.,Ltd is a group company which engaged in turbocharger and turbo parts manufacturing and trading.Refone Auto Power Co., Ltd. is a specialized company engaged in manufacturing turbocharger & turbo, replacement & performance parts for turbo, and engine parts for automobile & engineering machine since 2003. Our products have been exported to America, Latin America, Japan, Europe, Australia and Southeast Asia. Welcome to our website and enjoy your stay. Any customers' specifications and OEM orders are welcome. If you can't find what you're looking for, please give us a call or an email. Our experienced and professional staff will help to meet all your requirements thoroughly. All inquiries will be highly appreciated and you will get replies within 24 hours.


We Also Provide

Garrett/ KKK/ Holset/ IHI/ Toyota/ Mitsubishi/ Schwitzer/ Hitachi/ JAC

GT TA TB TO K03 K04 K14 K16 K24 K26 K27 K29 K31 K33 BV43 KP35 KP39

TDO TFO CT RHB RHC RHF RHG H1C H2C H1E WH1C WH1E H2D HX HY

HE HP 4LE 4LGZ S 3LM-319 J08C HT12 HT18 PC200 SJ KTR

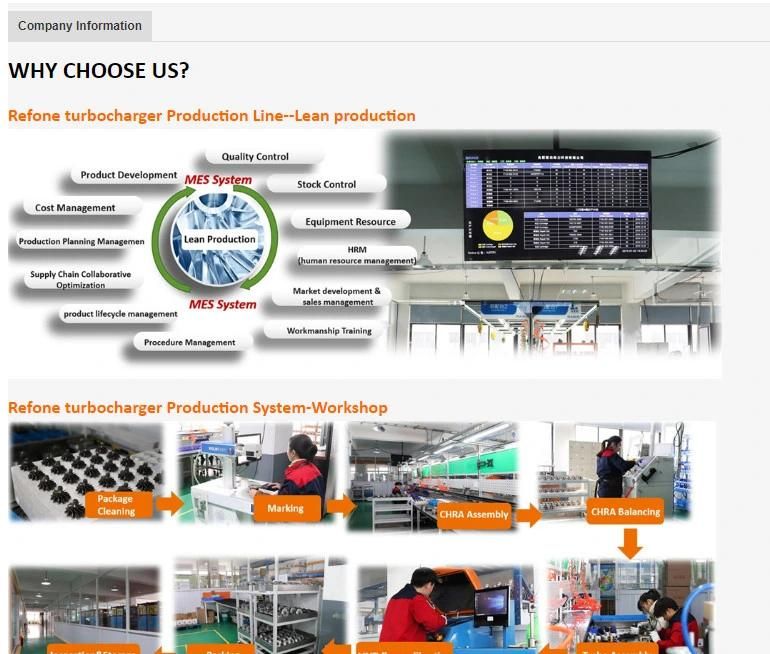

Why Choose Us

 *High speed VSR well balanced chra
* 1 year  unlimited mileage warranty
* REFONE package or customer's package available
* Technology support for any after-service
* Customized upgrading service acceptable

Packing & Shipping:
1)Refone Package
2)Neutral Package
3)Customized Package

Delivery time

Mode of Transport	Delivery time	Weight
By Sea	about 30-50 days	>1cbm
By Air	about 1 week	>100kg
DHL, TNT, FedEx	about 4-7 days	<100kg
