• Model NO.：3047991
• Body Material：Iron
• Component：Fuel Injection Device
• Certification：ISO9001, TS16949, CE, E-Mark, CCC, RoHS, COP
• Stroke：4 Stroke
• Cylinder：Multi-cylinder
• Fuel Saver Type：Use Water as Raw Material
• Carburettor Type：Downdraft
• OEM Number：3047991
• Engine Model：Nta855
• Transport Package：Carton Box
• Specification：Standard
• Trademark：3047991
• Origin：China
• HS Code：8413910000
• Production Capacity：5000PCS,1year

Item StyleFuel injector assemblyEngine ModelNTA855MOQ1 PCDelivery Date3-7 days after the paymentPayment TermsT/T,Western Union or Bank Transfer

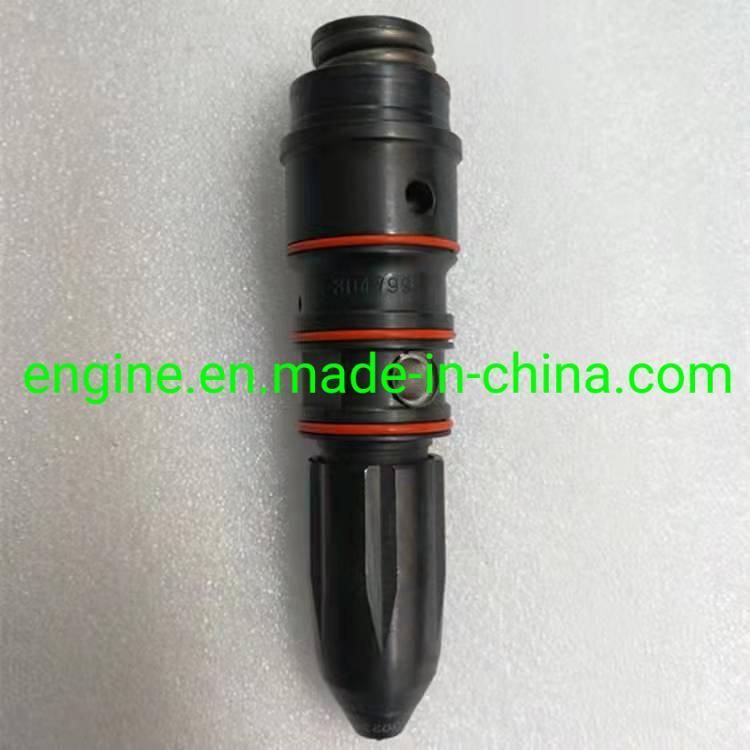

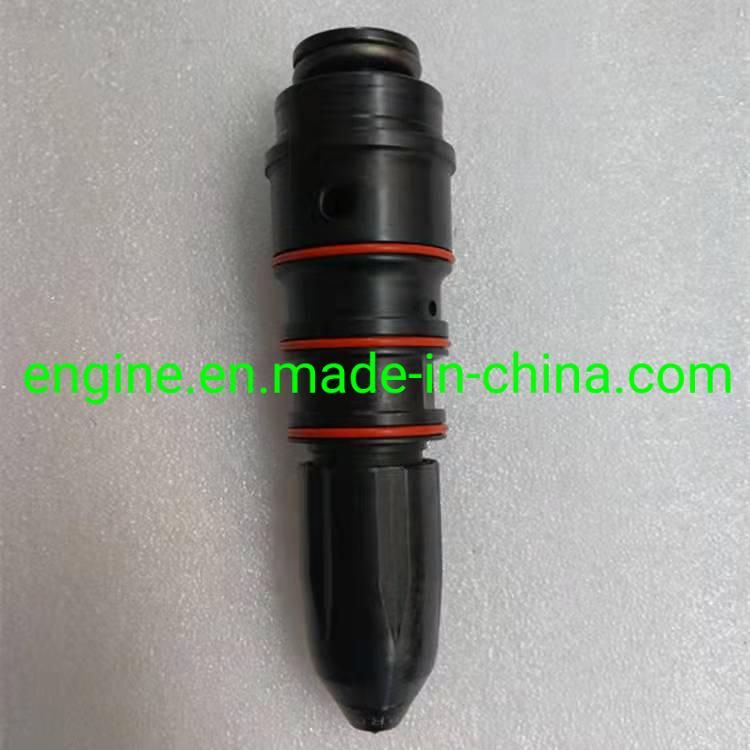

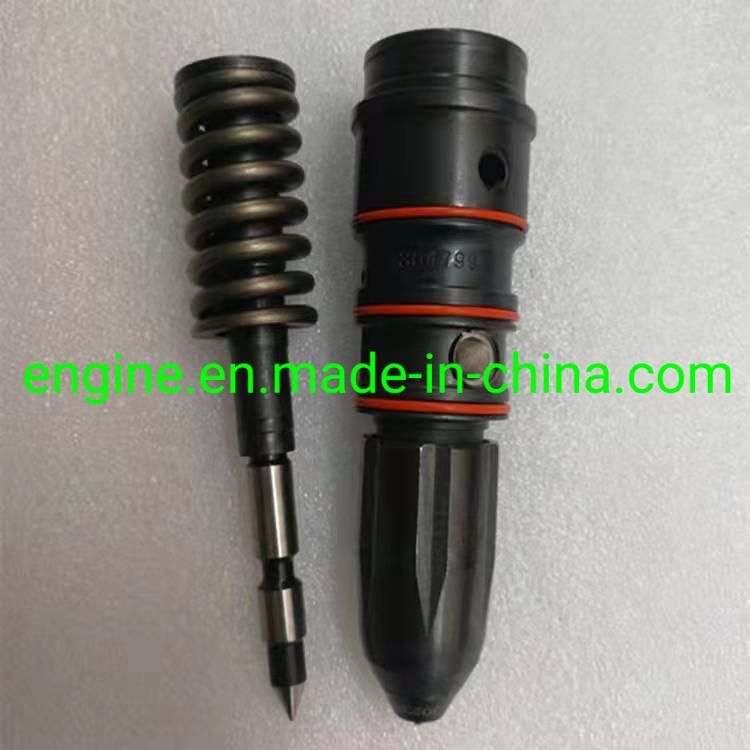

    3047991     Assembly, Injector
1        166009     Spring, Compression
2        167157     Ball, Check
3        173086     Gasket, Orifice Plug
4        174299    Clip
5        185138     Retainer, Injector Cup
6        193736   O Ring
7        203426     Pin, Roll
8        3008706     Screen, Filter
9        3023556    Cup, Injector
10        3045047   Plug, Orifice
11        3047964    Barrel and Plunger
12        185139    Adapter
13    180626     Washer, Injector Clamping
14    191916     Link, Injector Plunger
15    3049333     Screw, Twelve Point Cap
16    3060447    Clamp, Injector  6










  3071497   Y Assembly, Injector
1        167157     Ball, Check
2        173086     Gasket, Injector
3        174299     Retainer, Screen
4        185138     Retainer, Injector Cup
5        193736     Seal, O Ring
6        203426     Pin, Roll
7        3068860     Nut, Lock
8        3054999     Screen, Filter
9        3023478     Spring, Compression
10        3023934     Adapter, Injector
11        3062009     Link, Injector
12        3034167     Spring, Compression
13        3041493     Washer, Plain
14        3045047     Plug, Orifice
15        3052218     Retainer, Injector Spring
16        3052231     Retainer, Injector Link
17        3068859     Cap, Tappet Top Stop
18        3054474     Link, Injector Plunger
19        3055742     Screw, Injector Stop
        3052222     Barrel & Plunger
20             3052219    Plunger, Injector
21             3047962    Barrel, Injector
22        3075381     Tappet, Hyd Var Timing
23        3078200     Nut, Tappet Top Stop Lock
24        3018862     Cup, Injector







No.	Part Name	Part No.
1	Injection Pump	D3357444
2	Injection Pump	C4980547
3	Injection Pump ASSY	C3960558
4	Injection Pump ASSY	C3960739
5	Injection Pump ASSY	C3960756
6	Injection Pump ASSY	C3960797
7	Injection Pump ASSY	C3960901
8	Injection Pump ASSY	C3960952
9	Injection Pump ASSY	C3979322
10	Injection Pump ASSY	C4988565
24	Fuel Injector	D3928387
25	Fuel Injector	D3930525
26	Fuel Injector	D3976372
27	Fuel Injector	D4934742
28	Fuel Injector	D4937064
29	Fuel Injector	D4940640
30	Fuel Injector	D4942359
31	Fuel Injector	L00133
32	Fuel Injector	L00135
33	Fuel Injector Liner	C4975023
34	Fuel Injector with Gasket ASSY	A3283562
35	Fuel Injector with Gasket ASSY	A3355015
36	Fuel Injector with Gasket ASSY	A3356587
37	Fuel Injector with Gasket ASSY	A3919339
38	Fuel Injector with Gasket ASSY	A3919347
39	Fuel Injector with Gasket ASSY	A3919350
40	Fuel Injector with Gasket ASSY	A3960766
41	Fuel Injector with Gasket ASSY	C4928990
42	Fuel Injector with Gasket ASSY	C4940785
43	Fuel Injector with Gasket ASSY	C4940786
44	Fuel Injector with Gasket ASSY	C4940187
45	Fuel Injector Pinch-off Blade	C3940639
46	Fuel Injector Clip	C4974970
47	Fuel Injector Clip	C4974971
48	Fuel Injector Puller	C3823024
49	Fuel Injector Gland	C3909886
50	Fuel Injector Pressure Plate	C3910279
51	Fuel Injector ASSY	C4991280
52	Fuel Injector ASSY	C4991297
53	Fuel Injector ASSY	C4930225
54	Injection Nozzle	C3355015
