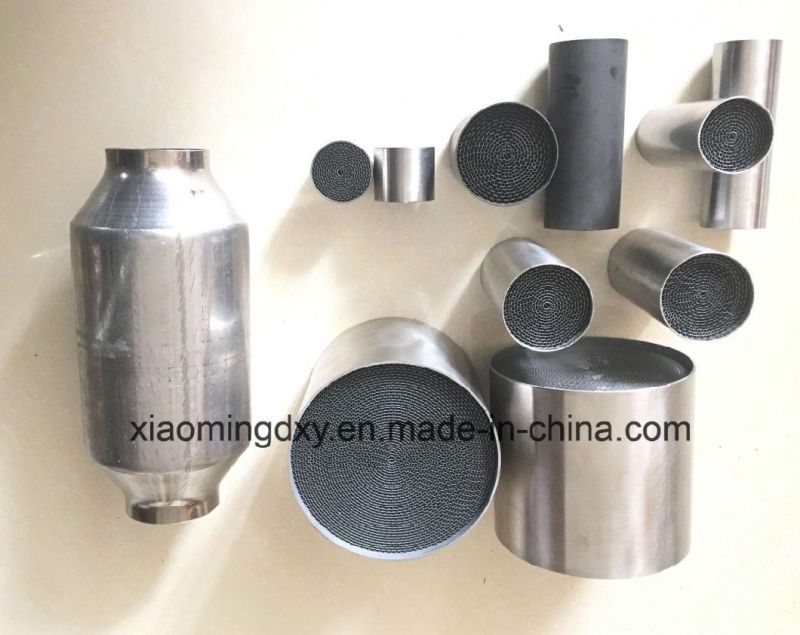

Metal Honeycomb Substrate for Catalytic Converter
Beihai Xiaoming International Import and Export Trading Co., Ltd.- Type：Catalytic Converter
- Body Material：Steel
- Discharge Standard：Euro V
- Certification：ISO9001, TS16949
- Noise Source：The Noise of Engine
- The Noise of Engine：Mechanical Noise
Base Info
- Model NO.：MHS
- Automobile Chassis Noise：The Brake Noise
- Component：Catalytic Converter
- Main Market：Southeast Asia
- Material：SS304, SS316
- Application：as Catalyst Used in Automobile,Motorcycle
- Cell：100-600cpsi
- Thickness(mm)：0.04-0.1
- Width(mm)：10-250
- Max Working Temperature：1100°c
- Max Service Temperature：1250°c
- Transport Package：Wooden Box and Pallet,Packed as Customers′ Need
- Specification：all size
- Trademark：DXY
- Origin：China
- HS Code：84213990
- Production Capacity：100, 000pieces,Month
Description
Substrate
Mantle 430/436/441/444 Honeycomb Fe-Cr-Al Brazing Material BNi5
| Shape | Shell size(mm) | Core size(mm) | Cell density (CPSI) |
| Rotundity | Φ 30 × 22 | Φ 28 × 20 | 100/200/300/400 |
| Rotundity | Φ 35 × 20 | Φ 33 × 20 | 100/200/300/400 |
| Rotundity | Φ 35 × 30 | Φ 33 × 30 | 100/200/300/400 |
| Rotundity | Φ 35 × 40 | Φ 33 × 40 | 100/200/300/400 |
| Rotundity | Φ 35 × 50 | Φ 33 × 50 | 100/200/300/400 |
| Rotundity | Φ 35 × 60 | Φ 33 × 60 | 100/200/300/400 |
| Rotundity | Φ 35 × 70/100/130 | Φ 33 × 60/90/120 | 100/200/300/400 |
| Rotundity | Φ 42 × 70/100/130 | Φ 40 × 60/90/120 | 100/200/300/400 |
| Rotundity | Φ 45 × 70/100/130 | Φ 43 × 60/90/120 | 100/200/300/400 |
| Rotundity | Φ 63,5 × 85/100/130 | Φ 60,5 × 74,5/90/120 | 200/300/400 |
| Rotundity | Φ 73 × 70/100/130 L | Φ 70 × 60/90/120 | 200/300/400 |
| Rotundity | Φ 93 × 70/100/130 | Φ 90 × 60/90/120 | 200/300/400 |
| Rotundity | Φ 100,3 × 100/130 | Φ 98,3 × 90/120 | 600 |
| Rotundity | Φ 144 × 150/152,4 | Φ 142 × 140/142,4 | 200/300/400 |
| Rotundity | Φ 190 × 200 | Φ 188 × 190 | 200/300/400 |
| Rotundity | Φ 420 × 100/130 | Φ 416 × 90/120 | 300/400 |
| Race track | 123 × 63 × 85 | 120 × 60 × 75 | 200/300 |
| Race track | 123 × 63 × 100 | 120 × 60 × 90 | 200/300 |
| Race track | 78,5 × 52 × 104 | 76,5 × 50 × 90 | 200/300 |
