• Radiator Core Type：Pipe Belt
• Water Temperature Sensor Type：Switch Type
• Trademark：ALITA PNEUMATIC
• Origin：China

Basic Info.

Radiator Core Type Pipe Belt Water Temperature Sensor Type Switch Type Trademark ALITA PNEUMATIC Origin China

Product Description

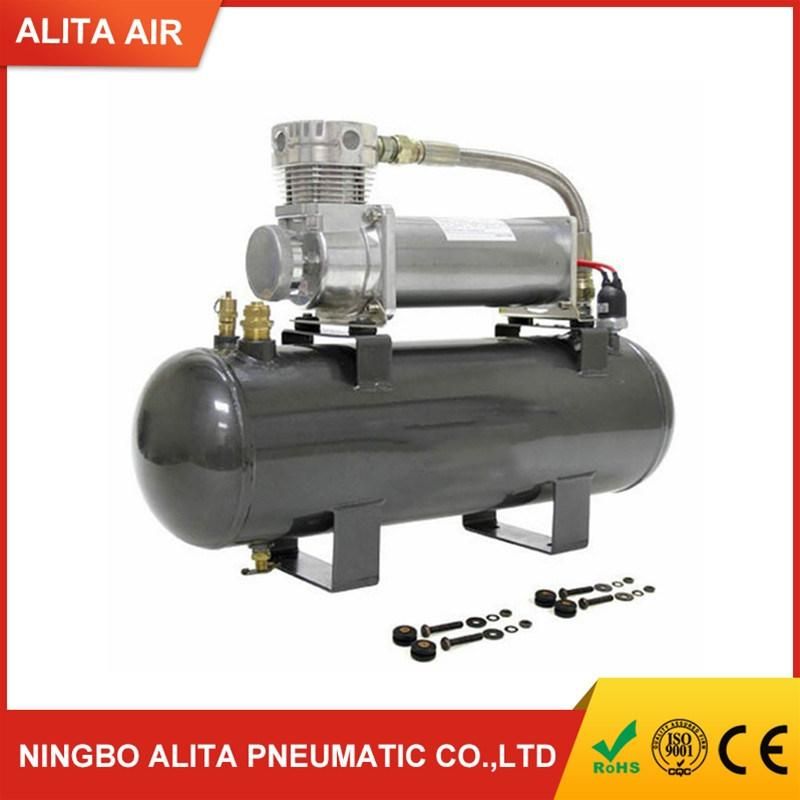

VIAIR 20008 High-Flow Air Source Kit
High-Flow 200 PSI Air Source Kits come with a powerful, low amp-draw 480C VIAIR compressor mounted on a 200 PSI-rated 2.0 gallon air tank with 5 ports. All 200 PSI Air Source kits come with a pre-wired 165/200 PSI pressure switch. Both kits not only come with the industry's leading 200 PSI compressors but also come with a drain cock, safety valve, 1/2-inch port compression fitting for 3/8-inch air line pre-installed!!!!
To use, simply connect the pressure switch to fused power, make a solid ground and connect an air line to the compression fitting. The use of a 40-amp relay and an appropriately-rated fuse is strongly recommended to preserve the life of the pressure switch.
Why is Viair the Best??
- Industry Leader for 12v Air Systems
-No Maintenance Oil-Less Design Compressors
-Thermal Overload Protection
-High Performance PTFE Rings
-Gearless Direct Drive PMG Motors
-ISO 9001 Certified
200psi Air Compressor (100% Duty @ 100psi)
Use For Air Horns
Use For Load Level Air Springs
Use For Suspension Air Bags
Use For Air Lockers
Use For Tire Inflation
Use For Air Tools
Features:
-  Gearless, direct-drive electric motors
- Oil-less design requires no maintenance (beside filter inspection/replacement)
- High performance, heavy duty PTFE piston ring
- Anodized piston cylinder for increased wear protection
- Precision, high speed, durable bearings for increased piston & motor life
- Sealed motor housing for moisture resistance
- Environmental seals where electrical connections enter motor housing
- Efficient, oversized heat sink head assembly for increased heat dissipation, duty cycle & performance
- High performance check valve eliminates restart pressure on head and piston
- Replacement air filter elements (filtration to 10 microns)
- Heavy duty mounting feet
- Reinforced vibration isolators for safe & quiet operation
- Mounting hardware (bolts, washers, locking washers, nuts)
- Thermal overload protection that protect compressor in event of overheating/over duty cycle operation
- Maximum operating temperature is 158 F
- Minimum operating temperature is -40 F.
- Wires terminated with ring ground terminal & spade positive lead terminal
- VIAIR 12 Month Manufacturer Warranty
Specifications:
VIAIR PN: 20008
VIAIR 480c Compressor
12-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
Max. Working Pressure: 200 PSI
Max. Amp Draw: 23 Amps
Dimensions: 19.7"L x 5.9"W x 13.9"H
Kit Includes:
Pressure Switch(165psi ON - 200psi OFF)
Compression Fitting for 3/8'' ID Tubing
Leader Hose with Check Valve
250psi Safety Valve
Drain Petcock
Mounting Hardware
Tank Fill Rate:
0 to 200 PSI -----3 Min. 56 Sec.
165 to 200 PSI -----1 Min. 02 Sec.
