Gt1749s 715843-0001 715843-1 715843-5001s Turbocharger 2820042600 28200-42600 Turbo for Commercial Starex H100

Refone Auto Power Co., Ltd.
  • Type：Electric Turbocharger
  • Body Material：Iron
  • Certification：ISO9001, CE
  • Electric Turbocharger Type：Axialflow
  • ETS Component：Turbine
  • ETS Type：Runoff

Base Info

  • Model NO.：GT1749S
  • Application：Benz
  • Brand：Refone
  • Turbo Model：Gt1749s
  • Part Number：2820042600, 28200-42600
  • OE Number：6020960599, 6020901280, A6020960599, A6020901280
  • Description：Hyundai Commercial
  • Repair Kit：732252-0001
  • Chra：433352-0031 (433352-5031s)
  • Engine：4D56TCI, D4bh (4D56 TCI) Electronic, 4D56TCI Euro-
  • Transport Package：Mold Foam. Plastic Bag. Strong Canton. Pallet
  • Specification：ISO9001, CE
  • Trademark：Refone
  • Origin：China
  • HS Code：8414803000
  • Production Capacity：20000pieces,Year

Description

Basic Info.

Model NO. GT1749S Application Benz Brand Refone Turbo Model Gt1749s Part Number 2820042600, 28200-42600 OE Number 6020960599, 6020901280, A6020960599, A6020901280 Description Hyundai Commercial Repair Kit 732252-0001 Chra 433352-0031 (433352-5031s) Engine 4D56TCI, D4bh (4D56 TCI) Electronic, 4D56TCI Euro- Transport Package Mold Foam. Plastic Bag. Strong Canton. Pallet Specification ISO9001, CE Trademark Refone Origin China HS Code 8414803000 Production Capacity 20000pieces/Year

Product Description

GT1749S 715843-0001 715843-1 715843-5001S Turbocharger 2820042600 28200-42600 Turbo for  Commercial Starex  H100

Product Description

Previous Version715843-0001, 715843-1,715843-5001S
Year2001-
DescriptionCommercial
CHRA433352-0031 (433352-5031S)
Turbo ModelGT1749S
Engine4D56TCI, D4BH (4D56 TCI) Electronic, 4D56TCI Euro-3
Displacement2.5L, 2476 ccm, 4 Cylinders
KW100/136 HP
RPM Max3800
FuelDiesel
Bearing Housing436132-0003/434578-0012
Turbine Wheel434714-0021
Comp. Wheel436132-0003
Back plate433254-0003/433294-0002
Heat shield NumberN/A
Repair Kit732252-0001
Turbine Housing452540-0003 K
Compressor Cover435791-0104
Turbine Housing AR0.4
Actuator432340-0112
Settings Waste gate (pressure)0920-0950 bar
Settings Waste gate (lifting rod)1.00 mm
Gasket (turbine inlet)210501
Gasket (turbine outlet)210525
Gasket oil inlet210023
Gasket (oil outlet)210243

Applications

2001- Hyundai Commercial Starex(H1) with D4BH (4D56 TCI) Electronic Engine
2001- Hyundai Commercial H100, Satellite with 4D56TCI Engine
2001- Hyundai One Ton with 4D56TCI Euro-3 Engine

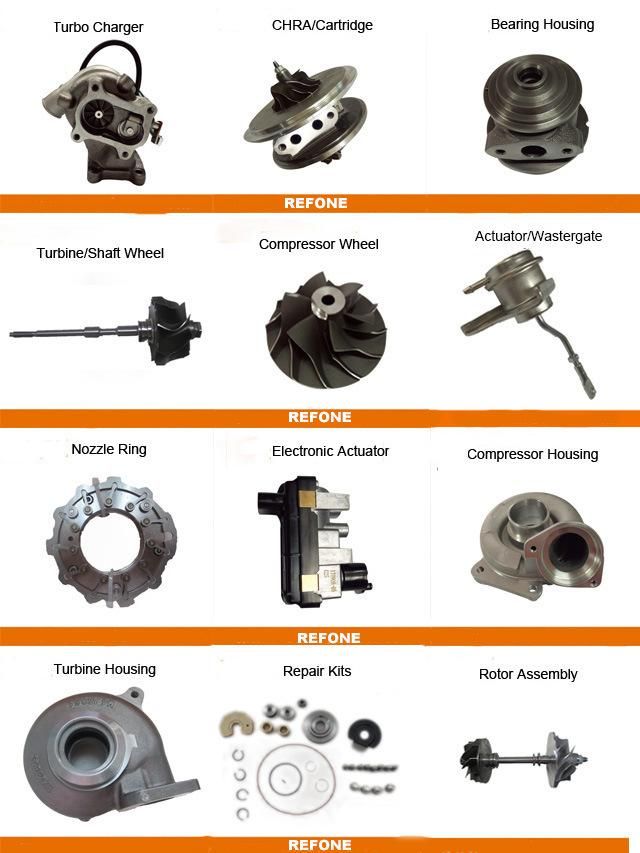

Related Turbo Parts Gt1749s 715843-0001 715843-1 715843-5001s Turbocharger 2820042600 28200-42600 Turbo for Commercial Starex H100

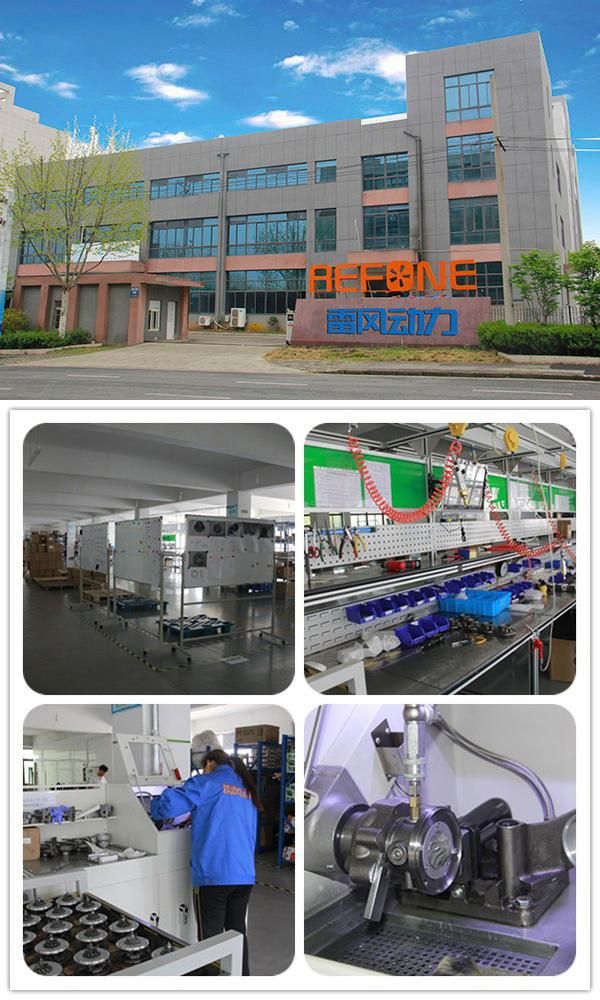

Factory Information
 Gt1749s 715843-0001 715843-1 715843-5001s Turbocharger 2820042600 28200-42600 Turbo for Commercial Starex H100Packing Information

·Inner Packing: Waterproof plastic packing
·Outer Packing: Export carton with cushioning and shockproof packaging
·Customized packing is available
  Gt1749s 715843-0001 715843-1 715843-5001s Turbocharger 2820042600 28200-42600 Turbo for Commercial Starex H100Our Service
  1. All items are brand new, never been used, still in original packaging.
  2. Do not hesitate to contact us any time before and after your purchase, we strive our best to provide the most professional customer service.
  3. Sample order or trial order is acceptable.
  4. We accept OEM/ODM/Customized service and buyer label offered.
  5. Professional installation is highly recommended.
  6. 12 months quality warranty.
Delivery Time

Mode of TransportDelivery timeWeight
By Seaabout 30-50 days>1cbm
By Airabout 1 week>100kg
DHL, TNT, FedExabout 4-7 days<100kg

If you need more information, please contact us. Thank you!
