Btv8501 Turbo 466807-5001 466807-5001s 466807-0001 118-0398 1989914 Turbocharger for Cat Generator Set 3508b 3516b Diesel Engine
Wuxi Booshiwheel Power Technology Co., Ltd.- Warranty:0
- Engine Type:Diesel
- Type:ETS Exhaust-Gas-Turbo-Super-Charger
- Body Material:Aluminium
- Certification:TS16949
- ETS Component:Compressor
Base Info
- Model NO.:BTV8501, BTVA8501
- ETS Type:Runoff
- Application:Cat
- Brand:Booshiwheel
- Part Number:466807-5001s
- Previous Version:466807-0001, 466807-9001, 466807-0003
- Previous No.:466807-5004s, 466807-5005s, 466807-1
- OE:1180398, 118-0398, 1989914, 10r0435
- OEM:207-1351, 2071351, 10r-0435
- Displacement:34.5L, 34500 CCM, 8V Cylinders
- Transport Package:Carton
- Specification:Standard
- Trademark:Booshiwheel
- Origin:China
- HS Code:8414803090
- Production Capacity:50000
Description
Basic Info.
Model NO. BTV8501, BTVA8501 ETS Type Runoff Application Cat Brand Booshiwheel Part Number 466807-5001s Previous Version 466807-0001, 466807-9001, 466807-0003 Previous No. 466807-5004s, 466807-5005s, 466807-1 OE 1180398, 118-0398, 1989914, 10r0435 OEM 207-1351, 2071351, 10r-0435 Displacement 34.5L, 34500 CCM, 8V Cylinders Transport Package Carton Specification Standard Trademark Booshiwheel Origin China HS Code 8414803090 Production Capacity 50000Product Description
BTV8501 Turbo 466807-5001 466807-5001S 466807-0001 118-0398 1989914 turbocharger for Cat Generator Set 3508B 3516B Diesel Engine
Product description
Part Number | 466807-5001S |
Previous Version | 466807-0001, 466807-9001, 466807-0003, 466807-5004S, 466807-5005S, 466807-1 |
OE Number | 1180398, 118-0398, 1989914, 10R0435, 207-1351, 2071351, 10R-0435, 2071351 |
Description | Gen Set, Industrial Engines and Power Units, Generator Set Oil Field Land Rig |
CHRA | 449073-0019 (449073-5019S, 712371-0028, 1488171, 10R0434, 2032155) $1,910.61 |
Turbo Model | BTV8501, BTVA8501 |
Engine Model | 3508 DITAJWAC GS, 3516B DITASCAC GS |
Engine Manufacturer | Cat |
Displacement | 34.5L, 34500 ccm, 8V Cylinders |
Fuel | Diesel |
Power Module | PM3508, PM3516 |
Gen Set Engine | 3516B, 3508B |
Generator | 3508B, 3516B |
S/N | 1FZ1-UP, 1HZ1-155, 1HZ1-255, 1FZ1-585, 2JW1-235, 1NW1-133, 4GM303-640, 6HN303-1253, 7RN198-1576, 6PN446-698, 7RN00001-UP, 6HN00001-UP, 6PN00001-UP, 4GM00001-UP, 1NW00001-UP, 5KW00001-UP, 8NW00001-UP, 2JW00001-UP, BPD00001-UP, BLM00001-UP |
Bearing Housing | 449072-0001 |
Turbine Wheel | 449236-0001 |
Comp. Wheel | 449207-0002 |
Back plate | 448797-0011 (carbon seal) $284.86 NEW IN STOCK |
Heat Shield | 407657-0009 |
Repair Kit | 468267-0007 |
Turbine Housing | 441122-0118 (1052898) |
Compressor Cover | 443892-0030 (709557-0009, 1260911, 2465826, 1933279) $729.96 |
Turbine Housing AR | 1.23 |
Replaced By | 466807-0006 |
Gasket (turbine inlet) | 409038-0001 (1215736, 7M7273) $13.20 |
Gasket oil inlet | 129119 (1900000035)(201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900) $8.40 |
Gasket (oil outlet) | 129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763) (1900000025) $4.38 $8.22 |
Applications
2001- Cat Generator Set Industrial Engines and Power Units with 3508B, 3516B Engine

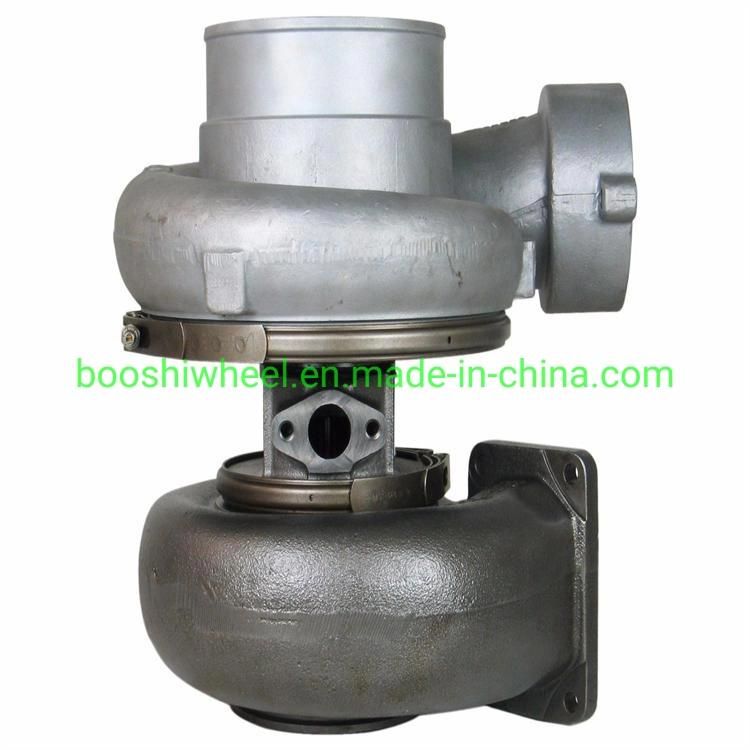

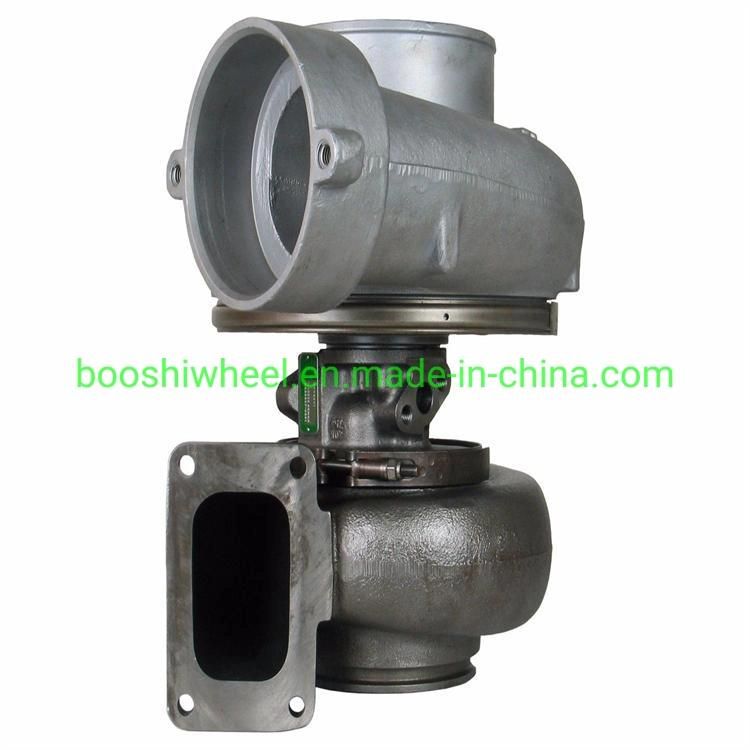

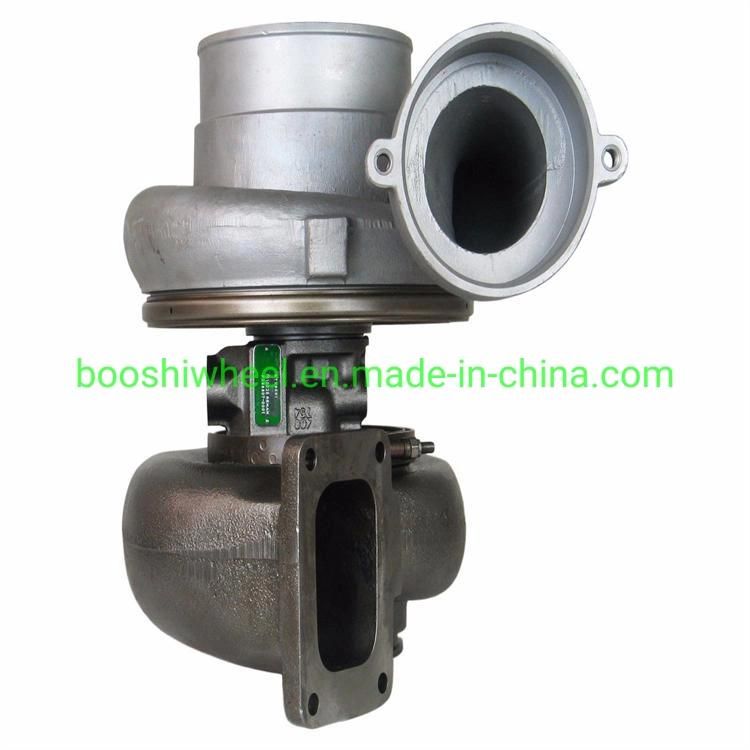

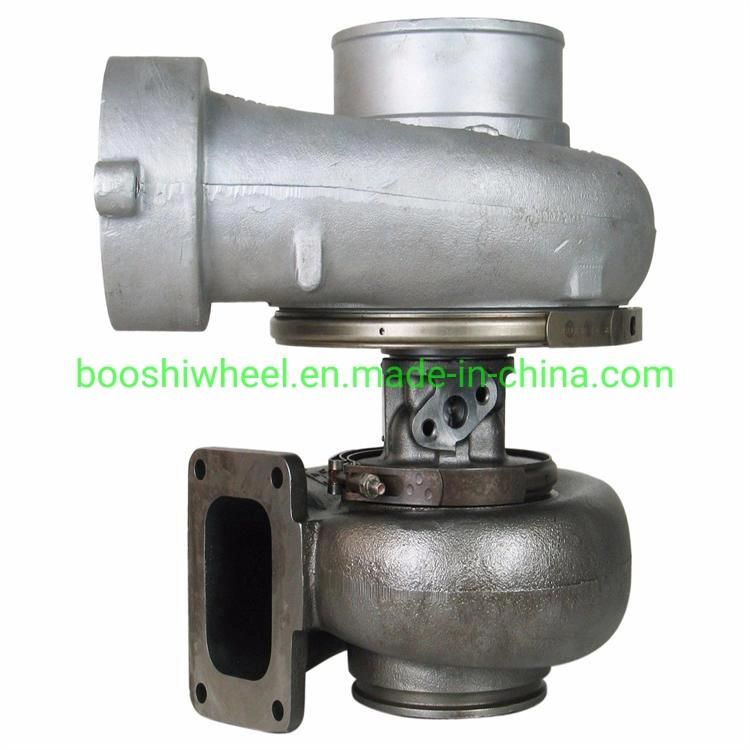

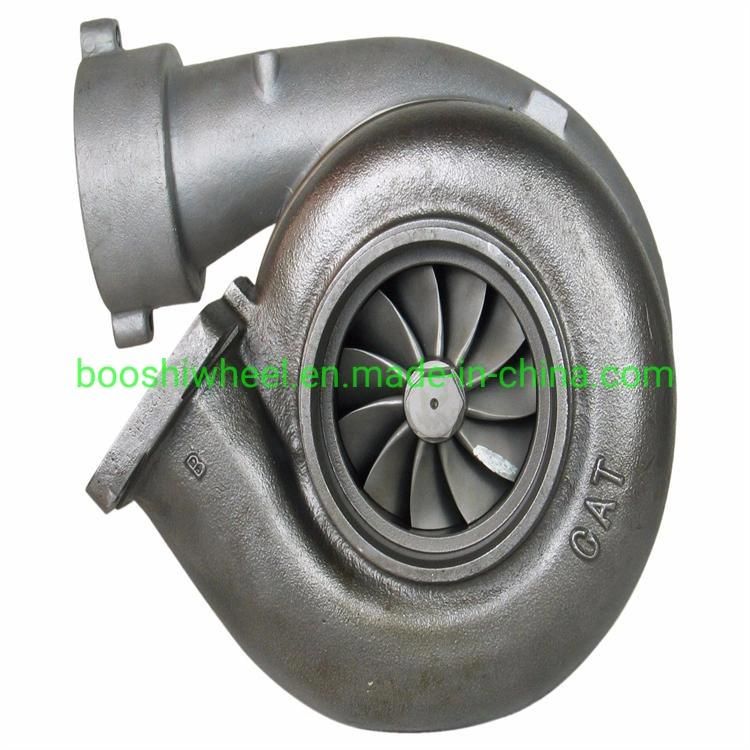

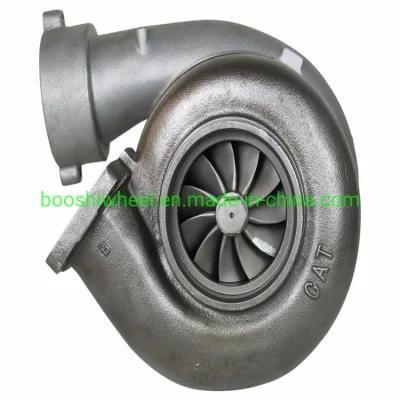

Product Show:





Package

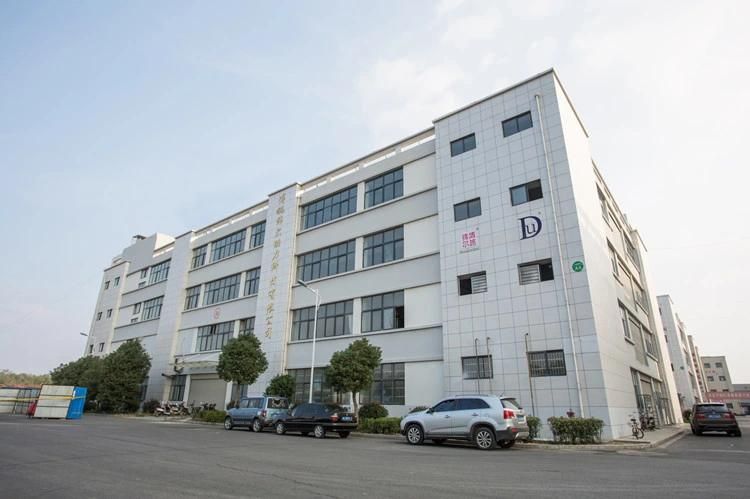

Factory
1.Wuxi Booshiwheel Power Technology Co,Ltd. ,specialized in manufacturing turbochargers . Our factory was established in 2003 in Wuxi City .
2.The company has a wide range of products ,including Turbocharger for all types of vehicles, Turbine housing, Compressor housing ,Nozzle ring ,Cartridge, Actuator ect.

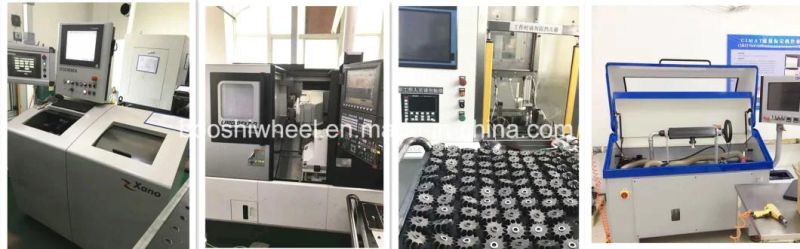

3.The company has imported Japanese advanced equipments,such as assembly line,processing production line and high speed balance,as well as the latest testing facilities.

CVE Electron Beam Welding from UK,
Studer CNC grinding machine from Switzerland,
Okuma CNC machine from Japan,
Schenck balancing machine from Germany.

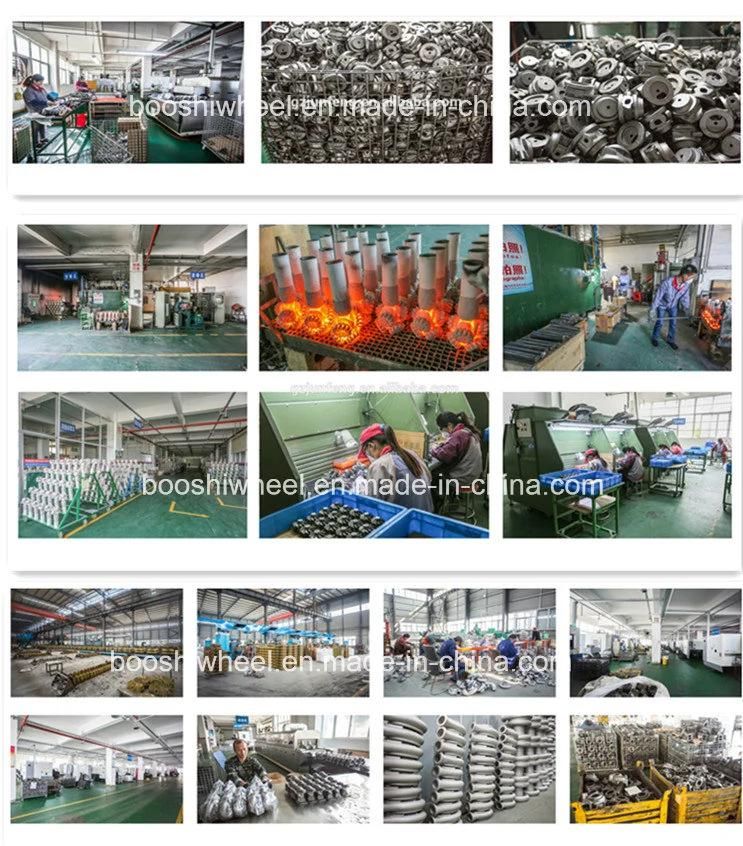

workshop


Company Profile
1.Wuxi Booshiwheel Power Technology Co,Ltd.,established in 2002,is engaged in designing and producing turbochargers and turbo parts that are used in vehicle and engineering machinery.We can also provide maintenance and technological services.
2.The company has imported Japanese advanced equipments,such as assembly line,processing production line and high speed balance,as well as the latest testing facilities.
3.The company's business concept are "make contribution to the development of society by technology" and "talent is the biggest and unique wealth",focus on manufacturing global the most cost-effective turbochargers.
Last ,we are looking forward to cooperating with you .
FAQ
1:Are you factory or only company?
2:Why we can choose you?
1):Reliable-we are the real company, we dedicate in win-win.
2):Professional-we offter the turbo products exactly you want.
3):Factory-we have factory,so have compective price,fast delivery time,high quality goods.
3:How about the shipping cost?
If your goods is not large,we can send goods to you via express,such as FEDEX,DHL,EMS,TNT,etc.if your goods is large ,we will send to u via sea or air,we can quote the price base on EXW,FOB,CIF&CNF as you like, you can choose whether to use our forwarder or yours.
4:How about the price ? Can you make it cheaper?
the price depends on the item your demand quantity,Final quotation according to receiving full description of the item you want.
5:How about the sample time ?What is the payment ?
Sample time: 3-10days after e-proof confirmed and your payment received. T/T, 30% deposit ,and the balance before the shipment. Welcome to contact us!
