• Model NO.：Comflex
• Automobile Chassis Noise：Tire Noise
• Component：Exhaust Pipe
• Structure：Bellows+Outer Braid+Inner Braid,Interlock+Caps+Nip
• Productivity：100PCS,Hour
• Hose Type：Interlock,Double Lock
• Features：Extension-Type
• Length：100~400mm
• Thickness：1~12mm
• Bellow：Single Layer or Multi-Layer
• Transport Package：Standard Seaworthy Packing
• Specification：ID25~150mm
• Trademark：Comflex
• Origin：China Mainland
• HS Code：870892000

Basic Info.

Model NO. Comflex Automobile Chassis Noise Tire Noise Component Exhaust Pipe Structure Bellows+Outer Braid+Inner Braid/Interlock+Caps+Nip Productivity 100PCS/Hour Hose Type Interlock/Double Lock Features Extension-Type Length 100~400mm Thickness 1~12mm Bellow Single Layer or Multi-Layer Transport Package Standard Seaworthy Packing Specification ID25~150mm Trademark Comflex Origin China Mainland HS Code 870892000

Product Description

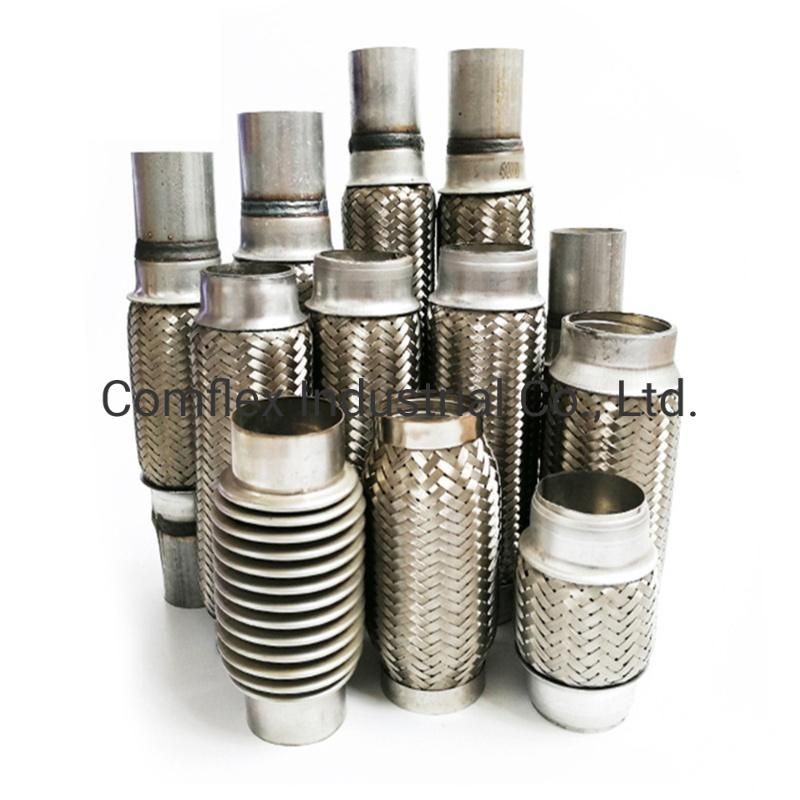

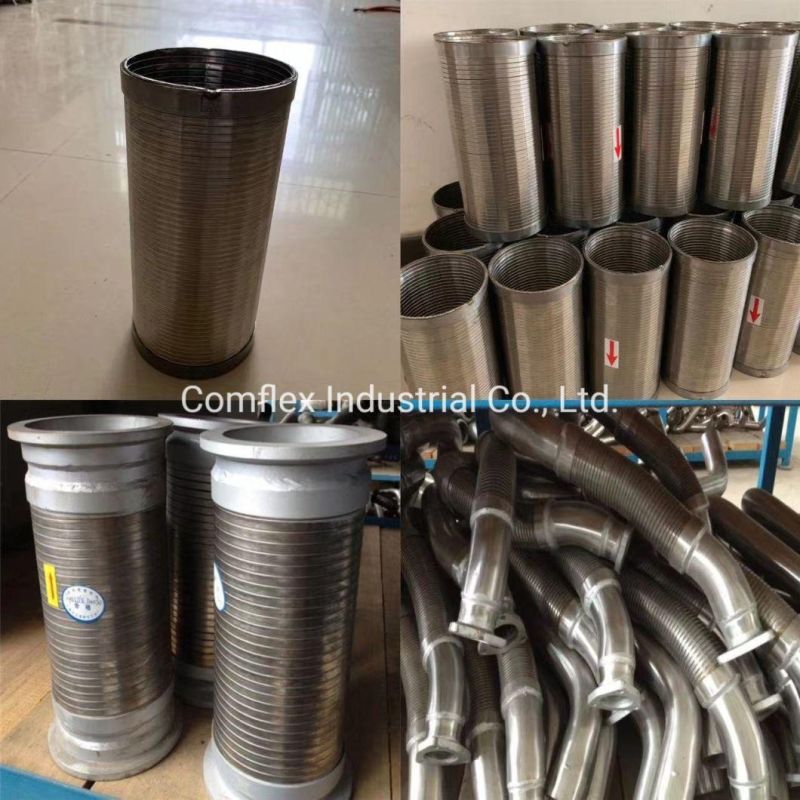

      High Quality Stainless Steel  Exhaust Pipe/Muffler for Truck

------Product Description

Flexible Exhaust Pipe Connector:

It is installed in the exhaust pipe between the engine exhaust branch pipe and the muffler, which makes the connection of the entire exhaust system flexible and plays a role in reducing noise. Easy to install and extend the life of exhaust noise reduction system.

Mainly used for light trucks, small passenger cars and buses. The structure is a double-layer corrugated pipe covered with a steel wire mesh sleeve, and the two ends are a straight edge segment outer snap ring structure. In order to improve the noise reduction effect, an expansion joint or mesh sleeve can be installed in the bellows.
------Product Details

-1. Suitable for a wide range of the tail pipe link.
-2. We can make parts with a high degree of flexibility.
-3. In particular, we increase the height of the bellows to enhance the effectiveness of vibration absorption.
-4. This product is used in exhaust system and high-and low-temperature.
-5. It can decrease engine noise and vibration.

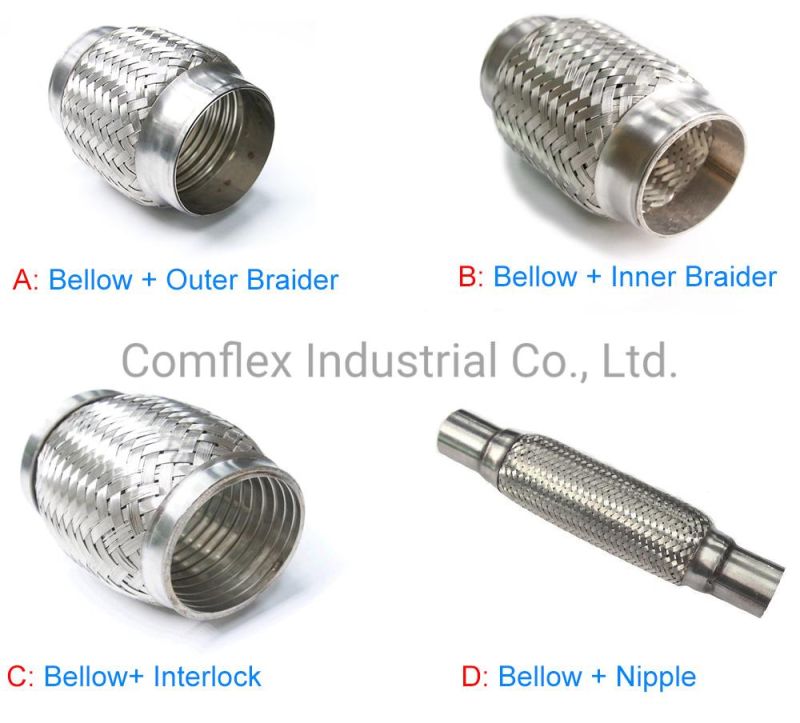

Structure of exhaust pipes

Our automobile exhaust flexible pipes are produced under high pressure with water as medium, making bellows with less aggregation of stress in structure.
We configurate inside the bellow with inner braid, making air flow through the bellow more smoothly to reduce the exhaust noise and improve the noise elimination function of exhaust system.
Our configuration inside the bellows with interlock hose, it not only can reduce the flow resistance, the exhaust noise and vibration, but also can be resistant to higher temperature, increase the strength of flexible pipe, making the product life longer.
In order to solve the difficulties while welding our pipes to exhaust system. We welded on two ends of the flexible tube with extension steel pipes, making its better welding ability, which is suitable for modified models. The length of the nipple can be customized.

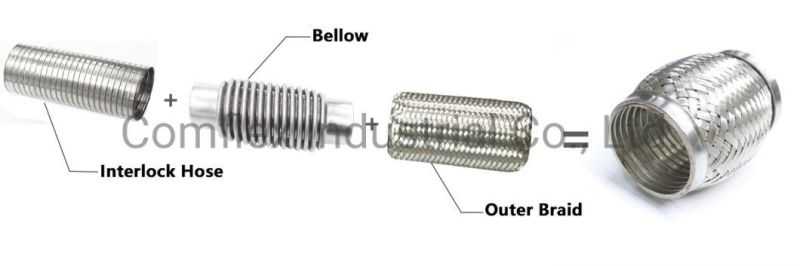

Type 1.
Interlock Pipe + Bellow + Outer Braid + Cap

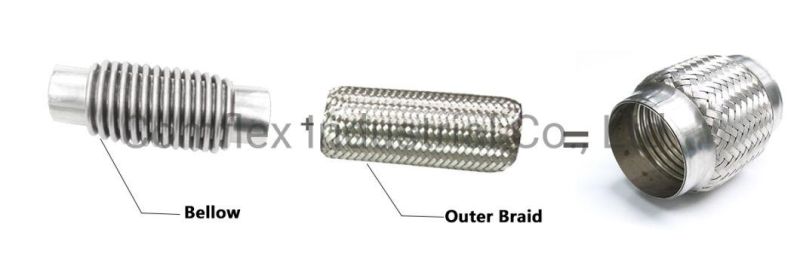

Type 2.
Bellow + Outer Braid + Cap

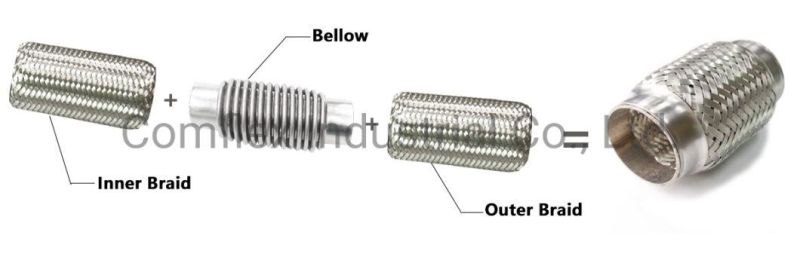

Type 3.
Inner Braid + Bellow + Outer Braid + Cap



------Package
We adopt standard seaworthy package for all export orders.

 ------WHO WE ARE
We make all kinds of flex-related products, such as flexible metal hoses, exhaust pipes, expansion joints, braids, hose fittings, and related machines, such as elastomer hose forming machine, hydraulic forming machine, wire braiding machine, rewinding machine, bellow forming machine, etc. We are lead manufacturer of flex-related products in China.
We supply metal hose and braid with the widest selection of products ranging from the braided hose for value-oriented customers to super flexible hoses to ultra-high pressure and high-temperature hoses that satisfy the industry's most demanding applications. Working closely with customers and suppliers helps us build quality products that meet or exceed compatibility and functional requirements, safety, and environmental standards and deliver dependable, repeatable performance and value.


------FAQ
Q: Why so many suppliers choose us?
A: Because we are one of the most professional manufacturers of flexible exhaust pipes with more than 25 years of experience.

Q: What is the delivery time of the order?
A: The delivery time would be depended to your quantity, usually from 7~20 days

Q: How about the payment terms?
A: Normally 30% deposit in advance, the balance should paid before shipment.

Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer free samples but courier costs are covered by the customer.

Q: Can the products be manufactuered by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as required.

We need to know the following information to give you our best quotation for the hoses:
A: Size range.
B: Structure of the exhaust pipe.
C: Material of each part of the exhaust pipe.
D: How many pieces do you want? MOQ is 50 pcs per type.
