• Model NO.：Non-standard parts
• Cold Style：Water-cooled
• Certification：TS16949
• Structure：Screw Type
• Cooling Fluid Type：Glycerin
• Radiator Type：Cross-flow
• Radiator Core Type：Pipe Belt
• Water Temperature Sensor Type：Digital Type
• Cooling Fluid Brand：Great Wall
• Raw Material：Zinc Alloy Iron SPCC, SGCC, Aluminum
• Raw Material1：Stainless Steel Carbon Steel Alloy Steel Silicon S
• Surface：Electroplating, Spraying Polishing Galvanized
• Surface 1：Polishing Galvanized Painting, Oxidation
• Process：Hot Stamping Deep Drawing Forming Process
• Process 1：Bending Welding Bend Weld
• Transport Package：Wood Box
• Specification：79*56*32
• Trademark：MinZe
• Origin：Quanzhou
• Production Capacity：10000000PCS,Year

Basic Info.

Model NO. Non-standard parts Cold Style Water-cooled Certification TS16949 Structure Screw Type Cooling Fluid Type Glycerin Radiator Type Cross-flow Radiator Core Type Pipe Belt Water Temperature Sensor Type Digital Type Cooling Fluid Brand Great Wall Raw Material Zinc Alloy Iron SPCC, SGCC, Aluminum Raw Material1 Stainless Steel Carbon Steel Alloy Steel Silicon S Surface Electroplating, Spraying Polishing Galvanized Surface 1 Polishing Galvanized Painting, Oxidation Process Hot Stamping Deep Drawing Forming Process Process 1 Bending Welding Bend Weld Transport Package Wood Box Specification 79*56*32 Trademark MinZe Origin Quanzhou Production Capacity 10000000PCS/Year

Product Description

Production description
We were supply the pipe for a lot of application such as auto engine cooling system and the others ,We also support the after market service.MOQ is also ok for us
Quality control
1.Each part go go though air decay leak test  1Bar@0.5CC/Min
2.Copper braze paste CU 103-BS EN ISO 17672
3.Part ship to plant or service part package free of any corrosion aligned with the Ford customer service
4.Part clean conform to ES7T4E-6B616-AA,cleanliness extraction efficiency requirement is 60% Min.
5.Tube steel EN10305-3 E220 CR2 S3
6.Bracket steel 3.0THK SAE J403 UNS G10080 OR G10100 0.2% C MIN


Customer first:

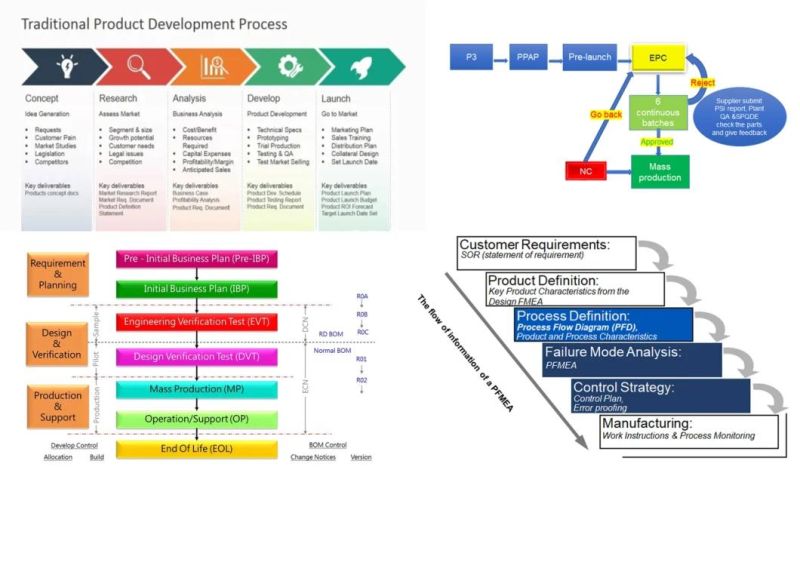

We control the quality by APQP,PPAP
CONCEPT:Why does it always seem that we have plenty of time to fix our problems once they occur, but never enough time to prevent the problems from happening by doing it right the first time? That was why we PFEMA and HISTORY LEARNING first for all the project.



Here was the list for the tooling of the welding bending stamping punching tube of specification as below ,for more information please contact us ,we will answer all we know to meeting customer requirement.

Mold Material	DC01,DC04,DC06
Tooling life Time	100K times
Tooling Material	1) AL1060, AL6061, AL6061, AL5052 2) Steel, mild steel, SPCC 3) SS201, SS303, SS304, SS316, SS316L 4) SPTE, galvanized sheet 5) Brass, copper
Surface Treatment	Anodized, powder coating, lacquer coating, black oxide
Salt and spy test	From 72-480 h
Size	1) According to customers' drawings 2) According to customers' samples
Drawing Format	step, dwg, igs, pdf
Certificates	ISO 9001:2015 & IATF 16949
Payment Term	T/T, L/C, Trade Assurance

Product Diagram car accessories Engine-Cooling System Water Pipe

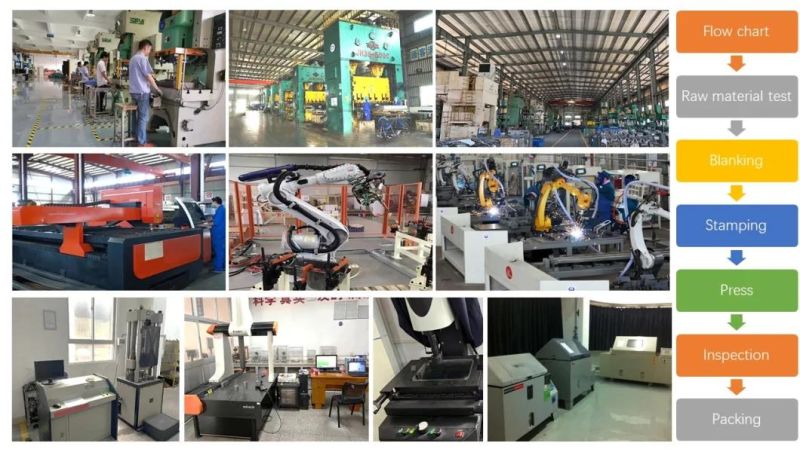

Production process

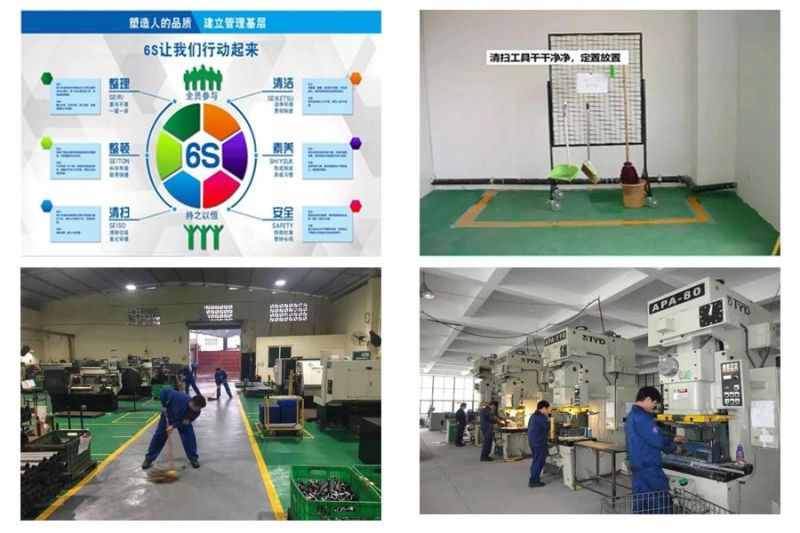

6S In workshop

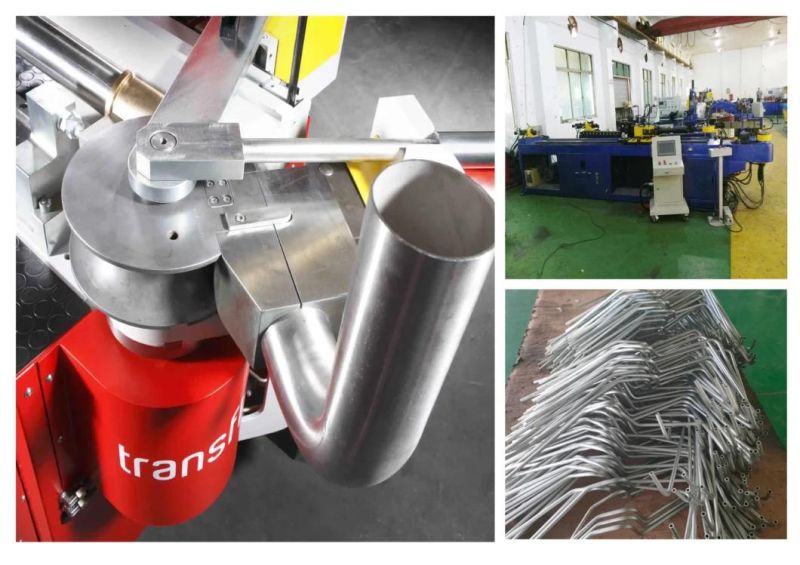

Bending workshop

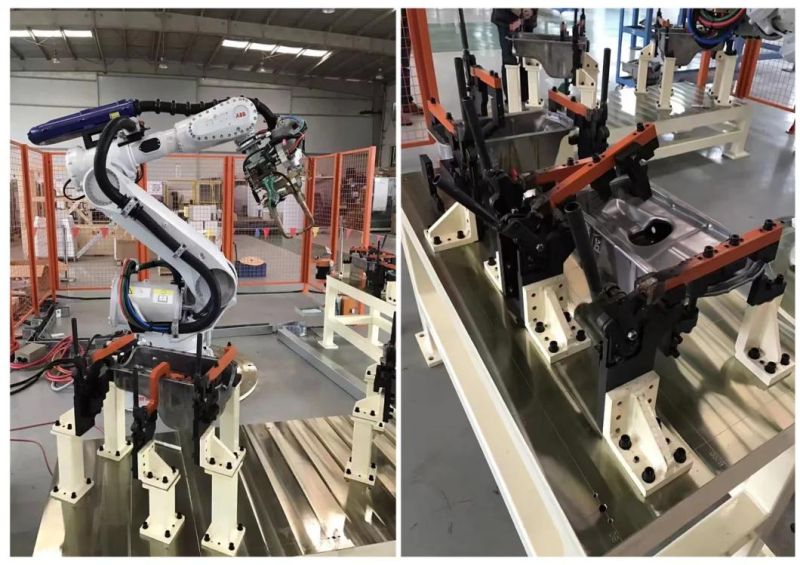

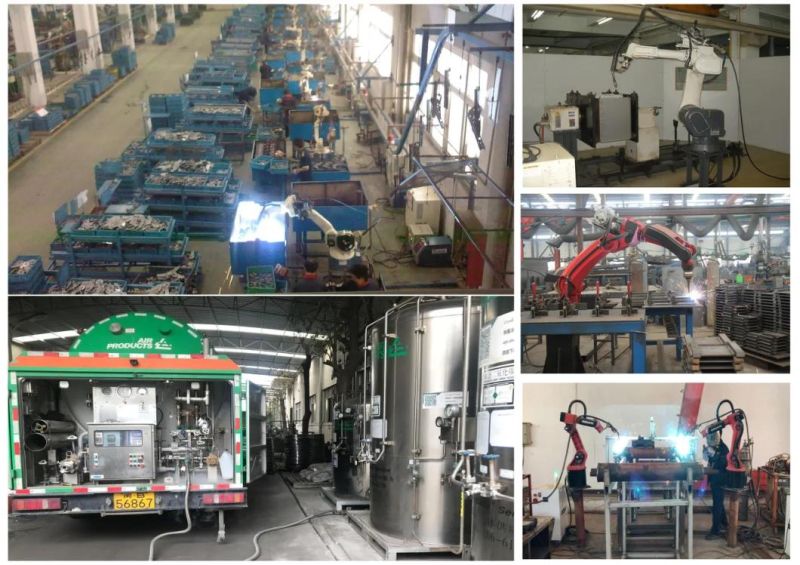

Welding workshop
Spot welding workshop

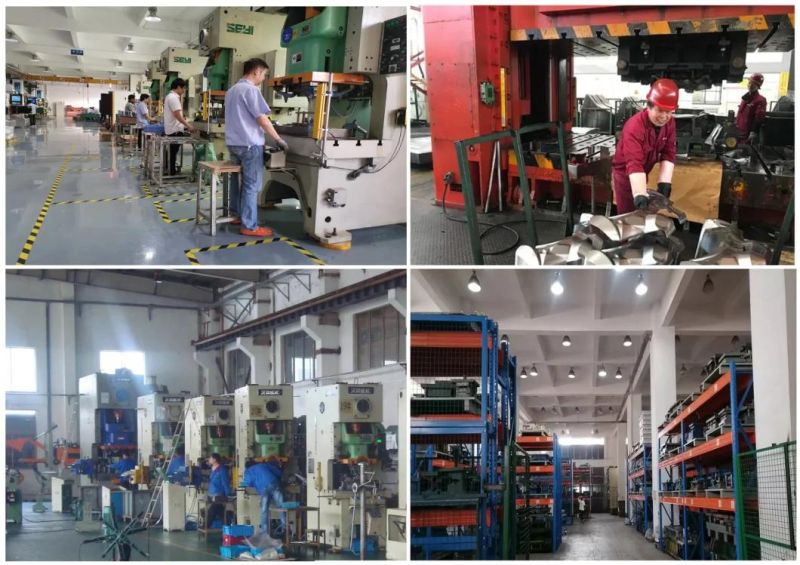

Stamping workshop

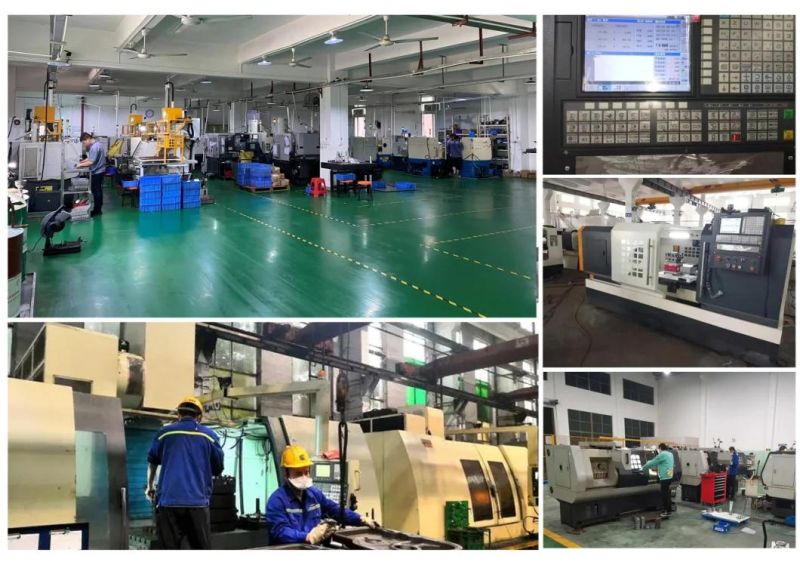

Turning workshop

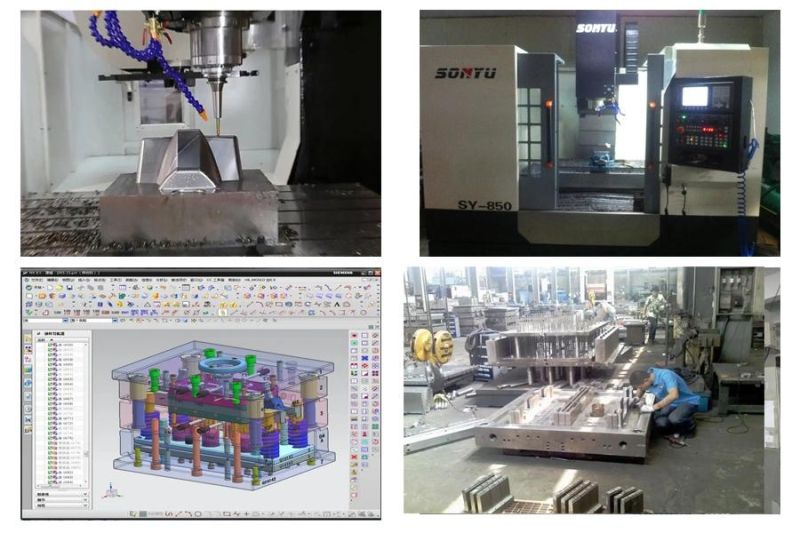

Tooling workshop

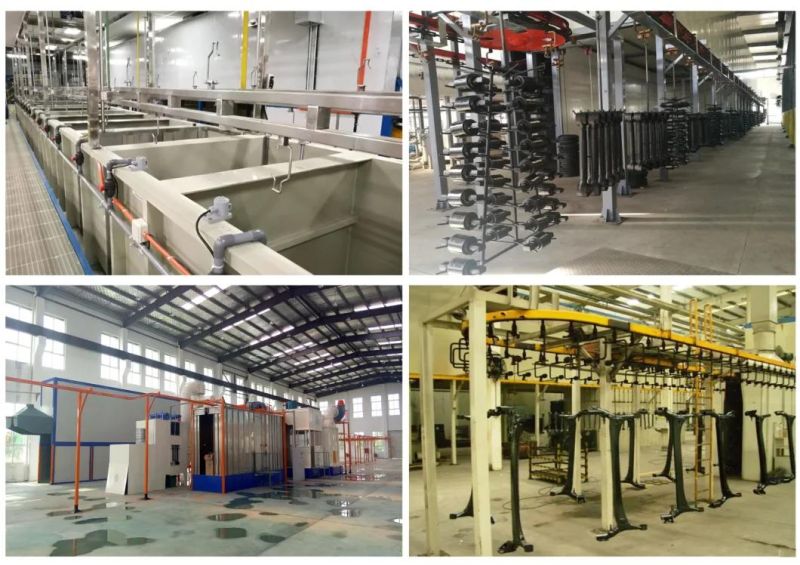

Surface treatment workshop
Customer Guide and audit work at MFG facility

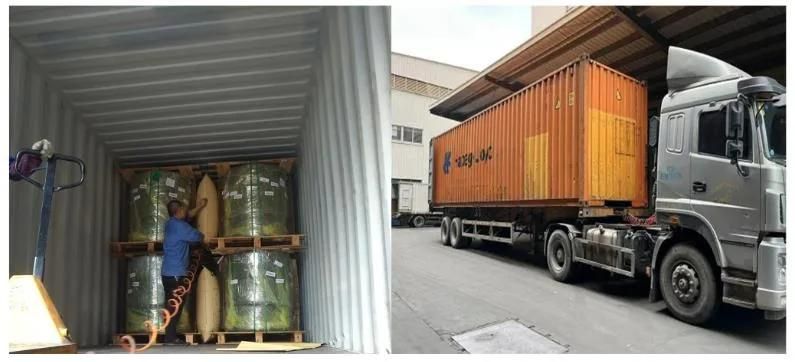

Delivery to xiamen dock

We now have 100 customers from all over the world.1. We have own factory and 80% of staff in our company worked for more than 10 years.
2. We provide a competitive price.
3. High precision, tolerance can be within ±0.01mm.
4. 14 years' export experience.
5. Small order also is welcomed.
6. We can also provide one-stop service, including mold and assembly.
7. NDA apply to all customers.
