• Model NO.：1465ZS0034
• Body Material：Iron
• Component：Fuel Pressure Regulator
• Certification：ISO9001, IATF16949
• OE Number：1 465 ZS0 034
• Interchanged：09284008**
• Pump：0445010307, 0445010397, 0445010404 & etc
• Car Info.：ALFA ROMEO GIULIETTA (940_)
• Type：252 Type Henshine IMV
• Usage：for Bosch Fuel High-pressure Pump
• Transport Package：Natural
• Specification：Box No. 4
• Trademark：Henshine
• Origin：China
• HS Code：8481803990
• Production Capacity：28700

Overview Product Description

Detailed Photos                                                   FIGURE 1: 09284008** shown in the Cutaway of Valve ASSY, Injection Pump 0445010307
                                                                                 (Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)

                                                   FIGURE 1: 09284008** metering unit of Valve ASSY, High-pressure Pump 0445010307
                                                                                 (Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)



                                                   FIGURE 3: 09284008** sample shown in Pump 0 445 010 438 Pump by Ningbo Henshine
                                                                    (Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)

                                                 FIGURE 4: 09284008** sample shown in Pump 0 445 010 438 Pump by Ningbo Henshine - 2
                                                                           (Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
 Packaging & Shipping



Manufacturer OE Number:      ALFA ROMEO 71772309
Brand:                                       HENSHINE

Material:                                    plastic, iron

Delivery time:                           1-3days

Colour:                                      Silver

Surface Finish:                         High Quality

Placement on Vehicle:

BrandModelEngine codeVehicle typeCapacity [cm3]Engine power [kW]Engine power [KM]YearsALFA ROMEOGIULIETTA (940_)940 A3.0001.6 JTDM (940FXD1A)1598771052010.04 -ALFA ROMEOGIULIETTA (940_)940 C5.000,
940 C1.000,
552 80 4441.6 JTDM (940.FYB1_)1598881202015.02 -ALFA ROMEOGIULIETTA (940_)940 C5.0001.6 JTDM (940.FYE1_)
2.0 JTDM1598851162015.09 -ALFA ROMEOGIULIETTA (940_)940 A7.000,
940 B9.000(940FXH1A, 940FXH11,
940.FXZ11,940.FXZ1A)19561201632010.04 -ALFA ROMEOGIULIETTA (940_)940 A4.000,
552 83 0992.0 JTDM (940FXE1A)19561251702010.04 -FIAT500L (351_,
352_)199 B5.0001.6 D Multijet (199LYD1B)1598771052012.09 -
2018.05FIAT500L (351_,
352_)955 A3.000,
940 C1.000,
552 80 4441.6 D Multijet (199LYE1B)1598881202013.09 -FIAT500X (334_)552 60 384, 552
80 4441.6 D Multijet (334AXA1B, 334AXA11)1598881202014.09 -FIAT500X (334_)552 60 384, 552
80 4441.6 D Multijet (334AXA1B)1598841142014.09 -FIAT500X (334_)552 63 087, 552
63 0882.0 D Multijet 4x4 (334AXB22, 334AXD2B)19561031402014.09 -FIAT500X (334_)552 63 087, 552
63 088, 552 83
0992.0 D Multijet 4x4 (334AXB22, 334AXD2B)19561001362014.09 -& etc ...       PUMP:                                               445010307/ 445010397/ 445010404/ 445010414
                                                   445010424/ 445010455/ 445010463/ 445010466
                                                   445010487/ 445010438

Type:                                          Pressure Regulator Valve/Inlet Metering Valve IMV

Packing:                                     carton

Warranty:                                   1 year



The fuel metering unit includes a fuel metering valve, a metering valve actuator, a fail-fixed valve, a flow increase valve, and a flow decrease valve. The fuel metering unit is configured such that, upon electrical power interruption to the metering valve actuator, the fail-fixed valve shifts and provides a hydraulic lock on the fuel metering valve, to thereby maintain its position. The flow increase and flow decrease valves are powered from a power source that is independent of that used to power the fuel metering unit and when appropriately energized will allow.

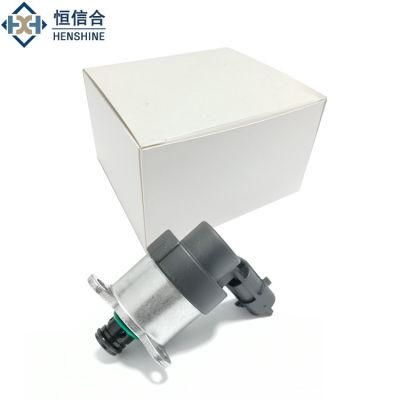

Fuel Control Actuator Fuel Metering Valve 1 465 ZS0 034 for RENAULT. The Fuel Control Actuator (FCA) or Fuel Pressure Regulator is an electronically controlled solenoid valve. The ECM controls the amount of fuel that enters the high-pressure pumping chambers by opening and closing the FCA based on a demanded fuel pressure. When the FCA is opened, the maximum amount of fuel is being supplied to the fuel injection pump. Any fuel that does not enter the injection pump is directed to the overflow valve. The overflow valve regulates how much excess fuel is used for lubrication of the pump and how much is returned to the fuel tank through the drain manifold. An audible click from the FCA is normal when operating the key to either the ON or OFF positions.

Henshine is one of the most professional manufacturers and suppliers for suction control valves in China Please rest assured to buy or wholesale high-quality suction control valves made in China here from our factory.NEW High-Quality OEM 1 465 ZS0 034 Fuel Pump Inlet Metering Unit. If you want to buy or wholesale diesel suction control valve please contact us.
