• Model NO.：GW-AM005
• Certification：TS16949
• Function：High Temperature Resistant
• Sound Absorbing Material：Fiber Glass Filament
• Surface Protection Material：Fiber Glass Cloth
• Noise Eliminating Band：High Frequency
• Resistive Muffler Type：Straight Pipe Type
• Material：Mild Steel
• Internal Structure：Baffle
• Surface Treatment：Natural
• Welding：MIG-Welded
• Model：Universal
• Protect Measure：Antirust Oil
• Customized：Size, Internal Structure
• Logo：Customized Is Available
• Internal Filling：Glass Fiber
• Thickness：1.2mm
• Internal Filling：Glass Fiber
• Protect Measure：EPE+Bubble Bag
• Sound Level：Moderate Sound
• Type of Muffler：High Flow, Straight Through
• Product Type：Absorption Muffler
• Transport Package：Carton Package
• Specification：Customized
• Trademark：GRWA
• Origin：China
• HS Code：87089200
• Production Capacity：5000

Exhaust mufflerMild Steel+AluminizedDescriptionStainless steel exhaust mufflerParts No.GW-AM005PackingBubble bag and strong boxCar makeUniversal carsBrandGRWAPlace of originQingdao, ChinaCertificateSGS TS16949Warranty2 year

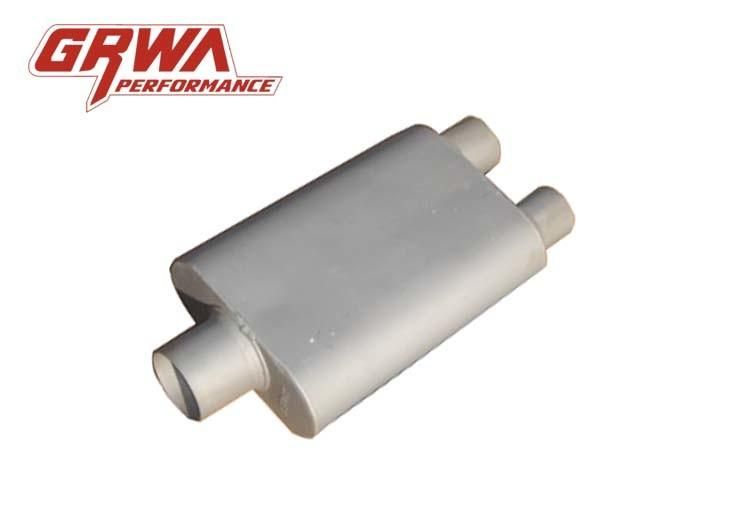

    High quality parts GRWA Aluminium-plated muffler

Muffler - The function of a Muffler or a Silencer in Vehicle is to cool the exhaust gases by expansion through it and to
reduce the noise of outgoing gases.The exhaust gases must be discharged into the atmosphere with minimum
restriction.The restriction in flow of exhaust gases causes back pressure.Back pressure on pistonhead during exhaust
stroke due to restriction of flow of exhaust gases.It is generally 0.7 - 0.9 Kg/cm2 at maximum rpm.The back pressure at
low value by proper designing of exhaust system.High back pressure results in higher bhp loss at particular speed,
Dilution of fresh charge with exhaust gases, Increased fuelconsumption.Back pressure can be reduced by proper
design which may become bulky and costly.
The exhaust manifold are made of cast iron or steel.Bend should be such made as to give minimum
restriction.Muffler design have internal baffles which restrict the flow of gases and cause back pressure.
It reduce noise effectively with more rise in back pressure.
]The last specified function is the function of the car muffler.It is necessary because the gas coming fromthe
combustion in the pistons of the engine would generate an extremely loud noise if it were sent directly in the ambient
surrounding through the exhaust valves.
