Design Pressure  (Mpa)

                                PN

      Bellow

        OD

      Single

       braid

      Single

       braid

      Double

       Braid

       Three

         lays

        braid

Technial specifications

1.In accordance with standard GB/T 14525-14525

2.No insufficient soldre,crack,arc pit defect,etc

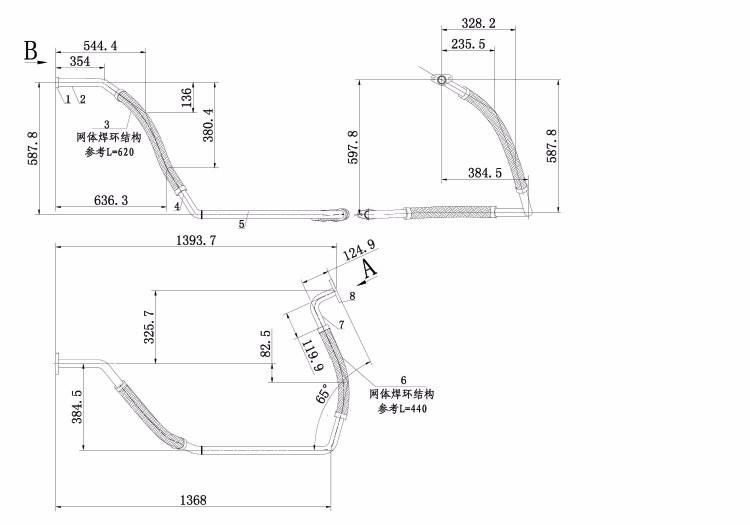

Technical requirements:

1.According to GB/T14525/2010

2.Remove the impurities and splash and guarantee weld appearance

3.Dense waves on both ends of the hose

4.Working pressure 25 bar,working temperature -20~130 degrees Celsius

5.Firstly Spray one layer of anti-rust primer on the surface of the carbon steel,

Then spray on imitation plating silver metallic paint,do not spray on sealing

Surface,but wipe with anti-rust oil

6.Note:Down groove butt on welding ring position8 inch metal tube corrugated bellows

Main Product accessories Braid, corrugated pipe, and two end joint, or flange.

Petroleum, medicine, chemical, electric power, power plants, industrial, machinery, compressor, etc.

Installation requirements:

We will send you a whole list, making sure the goods are under safe installation.

Product usage:

Have excellent flexiblity, corrosion resistance, resistance to high temperature (-235 ~ + 450 ), high pressure resistance (up to 32 mpa),can be connected to any direction in the piping,For temperature compensation and vibration absorption, noise reduction, change the media conveying direction,Eliminate pipe or mechanical displacement between pipeline and equipment, etc.Double flange of corrugated metal hose is particularly applicable for flexible joint of various vibrating pump, valve etc
