• Model NO.：Comflex
• Certification：ISO9001, RoHS
• Noise Source：The Noise of Engine
• The Noise of Engine：The Combustion Noise
• Automobile Chassis Noise：Transmission Noise
• Component：Exhaust Pipe
• Main Market：South America
• Products Name：Auto Exhaust Bellow
• Size：DN40-DN100
• Material：Stainless Steel
• Surface：Bellows+Outer Braid+Inner Braid,Interlock+Caps+Nip
• Bellows：Single Layer or Multi-Layer
• MOQ：130PCS
• Dilivery Time：7-15days
• Payment Term：T,T
• Customized：Accept
• Feature：Flexible Exhaust
• Transport Package：Standard Seaworthy Package
• Trademark：COMFLEX
• Origin：China Jiangsu
• HS Code：3917310000
• Production Capacity：200000PCS,Month

Basic Info.

Model NO. Comflex Certification ISO9001, RoHS Noise Source The Noise of Engine The Noise of Engine The Combustion Noise Automobile Chassis Noise Transmission Noise Component Exhaust Pipe Main Market South America Products Name Auto Exhaust Bellow Size DN40-DN100 Material Stainless Steel Surface Bellows+Outer Braid+Inner Braid/Interlock+Caps+Nip Bellows Single Layer or Multi-Layer MOQ 130PCS Dilivery Time 7-15days Payment Term T/T Customized Accept Feature Flexible Exhaust Transport Package Standard Seaworthy Package Trademark COMFLEX Origin China Jiangsu HS Code 3917310000 Production Capacity 200000PCS/Month

Product Description

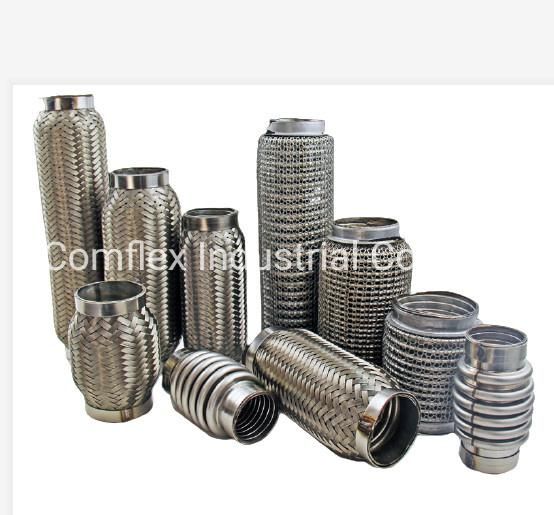

Stainless Steel Flex Pipe Exhaust Couplings with Mild Steel Extensions

Application:

Flexible Exhaust Pipe Connector:

It is installed in the exhaust pipe between the engine exhaust branch pipe and the muffler, which makes the connection of the entire exhaust system flexible and plays a role in reducing noise. Easy to install and extend the life of the exhaust noise reduction system.

Mainly used for light trucks, small passenger cars, and buses. The structure is a double-layer corrugated pipe covered with a steel wire mesh sleeve, and the two ends are a straight edge segment outer snap ring structure. In order to improve the noise reduction effect, an expansion joint or mesh sleeve can be installed in the bellows.

Exhaust Flexible Engine Pipe for truck

-1. Suitable for a wide range of the tail pipe link.
-2. We can make parts with a high degree of flexibility.
-3. In particular, we increase the height of the bellows to enhance the effectiveness of vibration absorption.
-4. This product is used in exhaust system and high-and low-temperature.
-5. It can decrease engine noise and vibration.


size range		DN40-DN100
Material		ss201. ss304
Length		standard/customized
Customized		accept
Free sample		accept
delivery time		7-15days

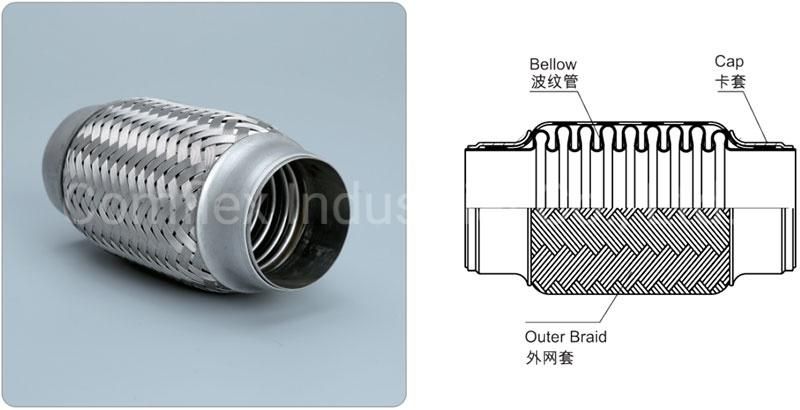

Type 1.
Bellow + Outer Braid + Cap

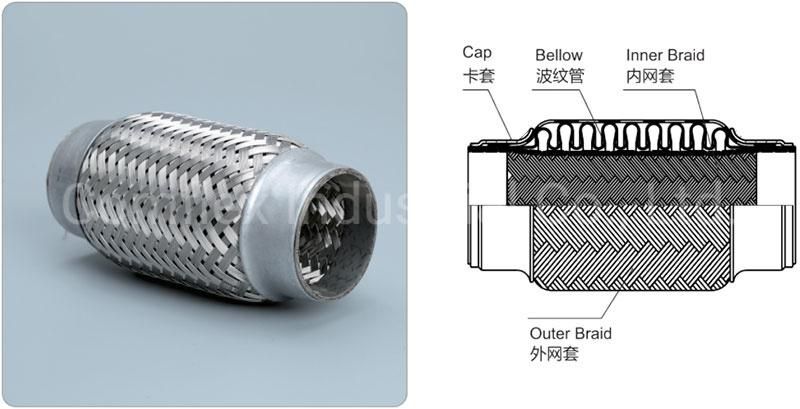

Type 2.
Inner Braid + Bellow + Outer Braid + Cap

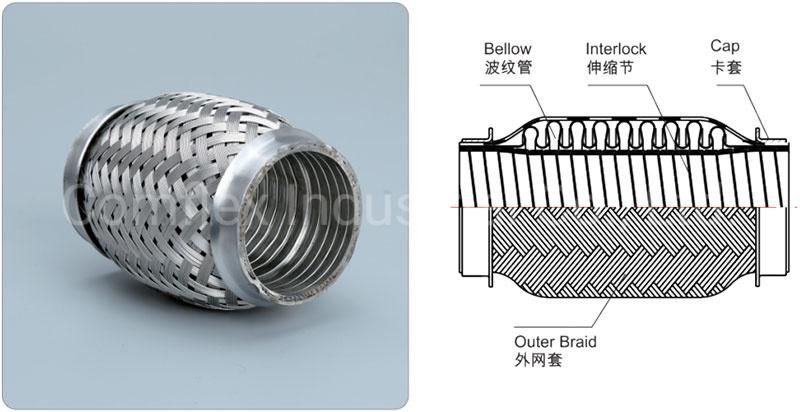

Type 3.
Interlock Pipe + Bellow + Outer Braid + Cap

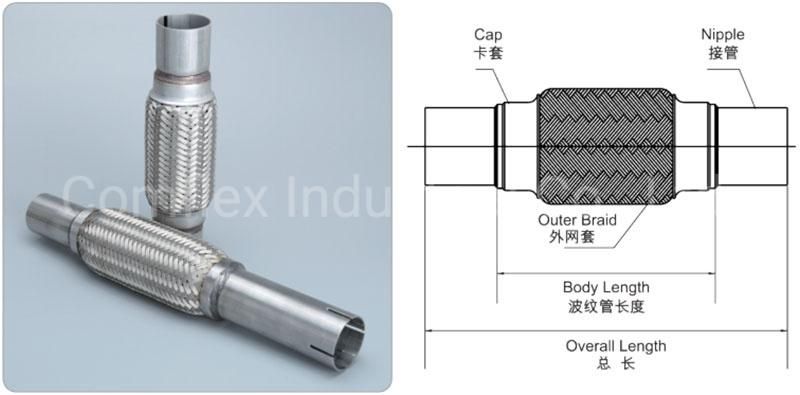

Type 4.
With Nipple

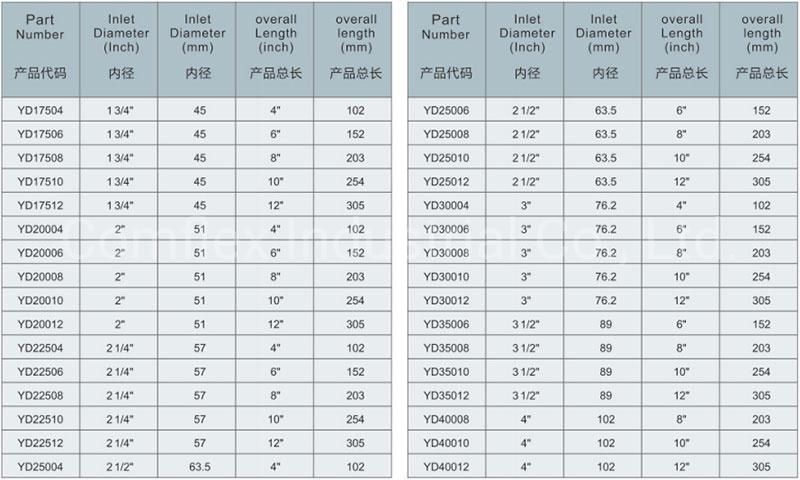

Technical Parameters:

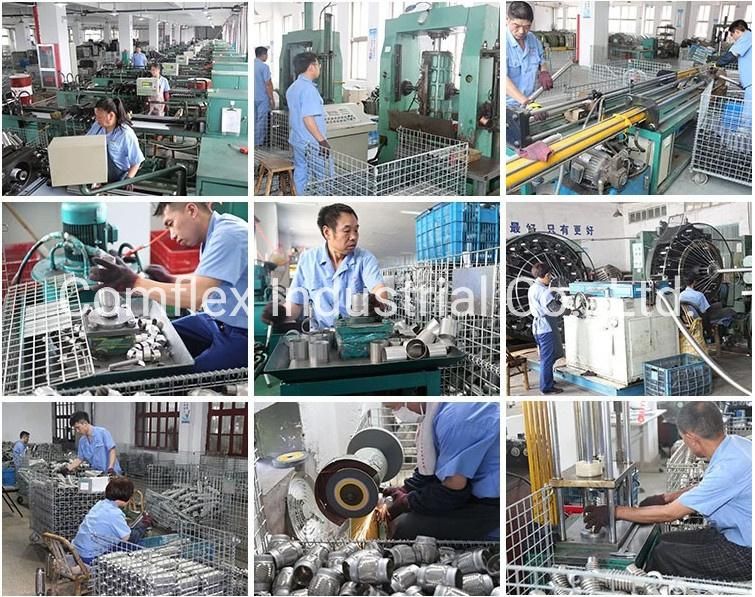

Auto Exhaust Bellow Production Line:

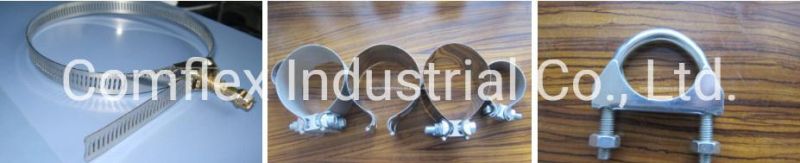

Related products


Certifications:

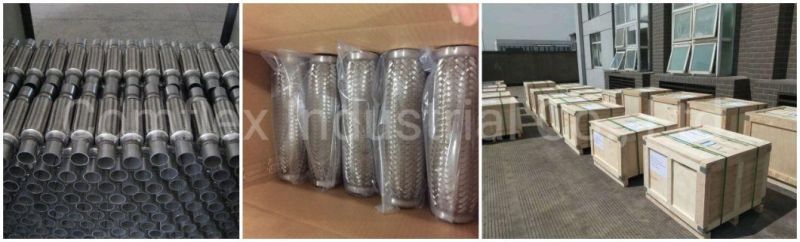

Package&Delivery:

FAQ
Q: Why so many suppliers choose us?
A: Because we are one of the most professional manufacturers of flexible exhaust pipe with more than 25 years of experience.

Q: What is the delivery time of the order?
A: The delivery time would be depended to your quantity, usually from 7~20 days

Q: How about the payment terms?
A: Normally 30% deposit in advance, the balance should paid before shipment.

Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer free samples but courier costs covered by the customer.

Q: Can the products be manufactured by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as a requirement.
