Garrett 858161-5002s G25-550 Turbo with Ceramic Dua Ball Bearing V-Band

Guangzhou Junfeng Auto Parts Co., Ltd.
  • Car Model：Performance,Custom
  • Engine Type：High Performance Engine
  • Type：Mechanical Turbocharger System
  • Body Material：Steel
  • Electric Turbocharger Type：Axialflow
  • ETS Component：Turbine

Base Info

  • Model NO.：G25-550
  • ETS Type：Axialflow
  • Application：Racing Cars
  • Brand：Boosiwheel
  • Displacement：1.4L - 3.0L
  • Previous Versions：871389-5005s 871390-5005s 871389-5004s
  • Material：High Quality Stainless Steel
  • Power：350 - 660HP
  • Turbine Housing：Stainless Steel 0.72ar V-Band
  • Compressor Wheel：Billet Wheel
  • Compressor Housing Ar：.63 a,R
  • Transport Package：Neutral Carton
  • Specification：8KG
  • Trademark：booshiwheel
  • Origin：Jiangsu
  • HS Code：8414803090
  • Production Capacity：50000PCS,Year

Description

Part Number871389-5001SPrevious Version877895-5001S, 877895-5011sOE number871389-5002sYear2018-Descriptionfor racing vehiclesCHRA858161-5002STurbo ModelG25 G25-550Displacement1.4L- 3.0LKW550-660 HPturbine housing kit740902-0080inletT25 /T4outletV-BANDturbine housing A/R0.49Compressor housing A/R0.70Turbine O.D.mm54.0Turbine I.D.mm49Turbine TRIM84Compressor TRIM65Actuator1.0 barcompressor O.D.mm60.0Compressor  I.D.mm48Cooled typewater cooledturbine housing typestainless steelCondition

Brand new

Features:

  • GARRETT® G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
  • FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
  • NEW TURBINE WHEEL AERO CONSTRUCTED OF MAR-M ALLOY RATED FOR 1055°C
  • STAINLESS STEEL WASTEGATED AND NON WASTEGATED TURBINE HOUSING OPTION CAPABLE OF 1050°C
  • OIL RESTRICTOR AND WATER FITTINGS INCLUDED

    •

    Compressor Wheel Inducer: 48mm
    Compressor Wheel Exducer: 60mm
    Compressor Wheel Trim: 54
    Compressor Housing Inlet: 3 Inch Diameter
    Compressor Housing Outlet: 2 Inch Diameter
    Compressor Housing A/R: .70
    Turbine Wheel Inducer: 54mm
    Turbine Wheel Exducer: 49mm
    Turbine Wheel Trim: 84
    Turbine Housing Inlet: 3 Inch O.D. V-Band
    Turbine Housing Outlet: 3.55 inch O.D. V-Band
    Includes Oil Feed (1mm) Restrictor Fitting to -4AN
    Includes two Coolant Fittings to -6AN
    Alternate Garrett Product Code(s): 858161-5002S; 740902-0069

    Garrett 858161-5002s G25-550 Turbo with Ceramic Dua Ball Bearing V-Band
    Garrett 858161-5002s G25-550 Turbo with Ceramic Dua Ball Bearing V-Band

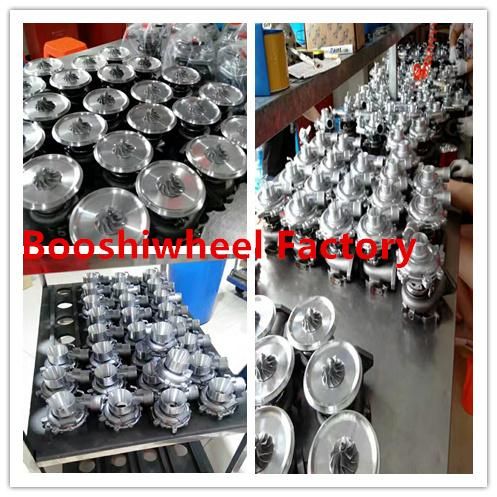

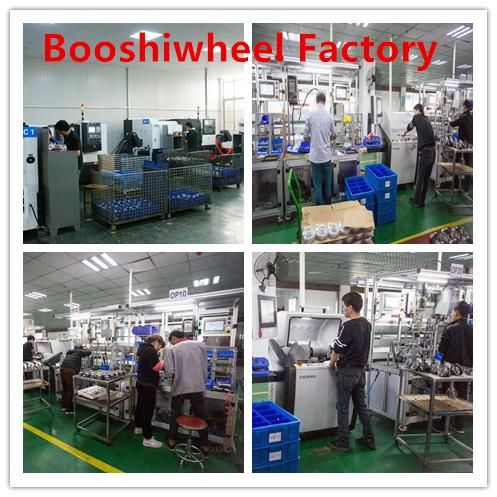

    Booshiwheel Factory
