• Model NO.：F00R000756
• Fuel Saver Type：Additive Burning with Fuel
• Carburettor Type：Downdraft
• OE Number：F00r000775
• Car Info.：Fendt Man
• Item Name：Plv, Pressure Limiter Valve
• Usage：for Denso Fuel Injection Pump
• Interchange Number：1110010035
• Delivery Time：1-3days
• Transport Package：Natural
• Specification：Box No. 4
• Trademark：Henshine
• Origin：China
• HS Code：8481803990
• Production Capacity：20000PCS,Months

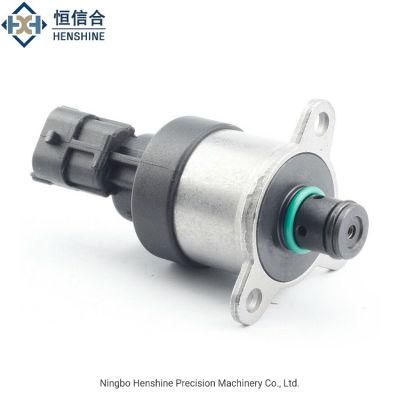

Detailed Photos

Condition:                                 Brand NEW

Manufacturer Part Number:    F00R000775

Brand:                                       HENSHINE

Material:                                    plastic, iron

Delivery time:                           1-3days

Colour:                                      Silver

Surface Finish:                         High Quality

Placement on Vehicle:           Cummins Ford VW

Type:                                        Pressure Limiter Valve PLV

Packing:                                    carton

Warranty:                                  1 year


Models:Cummins Ford VW

Pump:

Warranty:  12 Months
Condition: New                                                                       Part Brand:Cummins Ford VW
Fitment Type: Direct Replacement                                          Fuel pumps:
Superseded Part Number: 1110010035,F00R000775             Interchange Part Number:1110010035,F00R000775
Other Part Number:1110010035,F00R000775                                      Manufacturer Part Number:   1110010035,F00R000775

The fuel metering unit includes a fuel metering valve, a metering valve actuator, a fail-fixed valve, a flow increase valve, and a flow decrease valve. The fuel metering unit is configured such that, upon electrical power interruption to the metering valve actuator, the fail-fixed valve shifts and provides a hydraulic lock on the fuel metering valve, to thereby maintain its position. The flow increase and flow decrease valves are powered from a power source that is independent of that used to power the fuel metering unit and, when appropriately energized will allow.

Fuel Control Actuator Fuel Metering Valve F00R000775 For Cummins Ford VW. The Fuel Control Actuator (FCA) or Fuel Pressure Regulator is an electronically controlled solenoid valve. The ECM controls the amount of fuel that enters the high-pressure pumping chambers by opening and closing the FCA based on a demanded fuel pressure. When the FCA is opened, the maximum amount of fuel is being supplied to the fuel injection pump. Any fuel that does not enter the injection pump is directed to the overflow valve. The overflow valve regulates how much excess fuel is used for lubrication of the pump and how much is returned to the fuel tank through the drain manifold. An audible click from the FCA is normal when operating the key to either the ON or OFF positions.

Henshine is one of the most professional suction control valve manufacturers and suppliers in China Please rest assured to buy or wholesale high-quality suction control valves made in China here from our factory.NEW High-Quality OEM F00R000775 Fuel Pump Inlet Metering Unit Fits For Cummins Ford VW, if you want to buy or wholesale diesel suction control valve please contact us.
