• Model NO.：04226-26040
• Body Material：Iron
• Component：Fuel Pressure Regulator
• Certification：ISO9001, IATF16949
• Cylinder：Multi-cylinder
• OE Number：04226-26040
• Interchanged：294200-0*10
• Car Info.：TOYOTA,LEXUS
• Type：Compact SCV
• Item Name：SCV, Suction Control Valve
• Usage：for Denso Fuel Injection Pump
• Pump：22100-0R051,22100-0R050
• Transport Package：Natural, Customized or Hhx Package
• Specification：0.20kg
• Trademark：Natural or Henshine
• Origin：China
• HS Code：8481803990
• Production Capacity：2400PCS,Months

OE information Check

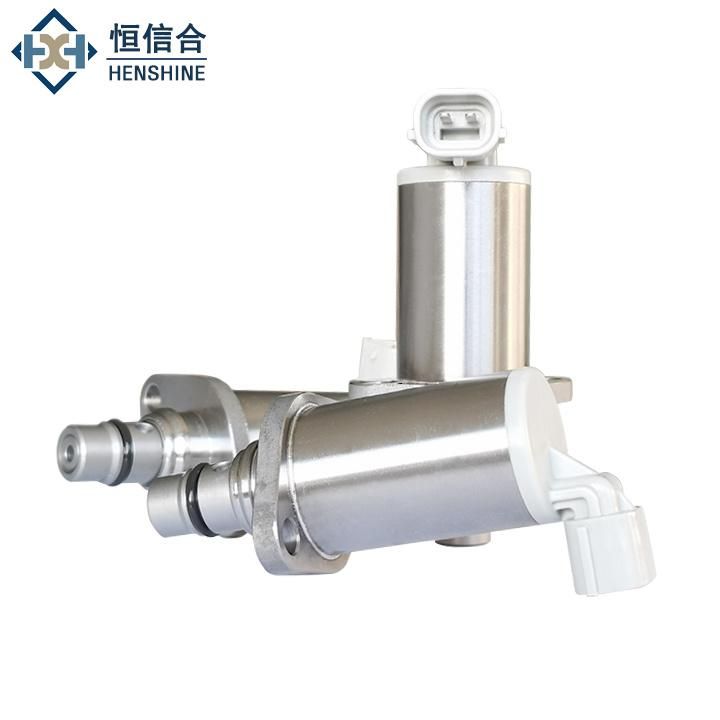

04226-26040 Suction Control Valve Fuel Injection Pump used on TOYOTA/



The Suction Control Valve 04226-26040 is generally installed at the inlet of the high-pressure fuel pump. It is a proportional solenoid valve, controlled by the electronic control unit (ECU), which can control the amount of oil entering the high-pressure fuel pump, thereby controlling the oil pressure in the common rail pipe. The good work of this component can not only ensure that the vehicle can run normally but also enable the engine to run in the most fuel-efficient state to achieve the effect of saving fuel.

2019-09-12



Suction Control Valve

Replaced valve kit of Toyota 04226-269040 fuel pressure regulator fitted on 22100-0R051 injection pump



+Diesel Common Rail System/Fuel System

  -Components of High-pressure Pump/Fuel Supply Pump

   -SCV Valve/Fuel Pressure Regulating Valve; Suction Control Valve



Ningbo Henshine Precision Machinery Co., Ltd



Detailed Photo:

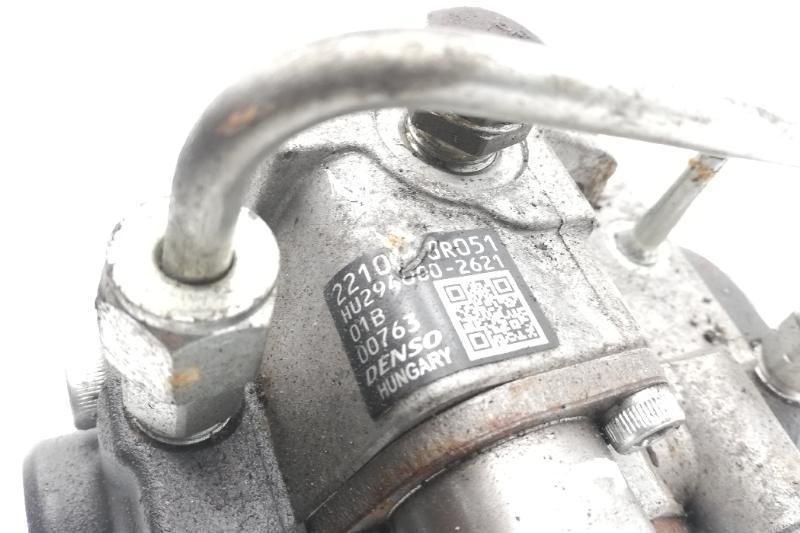

FIGURE 2 Side View of TOYOTA 22100-0R051 Suction Control Valve 04226-26040

(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)

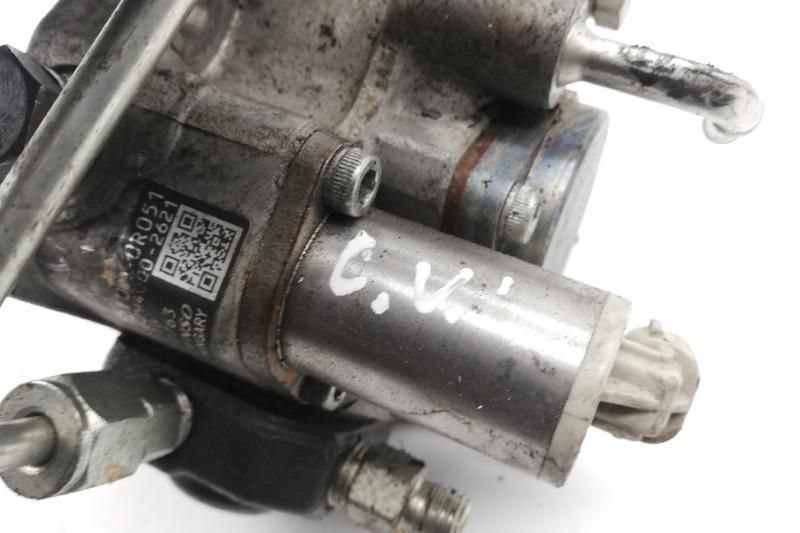

Figure 3 Suction Control Valve 04226-26040 Fitting on 22100-0R051| Ningbo Henshine precision Machinery
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)


Make:	TOYOTA/LEXUS
Submodel:	XV/TOYOTA Avensis/Toyota RAV4
Engine Type:	/
Engine Family:	/
Engine Size:	/
Fuel Type:	Diesel
Regulator Usage:	Fuel Injection Pump
Replaces OEM Part Number (application):	294200-0*10

                Condition:                                 Brand NEW

                Manufacturer Part Number:    04226-26040

                Other Numbers:                       TOYOTA 04226-260*0,294200-0*10

                Brand:                                       HENSHINE

                Material:                                    plastic, iron

                Delivery time:                           5-12 days

                Colour:                                      Silver & Gray

                Surface Finish:                         Genuine Quality/NEW

                Placement on Vehicle:             TOYOTA/LEXUS

                Pump:                                        22100-0R051/ 22100-0R050

                Original Number:                      DCRS300980

                Replaced                                   294200-0*10

                Type:                                          Fuel Pressure Regulator/ IMV

                Packing:                                    Customized/ No 3/4 Natural Box & Henshine Box

                Warranty:                                  12 Months

                Min Order:                                 20 pcs

                Production Capacity:               2400 pcs per month

                Means of Transport:                Ocean, Land, Air, Express

                Payments:                                 Visa, Mastercard, T/T, Online Transfer, Cash on pickup



                A fuel pressure regulator also named a suction control valve, or SCV Valve helps maintain the fuel pressure in the Fuel
                Injection System. If the fuel injection system needs more fuel pressure, the fuel pressure regulator releases more fuel
                to go to the engine. This is vital because that is how the fuel gets to the injectors.  Blocking the pass-through to the fuel
                tank off completely, the fuel pump will try to force too much fuel into the injectors which will cause them to fail and you
                will end up needing another auto repair service.



                As you could see, the pressure regulator plays a critical role in the common rail diesel injection system.

                A good factory, a good supplier with stable quality, and follows IATF16949 rules strictly.



               After being tested by many of our customers in Europe and the Americas, this pressure regulator is a good replacement
               for OE diesel parts, like 04226-26040 Diesel Metering Valve.
