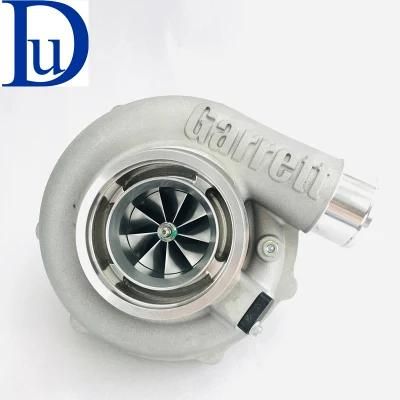

Garrett Genuine G30 Series 880693-5002s G30-770 Super Core - Std Rotation

Guangzhou Junfeng Auto Parts Co., Ltd.
  • Car Model：Performance,Custom
  • Engine Type：Performance,Custom
  • Type：Mechanical Turbocharger System
  • Body Material：Steel
  • Electric Turbocharger Type：Axialflow
  • ETS Component：Turbine

Base Info

  • Model NO.：G30-770
  • ETS Type：Axialflow
  • Application：Racing Engines
  • Brand：Garrett
  • Displacement：2.0 - 3.5L
  • Part No.：880694-5002s G3071r
  • Material：Ceramic Dual Ball Bearing
  • Power：475 - 770HP
  • Rotation：Reverse Rotation.
  • Turbine Inducer：60mm
  • Compressor Housing Ar：0.70
  • Cooling Typer：Water Cooled + Oil Cooled
  • Turbine Exducer：55mm
  • Compressor Inducer：58mm
  • Compressor Exducer：71mm
  • Compressor Trim：65
  • Turbine Trim：84
  • Transport Package：Neutral Carton
  • Specification：8KG
  • Trademark：booshiwheel
  • Origin：Jiangsu
  • HS Code：8414803090
  • Production Capacity：50000PCS,Year

Description

880693-5002S740902-00860.61V-BandV-BandFree FloatN740902-00870.83V-BandV-BandFree FloatN740902-00881.01V-BandV-BandFree FloatN740902-00891.21V-BandV-BandFree FloatNG30-700 Reverse Rotation Supercore PNTurbine Kit PNA/RInletOutletWastegateDivided880694-5002S740902-00960.61V-BandV-BandFree FloatN740902-00970.83V-BandV-BandFree FloatN740902-00981.01V-BandV-BandFree FloatN740902-00991.21V-BandV-BandFree FloatN

    Garrett Genuine G30 Series 880693-5002s G30-770 Super Core - Std Rotation
    Garrett Genuine G30 Series 880693-5002s G30-770 Super Core - Std Rotation

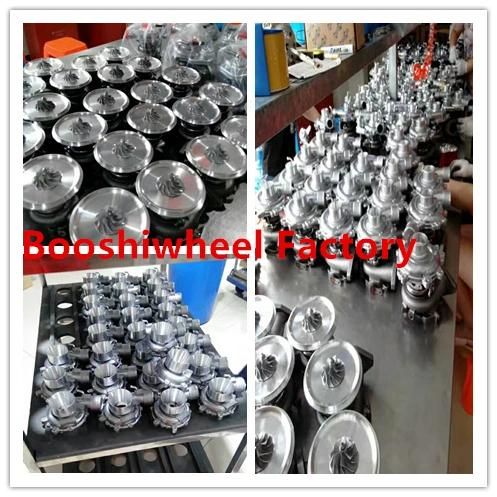

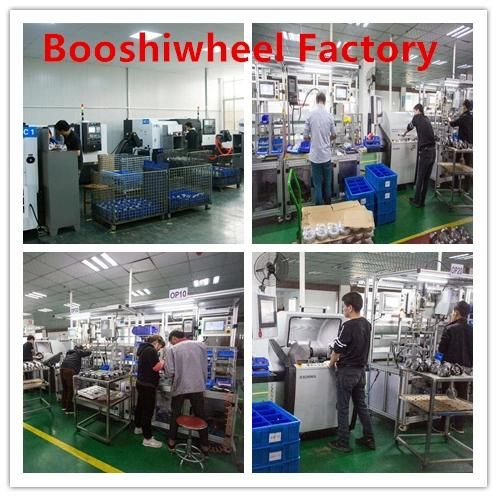

    Booshiwheel Factory
    Garrett Genuine G30 Series 880693-5002s G30-770 Super Core - Std Rotation
    Garrett Genuine G30 Series 880693-5002s G30-770 Super Core - Std Rotation
