• Model NO.：TL81
• Part No.：465338-5002s
• Previous No.：465338-0002, 465338-0003, 465338-0006, 465338-0007
• 465338-0012, 183972：183973, 465338-9002, 465338-2m, 9y-0619
• OEM：0r5849, 1n3579 1n3580, 8n9656, 8n9657, 9y0619
• Displacement：V12 Cylinders
• Transport Package：Carton
• Specification：Standard
• Trademark：Booshiwheel
• Origin：China
• HS Code：8414803090
• Production Capacity：5000sets,Month

Basic Info.

Model NO. TL81 Part No. 465338-5002s Previous No. 465338-0002, 465338-0003, 465338-0006, 465338-0007 465338-0012, 183972 183973, 465338-9002, 465338-2m, 9y-0619 OEM 0r5849, 1n3579 1n3580, 8n9656, 8n9657, 9y0619 Displacement V12 Cylinders Transport Package Carton Specification Standard Trademark Booshiwheel Origin China HS Code 8414803090 Production Capacity 5000sets/Month

Product Description

Tl81 465338-5002S 465338-0002 0r5849 1N3579 9Y0619 4p8576 Turbo for Caterpill D10-Tractor 3412, 3406 Engine

SPECIFICATION

Part Number	465338-5002S
Previous Part Number	465338-0002, 465338-0003, 465338-0006, 465338-0007, 465338-0012, 183972, 183973, 465338-9002, 465338-2
OE Number	0R5849, 1N3579 1N3580, 8N9656, 8N9657, 9Y0619, 9Y-0619
Description	Earth Moving 245 Excavator, D10-Tractor
CHRA	447112-0002 (447112-5002S, 409844-0001)(0R5921, 8N9685) $1,346.86 IN STOCK
Turbo Model	TL8112
Engine Model	3412, 3406
Engine Manufacturer	Caterpill
Fuel	Diesel
Displacement	V12 Cylinders
Machine Engine	D348
Tract-Type Tractor	10C, 10S, 10U, 10, D10
Bearing Housing	447159-0001 (0R5775, 7E9493, 7N8188)(Water Cooled) $734.31 NEW IN STOCK
Turbine Wheel	408492-0022 (6N4606, 101081436)(408492-0012, 408492-0016, 408492-0023)(Ind. 111.4 mm, Exd. 87.73 mm, Trm 13.97, 11 Blades) $209.00 NEW IN STOCK
Comp. Wheel	409132-0003 (409132-0004)(9N3674)(Ind. 79.8 mm, Exd. 108. mm, Trm 9., 6+6 Blades, Superback)(1200016471) $92.80 NEW IN STOCK
Back plate	408487-0013 (6N7962)(1300016142) $135.20 NEW IN STOCK
Heatshield Number	441096-0001 (2030016145) $19.96 NEW IN STOCK
Repair Kit	468103-0000 (3545824)(5000010008) $87.20 NEW IN STOCK
Turbine Housing	441507-0022 (8N9655)
Compressor Cover	447209-0021
Turbine Housing AR	1.08
Gasket (turbine inlet)	132040 (9749, 1S4295, 202873, 205396, 3500683, 210017-0000, 409038-0000)(1900000003)(417382 Replaced by 470939, 20784537) $13.20
Gasket oil inlet	210161 (Paper) $2.00
Gasket (oil outlet)	210172 (Paper) $2.00
Gasket (water inlet and outlet)	210021 (210021-0000, 409037-0000, 413671-0000, 3519807, 311496)(1900000027)(Paper) $4.48
NOTE	Restricted to Caterpill R.H, L.H
Manufacturer	Honeywell-Garrett

Replaces 465338-0003, 465338-0006, 465338-0007

Application

Caterpill D10-Tractor 3412, 3406 Engine

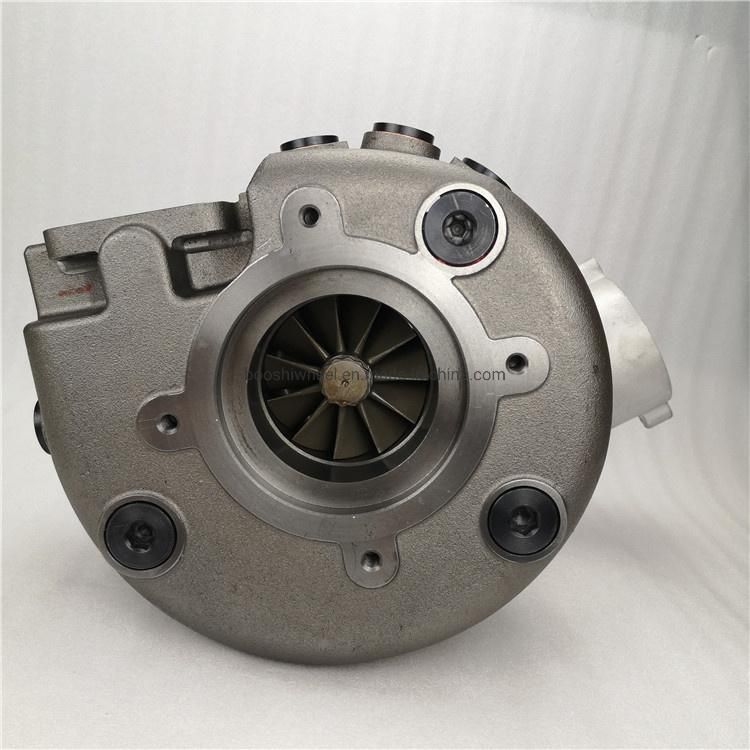

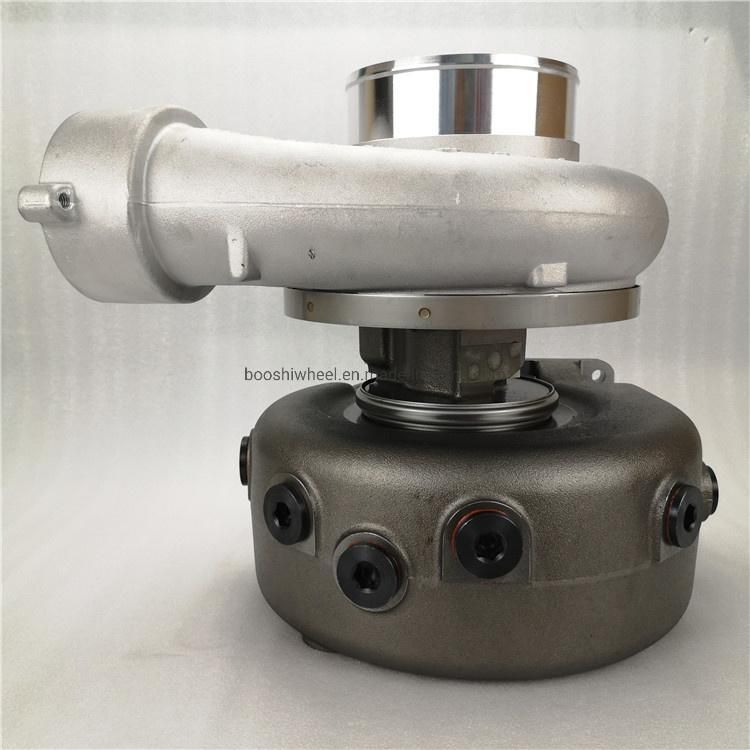

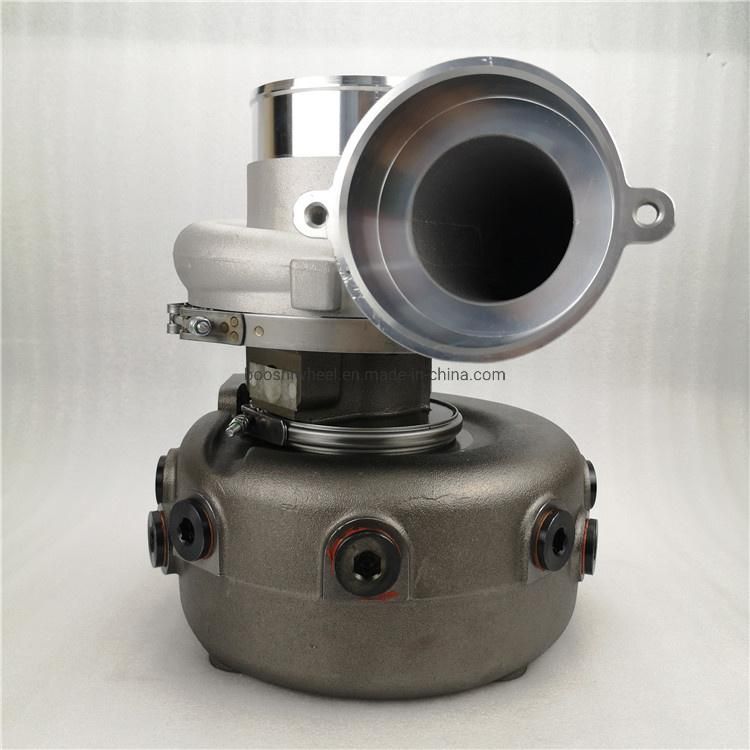

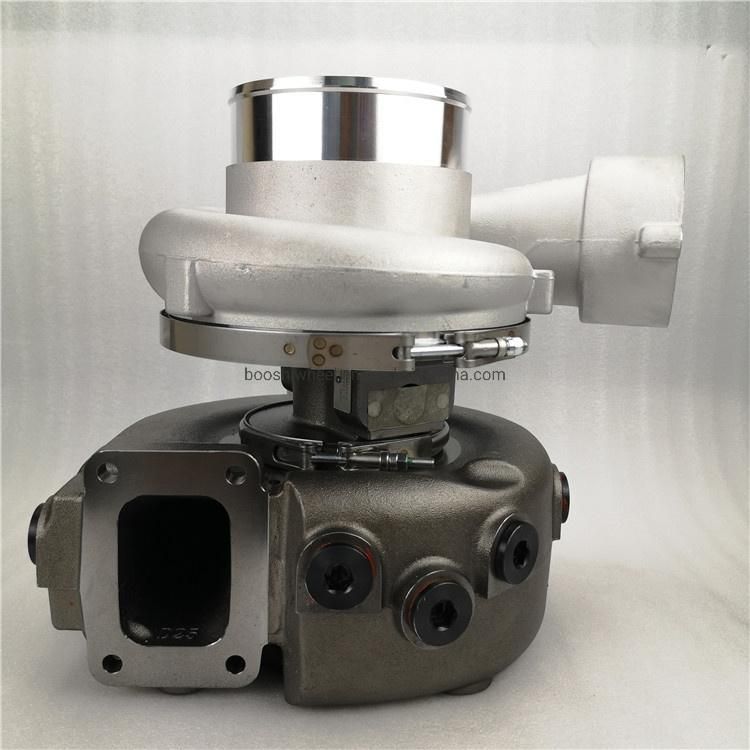

PRODUCT PICTURES



OUR DELIVERY

All products are packaged by neutral carton and the lead time will be 5-7 days for delivering.

OUR PRODUCTS

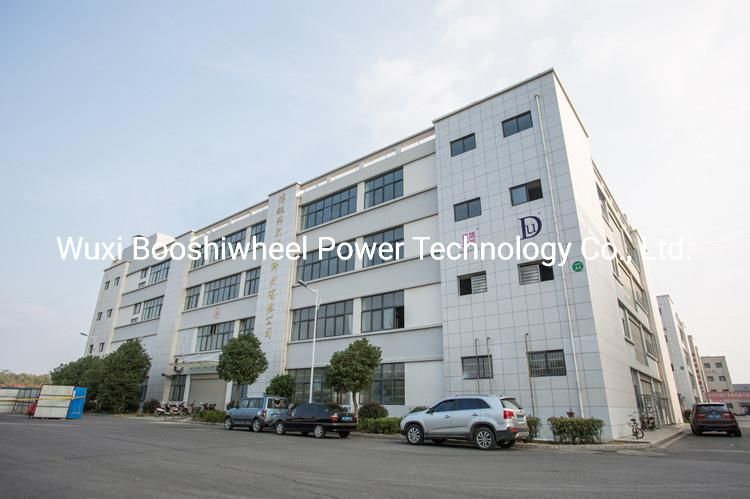

OUR COMPANY

1.Wuxi  Booshiwheel  Power Technology Co,Ltd. ,specialized in manufacturing turbochargers . Our factory was established in 2003 in Wuxi City .

We built a newfactory in He nan province on 2018 year.  Import CVE Electron Beam Welding from UK,  Studer CNC grinding machine from Switzerland,  Okuma CNC machine from Japan, Schenck balancing machine from Germany.

2.The company has a wide range of products ,including Turbocharger for all types of vehicles, Turbine housing, Compressor housing ,Nozzle ring ,Cartridge,
Actuator ect.

3.The company has imported Japanese advanced equipments,such as assembly line,processing production line and high speed balance,as well as the latest
testing facilities.

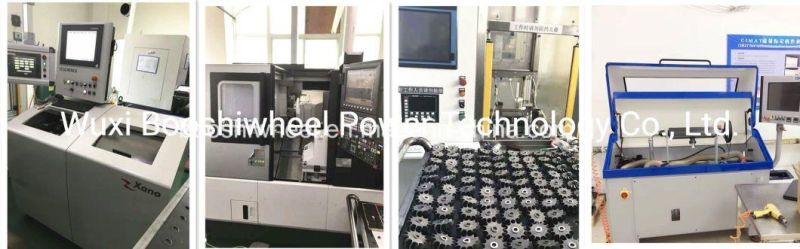

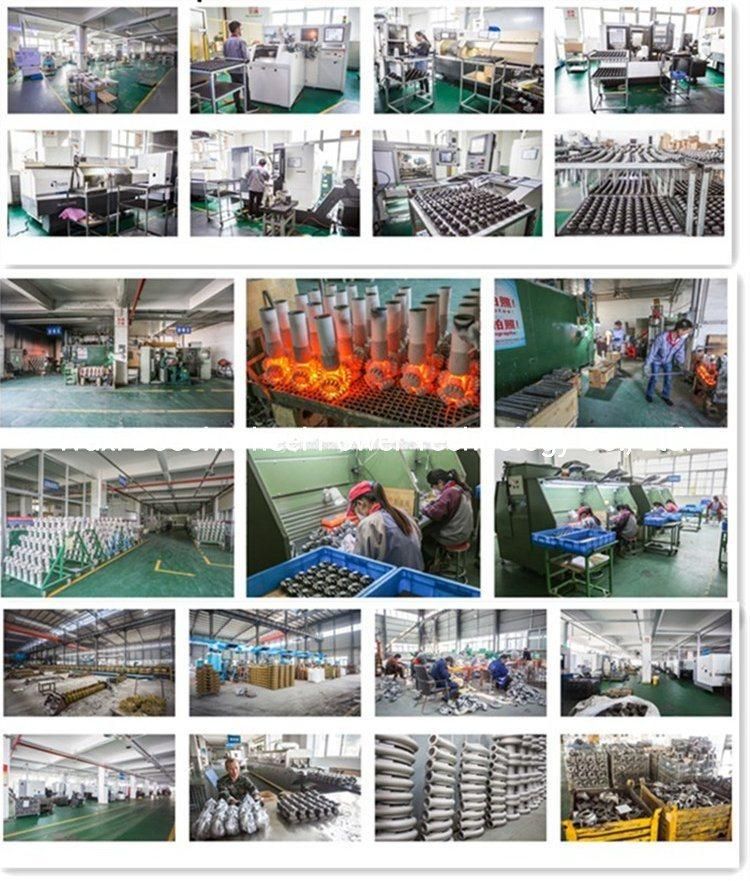

OUR WORKSHOP



OUR TRADE SHOWS

Company Profile



1.Wuxi Booshiwheel Power Technology Co,Ltd.,established in 2002,is engaged in designing and producing turbochargers and turbo parts that are used in vehicle and engineering machinery.We can also provide maintenance and technological services.



2.The company has imported Japanese advanced equipments,such as assembly line,processing production line and high speed balance,as well as the latest testing facilities.



3.The company's business concept are "make contribution to the development of society by technology" and "talent is the biggest and unique wealth",focus on manufacturing global the most cost-effective turbochargers.



Last ,we are looking forward to cooperating with you .

FAQ
1:Are you factory or only company?

we have factory to produce turbo products ,such as ship turbos,performance turbos,aftermarket turbos,etc .And also we have the agent for some other brand.

2:Why we can choose you?
1):Reliable-we are the real company, we dedicate in win-win.
2):Professional-we offter the turbo products exactly you want.
3):Factory-we have factory,so have compective price,fast delivery time,high quality goods.

3:How about the shipping cost?
If your goods is not large,we can send goods to you via express,such as FEDEX,DHL,EMS,TNT,etc.if your goods is large ,we will send to u via sea or air,we can quote the price base on EXW,FOB,CIF&CNF as you like, you can choose whether to use our forwarder or yours.

4:How about the price ? Can you make it cheaper?
the price depends on the item your demand quantity,Final quotation according to receiving full description of the item you want.

5:How about the sample time ?What is the payment ?
Sample time: 3-10days after e-proof confirmed and your payment received. T/T, 30% deposit ,and the balance before the shipment. Welcome to contact us!
