Aluminum Plate-Fin Oil Cooler for Komatsu

Wuxi Jiushengyuan Science & Technology Co., Ltd.

Structure：Plate and Bar
Name：Aluminum Plate-Fin Oil Cooler for Komatsu
Material：Aluminum
Color：Black or Silver
Cooler Type：Oil Cooler
Technique Method：Brazed,Welding

Base Info

Model NO.：PLS00055
Test：100% Passed
Service：ODM OEM
Company Type：Manufacturer
Keyword：Heat Exchanger, Oil Cooler, Cooler
Principle：Mixing Heat Exchanger
Structure Material：Metal Material
Core：Aluminum Heat Exchanger
Type：Casting Heating Equipment
Application：Cooler
Style：Plate
Transport Package：Wooden Box or Carton
Specification：CE, ISO9001
Trademark：JS Brand
Origin：Jiangsu, Wuxi
HS Code：8419500090
Production Capacity：3000 Tons,Year

Description

PS : If you want to know the price , please tell me your quantity , more quantity , better price.
Core : high strength, high heat conductivity,high safety coefficient.

Sonicleaning : Sonicleaning,High efficiency,little corrosion to metal , few pollution.

Vacuum brazing : Strict control of vacuum degree, temperature and time.

Argon Welding : Weld Gaps straight appearance , squamous uniform.

Test : Air tightessn test and Pressure Text

Product Category--construction machinery
For Hitachi Excavator
EX07-7    EX60      EX90      EX100-1    EX120-5    EX200-1    EX200-2/3 EX200-5 EX220-1 EX220-2 EX220-5    EX300-1    EX300-3    EX300-5 EX400-2 EX400-3 EX450    ZAX200     ZAX240     ZAX330-1 ZAX330-3
For Komatsu Excavator
PC60-5/6 PC60-2/3 PC60-7 PC100-3   PC2100-6   PC100-5
PC200-2(220-2) PC200-3    PC200/220-5 PC200-6 PC200-7   PC220-1 PC220-6 PC220V8 PC220LC-3   PC350(245-6)    PC400-3   PC400-5/6 PC210   PC300-5    PC300-3   PC650     PC220-7    PC130-7    PC200-8 PC220-8 PC350-7   PC360-7
For Doosan Excavator
DH220-5 DH320   DH60-7 DH258-7 DH300-5 DH220-3 DH225-7
DH300-7 DH280   DH55     DH258-5 DH500-7
For Caterpillar Excavator
E312    E320B   E110B(120B)   E300    E200B   E320C    E330     E320-1
E450    E320-2 E70B E325B    E312B E330B   E325C    E450     E330D E320D
For Kobelco Excavator
SK60   SK045    SK200-5   SK09    SK07-2    SK04W5    SK220-3A    SK230 SK07N2   SK120   SK200-3   SK200-1   SK200-6    SK200-6E    SK200-8 SK260-8   SK350-8
For Sumitomo Excavator
SH300 SH60    SH160A1   SH350   SH340    SH430F2    SH200    SH280F2 SH135 SH120 SH220      SH240   SH200-3 SH160F2(60A1)   SH200A2   SH60    SH210-5 SH220-2    SH350-3
For Hyundai Excavator
R60-7   R60-9   R215-7    R200-3   R300-5   R305-7    R405-7    R455-7

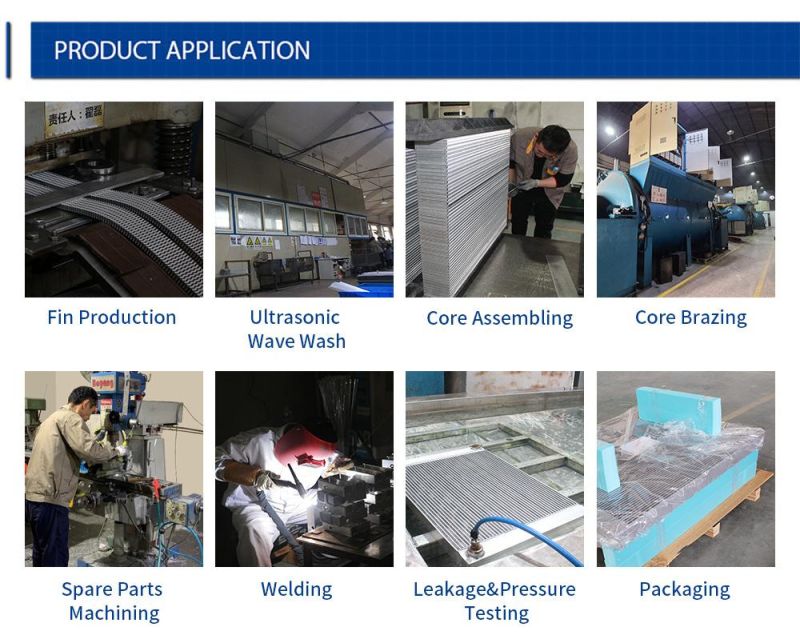

Product Process

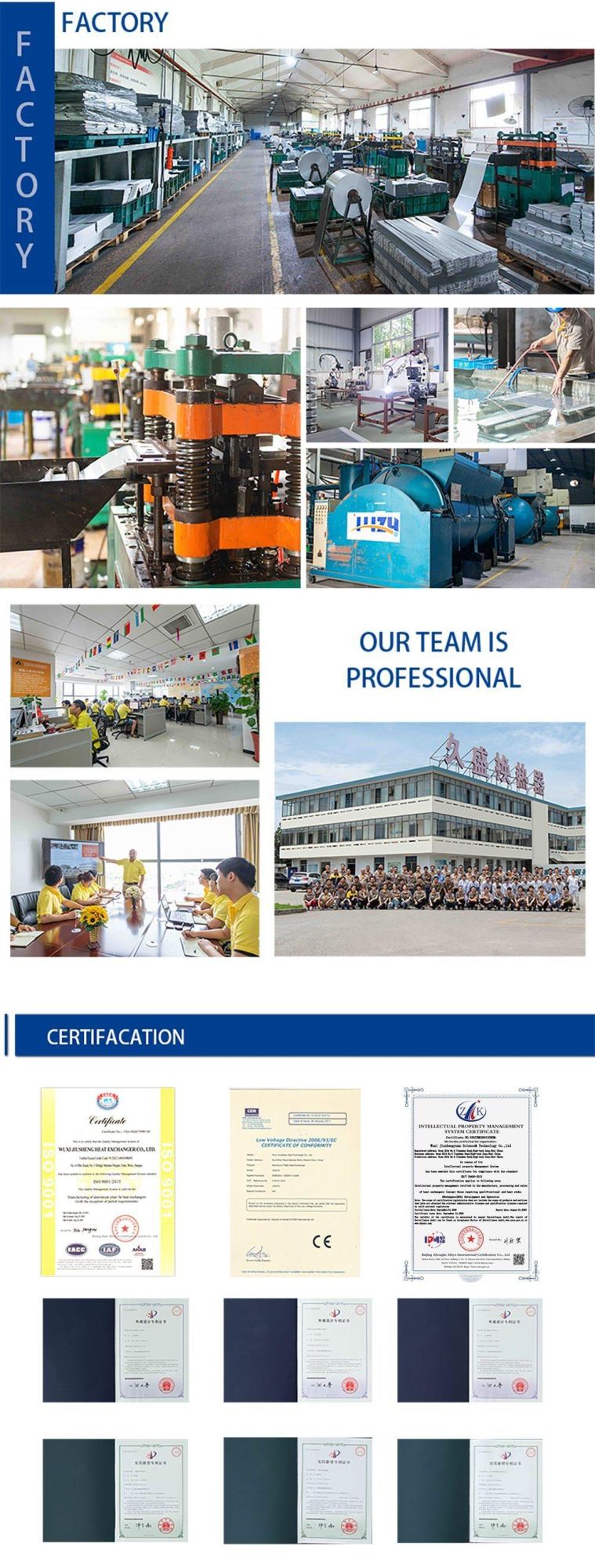

Our Factory
Jiusheng is a professional manufacturer specialized in producing the aluminum plate-fin heat exchanger for many types screw compressors and plate-fin heat exchanger groups for air separation, heat exchangers or hydraulic oil coolers for petroleum and chemical industry, construction and transportation. Our company occupies a total area of 11,600 square meters. Our employees are 105, includeing 8 managers, 6 technicians, 2 senior engineers and 10 technical backbone workers. There are 3 vacuum brazing furnaces, 11 fin special presses and other general machines, and our total equipment are more than 82 sets. Our production capability of aluminum plate-fin beat exchangers is 5,000 tons per year.

Aluminum Plate-Fin Oil Cooler for Komatsu

OUR ADVANTAGE

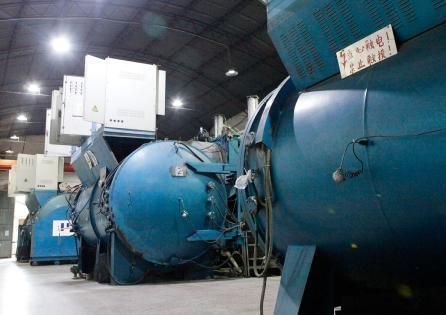

01 VACUUM BRAZING

1.We have professonal qualification certificate of brazing operators.Different products adopt different brazing processes and set corresponding load thermocouples.

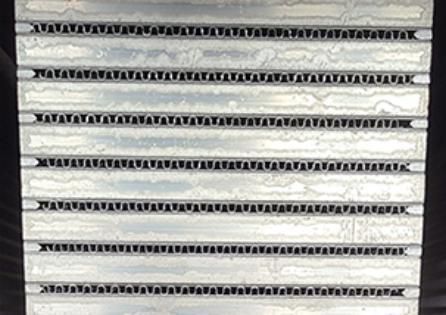

2.The surface of the brazing seam is complete,continuous,uniform and smooth.No solder accumulation,overflow, splashing exist.No unmelted or cracks on the surface.02 ARGON ARC WELDING

1.We have professional qualification certificate for argon welding operators and Welder Skill Matrix.

2.The crater should be filled up and slightly higher than the base metal.The arc crater must not have cracks and shrinkage holes.Backing plate welding is usedfor arc startng and closing.

3.Special processes such as double-sided welding,multi-layer welding,and penetration welding eliminate welding defects and ensure welding quality.

4.The weld surface is straight,beautiful,with uniform scales and uniform height.No surface pores,cracks,obvious bens and serious welds.

5.Develop different standard welding operation onstructions for different products(SOP). Aluminum Plate-Fin Oil Cooler for Komatsu

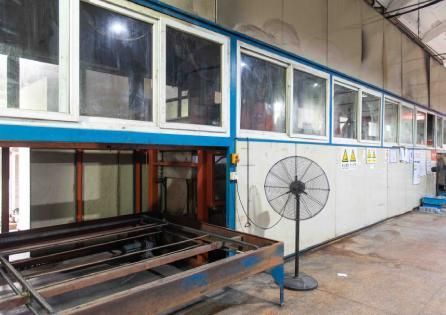

03 CLEANING

Before brazing,in addition to ultrasonic cleaning(removing oil anddust),alkali cleaning and acid cleaning (Remove surface oxide film)are also carried out.04 ASSEMBLY

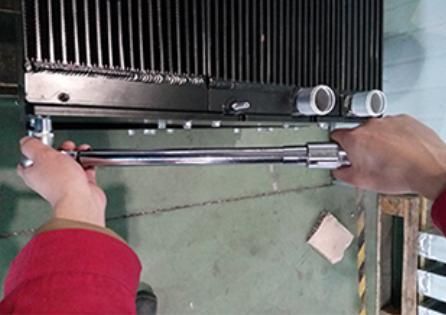

1.Use a torque wrench and use the same force to make the force on all sides even.

2.Hydraulic shaping to ensure the flatness and verticality of the product core.

3.Equipped with welding tooling and inspection tools. Aluminum Plate-Fin Oil Cooler for Komatsu

Aluminum Plate-Fin Oil Cooler for Komatsu

    High effiency and high fiow are the characteristics we have worked hard to obtain.Highly polished end tank ensure the best heat reflection and appearance.

    We have following intercoolers.We are also welcome your own design.pls feel free to contact us if you have any other questions.

Aluminum Plate-Fin Oil Cooler for Komatsu

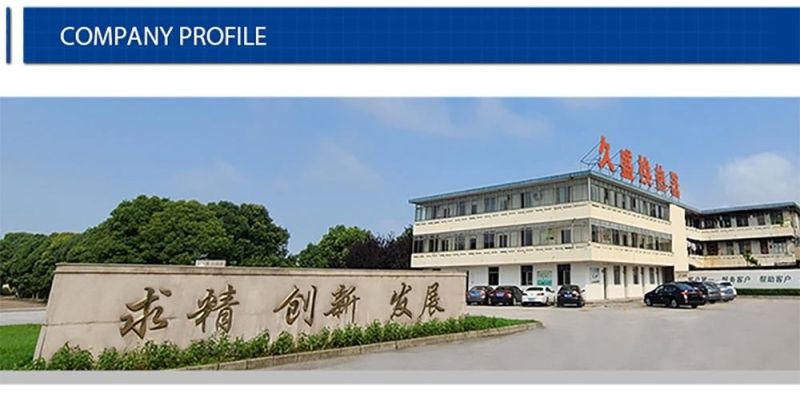

          Our company is a professional manufacturer specialized in producing all kinds of aluminum heat exchangers. Our factory is located on the bank of the Taihu Lake & in the west suburb of Wuxi. Our aluminum plate-fin heat exchangers feature high heating efficiency, small size, light weight and strong applicability. Our products are widely applied in engineering machinery, air compressors, vehicle separation, construction machinery separation, hydraulic transmission oil radiators, wind and electricity, electrical locomotive separation and boat separation as well as many other fields. Our products sell well in France, Germany, Italy, the USA, Canada, Japan, Korea and New Zealand.
