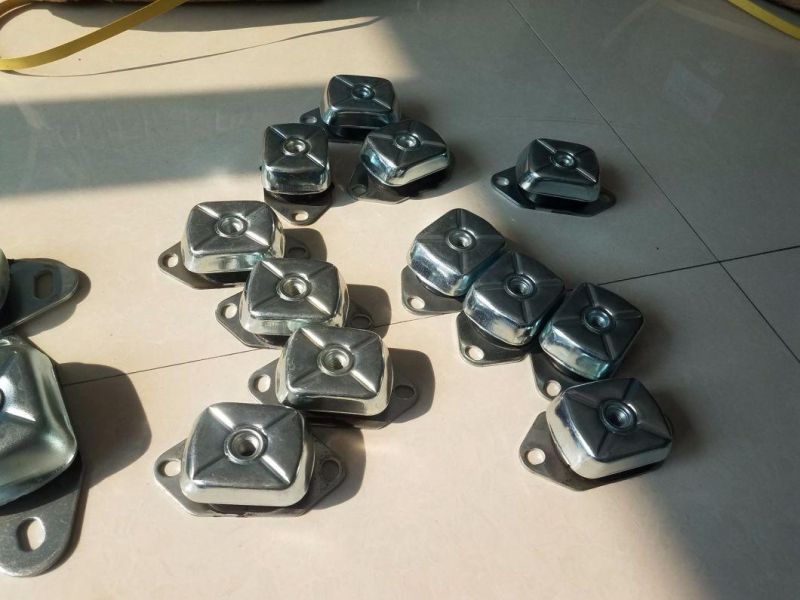

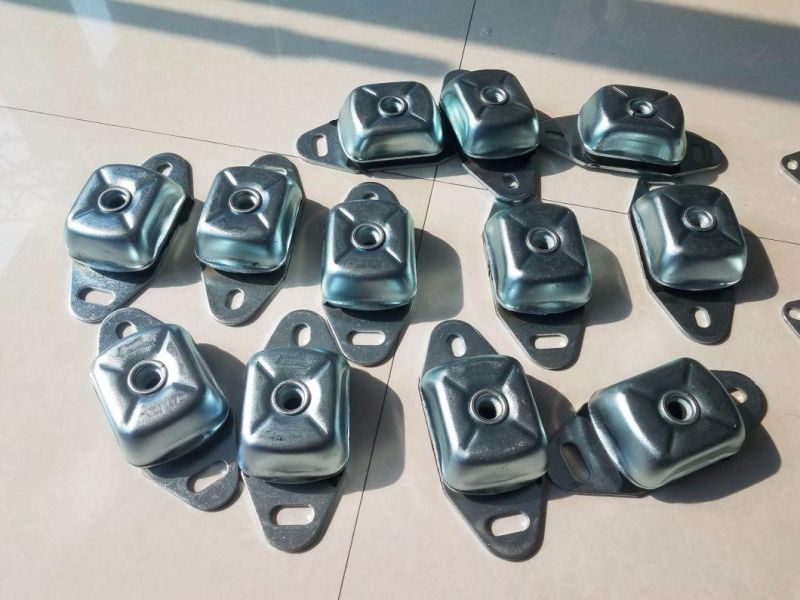

Rubber Mountings, Marine Rubber Mounts, Shock Absorber (3A4010)
Sanhe Bestrubber Import & Export Co., Ltd.- Car Make：Anti-Vibration and Shock Absorption
- Type：Marine
- Body Material：Rubber+Steel
- Component：Shock-reducing Rubber
- Certification：ISO9001
- Shock-reducing Rubber Material：NR
Base Info
- Model NO.：3A4012
- Quality：Industrial Grade
- Colro：Black
- Surface：Smooth
- Tensile Strength：6-8MPa
- Hardness：50-60shore a
- Elongation：350%
- Density：1.4G,Cm3
- Size：Standard Size
- MOQ：100PCS
- Transport Package：Packing in Cartons
- Trademark：3A Rubber
- Origin：China
- Production Capacity：1000000pieces,Month
Description
ItemIRHD Dimensions (mm) Average Load Max Load Max Compression daN/mm A B C P CF L Kg/mm Kgs mm Marine1 8038M12W 45 80 38 60 M12 100 120 9 36 4 Marine1 8038M12K 50 80 38 60 M12 100 120 13 52 4 Marine1 8038M12M 60 80 38 60 M12 100 120 16 64 4 Marine1 8038M12H 70 80 38 60 M12 100 120 24 96 4 Marine2 10450M16XW 35 104 50 78 M16 140 186 16 80 5 Marine2 10450M16W 45 104 50 78 M16 140 186 24 120 5 Marine2 10450M16M 60 104 50 78 M16 140 186 38 190 5 Marine2 10450M16H 70 104 50 78 M16 140 186 60 300 5 Marine2 10450M16XH 80 104 50 78 M16 140 186 95 475 5 Marine3 13271M20W 45 132 112 71 M16 182 230 55 330 6 Marine3 13271M20M 60 132 112 71 M16 182 230 80 480 6 Marine3 13271M20H 70 132 112 71 M16 182 230 135 810 6 Marine3 13271M20XH 80 132 112 71 M16 182 230 220 880 4
