• Model NO.：Gt1749s
• Brand：Booshiwheel
• Part Number：715924-5003s
• Previous Version：715924-0001, 715924-0003, 715924-5001s, 715924-3
• OEM：2820042610, 28200-42610
• Displacement：2.5L, 2476 CCM, 4 Cylinders
• Kw：73,94,101 HP
• Transport Package：Carton
• Specification：6.5kg
• Trademark：Booshiwheel
• Origin：China
• HS Code：8414803090
• Production Capacity：5000

Basic Info.

Model NO. Gt1749s Brand Booshiwheel Part Number 715924-5003s Previous Version 715924-0001, 715924-0003, 715924-5001s, 715924-3 OEM 2820042610, 28200-42610 Displacement 2.5L, 2476 CCM, 4 Cylinders Kw 73/94/101 HP Transport Package Carton Specification 6.5kg Trademark Booshiwheel Origin China HS Code 8414803090 Production Capacity 5000

Product Description

GT1749S turbocharger 715924-0001  28200-42610 715924-5003S 715924-0003 turbo  for Kia Commercial Frontier with 4D56TCI Engine



Welcome to contact us :

November Gao.

Mob/Wechat/WhatsApp: 8618912476630



Product details





Part Number	715924-5003S
Previous Version	715924-0001, 715924-0003, 715924-5001S, 715924-3
OE number	2820042610, 28200-42610
Year	2005-
Description	KIA Pregio, HYUNDAI EURO III Commercial
CHRA	433352-0031 (433352-5031S)(1102017905) $250.00 NEW IN STOCK, MADE IN USA
Turbo Model	GT1749S
Engine	4D56TCI, 4D56TCi Euro-3
Engine Manufacturer	Hyundai
Displacement	2.5L, 2476 ccm, 4 Cylinders
KW	73/94/101 HP
RPM Max	3800
Fuel	Diesel
Angle α (compressor housing)	100º
Angle β (turbine housing)	270º
Bearing Housing	434578-0012 (434578-0014, 435889-0003)(Water Cooled) $69.00 NEW IN STOCK
Turbine Wheel	434714-0021 (434714-0007)(Ind. 43.94 mm, Exd. 37.21 mm, Trm 5.79, 12 Blades)(1102017432, 1100016101) $77.60 NEW IN STOCK
Comp. Wheel	436132-0003 (436132-0014, 436334-0003, 701300-0007, 703925-0003, 703925-0011, 706164-0003)(Ind. 34.67 mm, Exd. 49. mm, Trm 4.47, 6+6 Blades, Superback) $38.40 NEW IN STOCK
Back plate	433294-0002 (433254-0003)(1102015315) $18.55 NEW IN STOCK
Heat shield Number	N/A
Repair Kit	732252-0001 $97.60 NEW IN STOCK
Turbine Housing	452540-0007
Compressor Cover	435791-0106
Turbine Housing AR	0.40
Actuator	432340-0119
Settings Wastegate (pressure)	0.893-0.947/1.160-1.213 bar
Settings Wastegate (lift rod)	1.00/4.00 mm
Gasket (turbine inlet)	210501
Gasket (turbine outlet)	210525
Gasket (oil outlet)	210243
Manufacturer	Honeywell-Garrett

Not interchangeable with -0002, -0004



Applications

Kia Commercial Bongo 3 with 4D56TCI Engine

2005- Kia Commercial Frontier with 4D56TCI Engine

2005- Kia Commercial Pregio with 4D56TCI Engine

Kia Sportage with 4D56TCI Engine

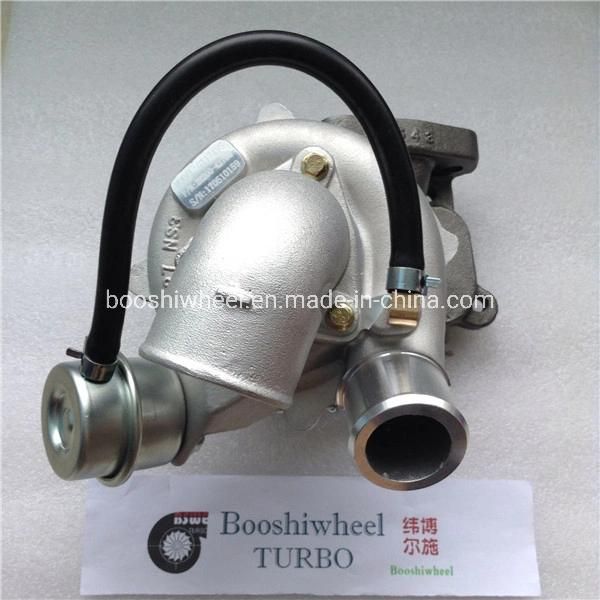

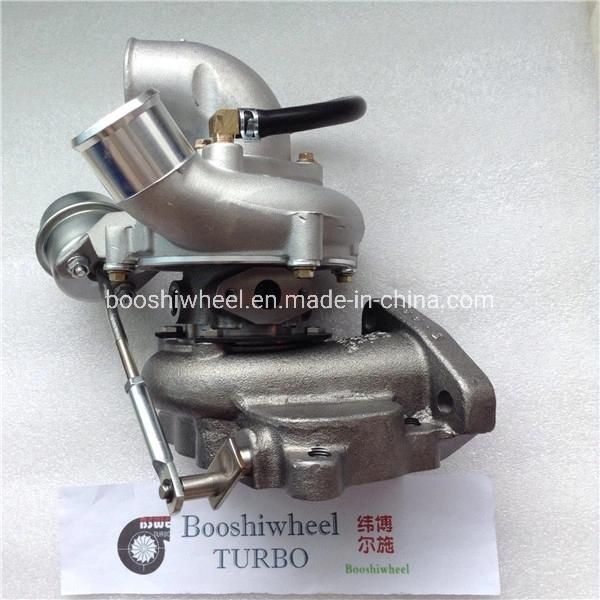

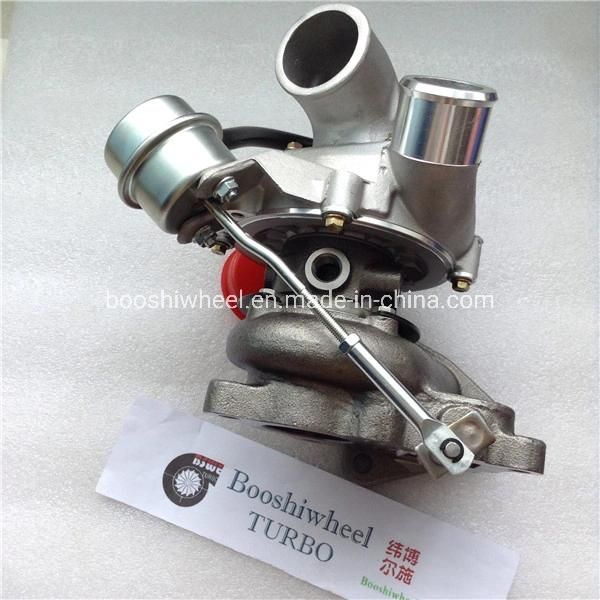

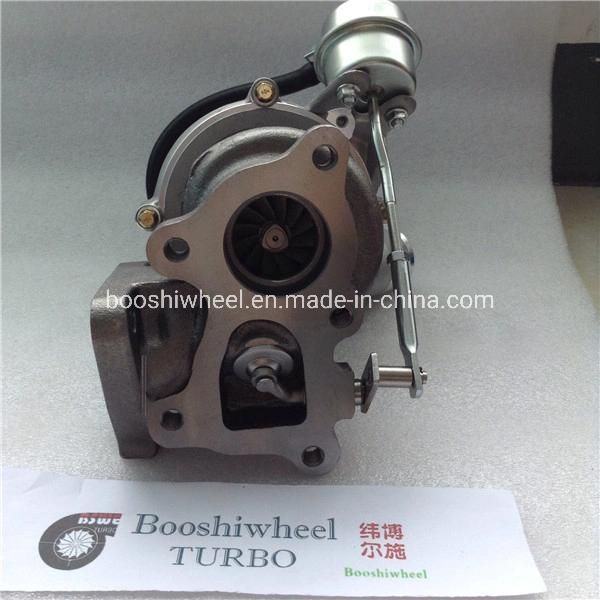

Product show

Packages

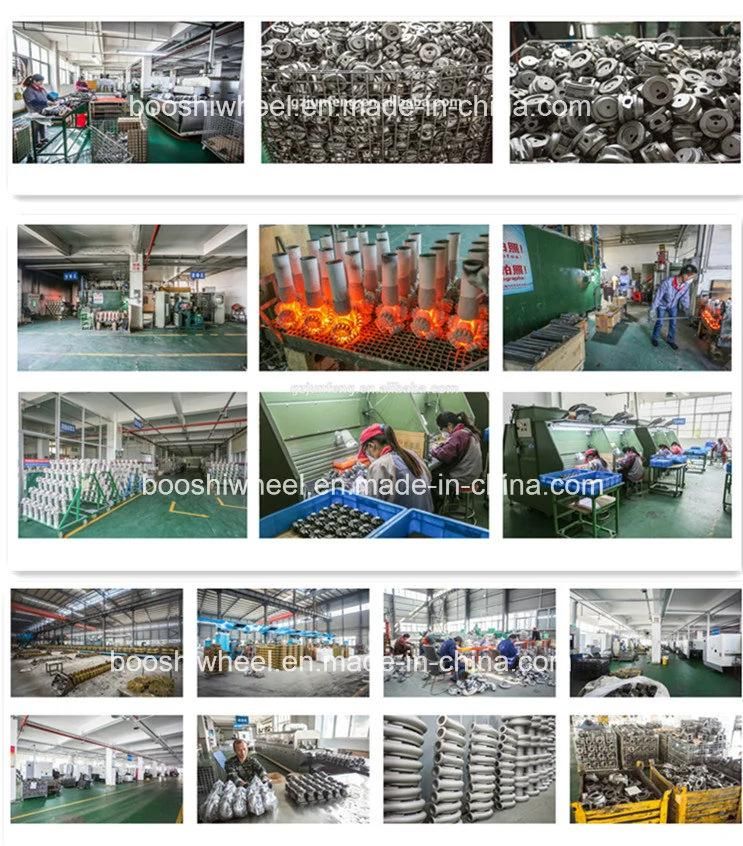

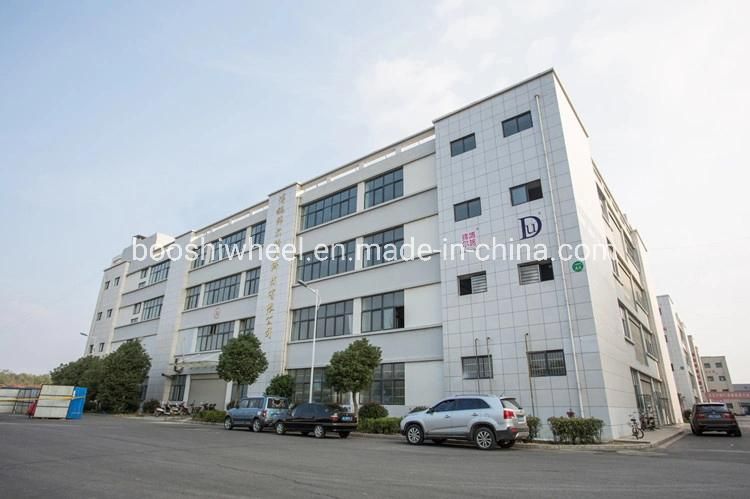

Factory

1.Wuxi  Booshiwheel  Power Technology Co,Ltd. ,specialized in manufacturing turbochargers . Our factory was established in 2003 in Wuxi City .



2.The company has a wide range of products ,including Turbocharger for all types of vehicles, Turbine housing, Compressor housing ,Nozzle ring ,Cartridge,
Actuator ect.

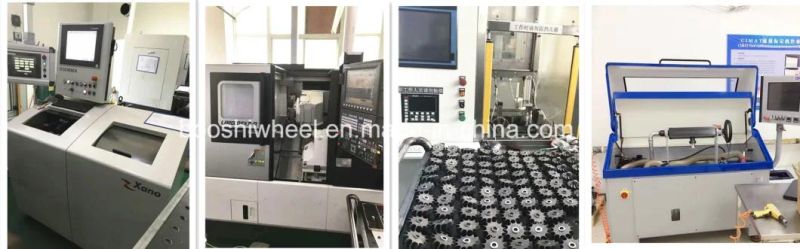

3.The company has imported Japanese advanced equipments,such as assembly line,processing production line and high speed balance,as well as the latest testing
 facilities.

     CVE Electron Beam Welding from UK,

     Studer CNC grinding machine from Switzerland,

     Okuma CNC machine from Japan,

    Schenck balancing machine from Germany.




workshop




1.If sample offered?
Yes.one sample can be offered.Customer pay the sample and transport fee.

2.Delivery time?
Within 7 days.

3.Transport way?
By air or by ship.

4.Payment way?

West union or Company account.TT 100% before sent.
