Tb0227 466856-0003/1 46424102 Turbocharger for FIAT Commercial Strada, Punto TDS, Uno Td Cars 1.7L
Refone Auto Power Co., Ltd.- Type:ETS Exhaust-Gas-Turbo-Super-Charger
- Body Material:Iron
- Certification:ISO9001, CE, CCC
- Electric Turbocharger Type:Axialflow
- ETS Component:Turbine
- ETS Type:Runoff
Base Info
- Model NO.:TB0227
- Application:FIAT
- Brand:Refone
- Turbo Model:Tb0227
- Part Number:466856-5003s, 466856-0002, 466856-0004, 466856-000
- OE Number:46424102, 46234349, 71723573, 46558724, 71793633
- Chra:443854-0119 (43854-5119s)
- Description:Commercial, Cars
- Displacement:1.7L, 1700 CCM, 4 Cylinders
- Engine:M.708.Ht.17.D, 176 A3.000, 176 A5.000, M.708.Ht.17
- Fuel:Diesel
- Kw/Rpm:72,4600
- Transport Package:1. Mold Foam 2. Plastic Bag 3. Strong Carton
- Specification:ISO9001
- Trademark:Refone
- Origin:China
- HS Code:8414803090
- Production Capacity:30000PCS,Year
Description
Basic Info.
Model NO. TB0227 Application FIAT Brand Refone Turbo Model Tb0227 Part Number 466856-5003s, 466856-0002, 466856-0004, 466856-000 OE Number 46424102, 46234349, 71723573, 46558724, 71793633 Chra 443854-0119 (43854-5119s) Description Commercial, Cars Displacement 1.7L, 1700 CCM, 4 Cylinders Engine M.708.Ht.17.D, 176 A3.000, 176 A5.000, M.708.Ht.17 Fuel Diesel Kw/Rpm 72/4600 Transport Package 1. Mold Foam 2. Plastic Bag 3. Strong Carton Specification ISO9001 Trademark Refone Origin China HS Code 8414803090 Production Capacity 30000PCS/YearProduct Description
Tb0227 466856-0003/1 46424102 Turbocharger for FIAT Commercial Strada, Punto TDS, Uno Td Cars 1.7LProduct Description
Part Number | 466856-5003S |
Previous Version | 466856-0002, 466856-0004, 466856-0005 |
OE number | 46424102, 46234349, 71723573, 46558724, 71793633, 46408952 |
Year | Mar-94 |
Description | Commercial, Cars |
Manufacturer Part Number | 54359710014, 54359700014 |
CHRA | 443854-0119 (43854-5119S) $295.00 NEW IN STOCK, MADE IN USA |
Turbo Model | TB0227 |
Engine | M.708.HT.17.D, 176 A3.000, 176 A5.000, M.708.HT.17.D, 176B7.000, 146 D7.000 |
Engine Manufacturer | Fiat |
Displacement | 1.7L, 1700 ccm, 4 Cylinders |
KW/RPM | 72/4600 |
Fuel | Diesel |
Angle α (compressor housing) | 207º |
Angle β (turbine housing) | 268º |
Bearing Housing | 435350-0003 $68.40 (Oil Cooled) NEW IN STOCK |
Turbine Wheel | 435243-0002/435259-0001 (435243-0001/435243-0004/435243-0005/435259-0001/435737-0001/435737-0006) (Ind. 47. mm, Exd. 35.25 mm, Trm 56, 11 Blades) (1100020435) $110.00 NEW IN STOCK |
Comp. Wheel | 410450-0012 (Ind. 48. mm, Exd. 32 mm, Trm 45, 12 Blades) $64.00 NEW IN STOCK |
Back plate | 430735-0001/435350-0003 $18.00 NEW IN STOCK |
Heat shield Number | 445118-0001 $13.84 NEW IN STOCK |
Repair Kit | 709143-0001 (1100025761) $69.00 NEW IN STOCK |
Turbine Housing | 430609-0090 NEW IN STOCK |
Compressor Cover | 409589-0348 NEW IN STOCK |
Housing AR | 0.35 |
Actuator | 430819-0061 NEW IN STOCK |
Settings waste gate (pressure) | 0.780-0.850/0.880-1.000 bar |
Settings Waste gate (lift shaft) | 1.00/4.00 mm |
Gasket (turbine inlet) | 210218 |
Gasket (turbine outlet) | 210802 |
Manufacturer | Honeywell-Garret |
Applications
1994-03 Fiat Commercial Strada with M.708. HT17.2D Engine1994-03 Fiat Punto TDS with M.708.HT17.2D Engine
1988-94 Fiat Uno TD with M.709.BT.13.0.D Engine

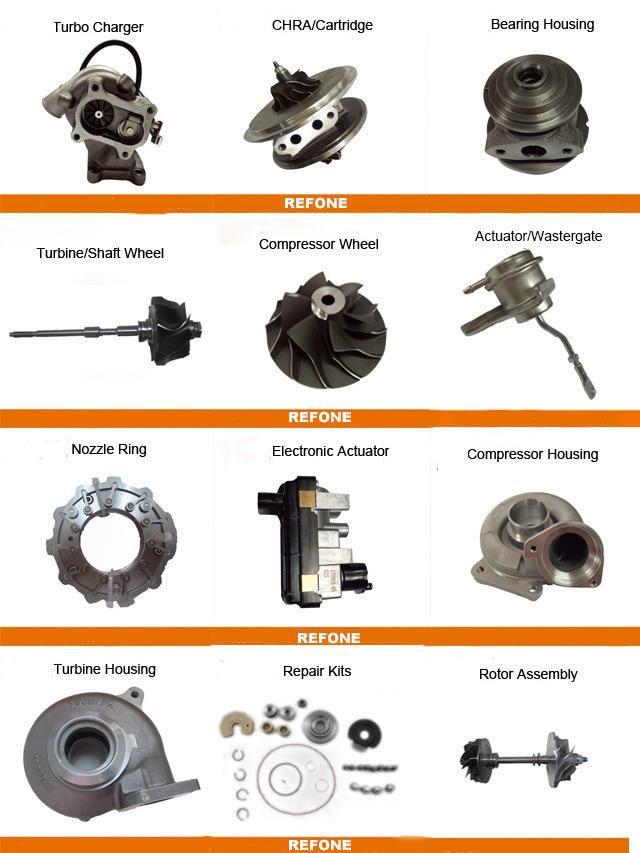

Related Turbo Parts

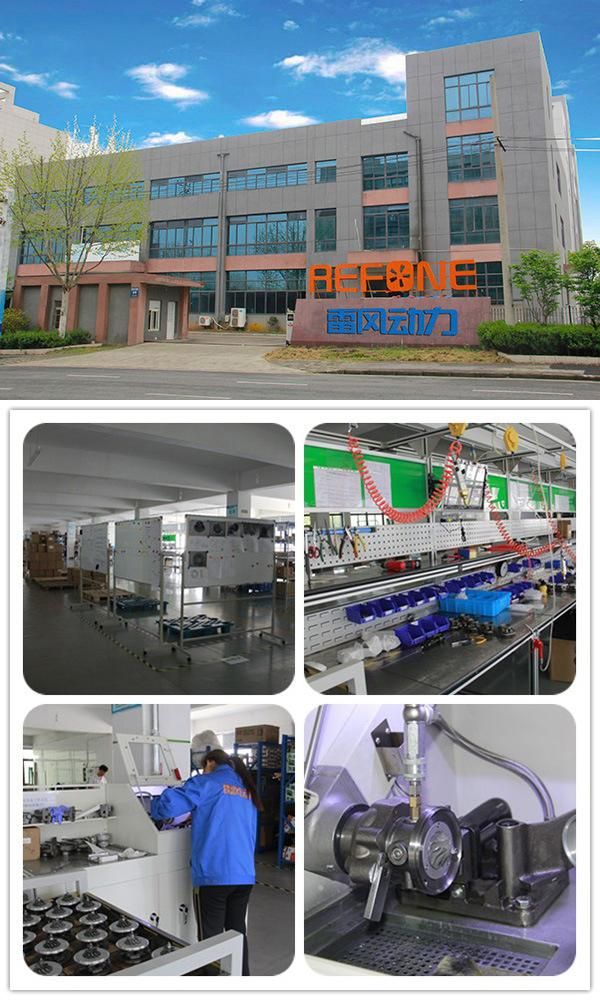

Factory InformationPacking Information
·Inner Packing: Waterproof plastic packing
·Outer Packing: Export carton with cushioning and shockproof packaging
·Customized packing is available
Our Service
- All items are brand new, never been used, still in original packaging.
- Do not hesitate to contact us any time before and after your purchase, we strive our best to provide the most professional customer service.
- Sample order or trial order is acceptable.
- We accept OEM/ODM/Customized service and buyer label offered.
- Professional installation is highly recommended.
- 12 months quality warranty.
Mode of Transport | Delivery time | Weight |
By Sea | about 30-50 days | >1cbm |
By Air | about 1 week | >100kg |
DHL, TNT, FedEx | about 4-7 days | <100kg |
If you need more information, please contact us. Thank you!
